Product details

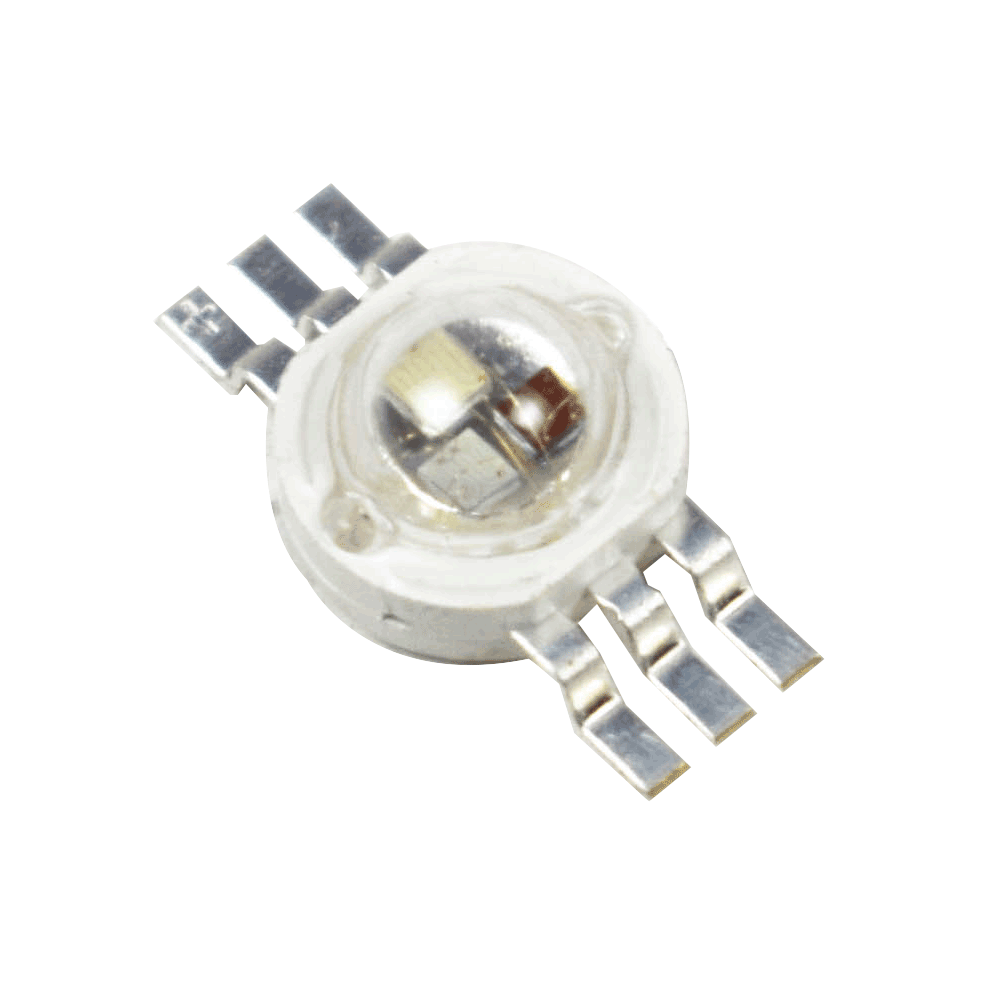

This is a high-quality 9 Watt Red+Green+Blue SMD LED which means each Colour is 3 Watts. It has a total of six pins, two pins for each colour LED. These LEDs consume high power and emit intense bright light. There is a built-in heat sink at the bottom. This Led is suitable for PWM and it is fully dimmable. The LED Bead is the fundamental element of a high-power LED module. The Bead is designed to be mounted to a heat-conducting surface to draw away excess heat from the LED. See our complete assortment of LED Bead aluminium base plates, heat sinks, and accessories. They are extremely bright, and generally produce a wide angle of light disbursement which can be narrowed through the use of an external lens.
Pin Configuration
|
Pin Name |
Description |
|
Three Anodes |
Positive terminals |
|
Three Cathodes |
Negative terminals |
Specifications
| LED Shape | Round |
| Emitting Colour | RGB (3 in 1) |
| Power | 3x3W= 9W |
| Colour Wavelength | Red: 620nm, Green: 520nm, Blue: 460nm (Approx) |
| Operating Voltage | 2.4V-3.6V DC |
| Lead Pin Distance (Pitch) | 1.5mm |
| Lead Pin Material | Copper |
| LED Type | SMD |
| Quantity | 1000 |
| Country of Origin | China |
