Product details

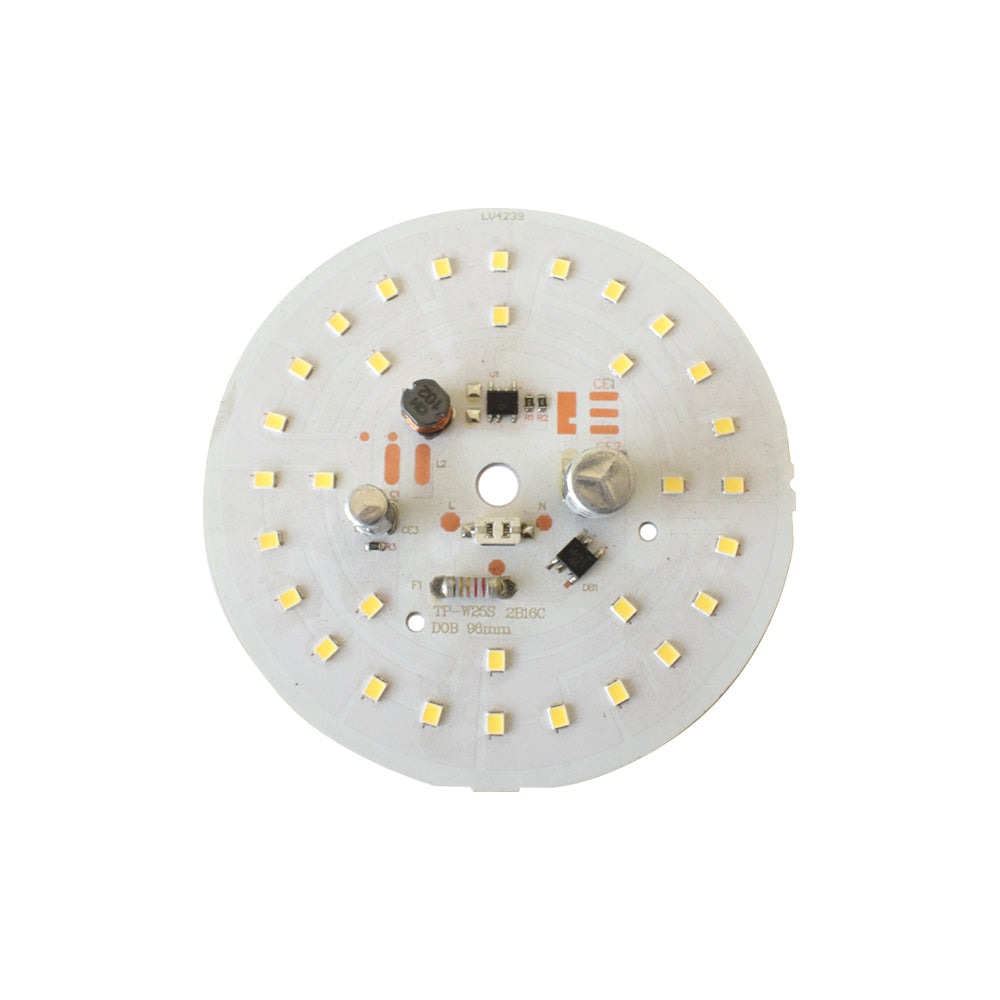

It’s a DOB LED PCB its operating voltage is 220V AC, its connector is a line and neutral, Its power is 30W, it is 96mm DOB; the no of ICs it has 2. DP951 is an 8SOP. ABS10JQG is an IC. A bridge rectifier is used to rectify the AC signal to the DC signal. This IC’s operating current is 1A. The no of pins it has 4, and Polarity has marked on this IC. It has 2, 10Microfarad capacitors to store energy temporarily. It has a connector to connect the wire.
Components: DP951, ABS10JQG, 2,10 microfarad Capacitor, Connector, LED. Resistor.
Applications:
- Its mainly used in decorative products
- It’s used in home decor LEDs
- It’s used in traffic LED
- Headlight
- Street lights
Features:
- Direct AC Source
- It has a total of 32 LED
- It does not need any external driver circuit
- It has an inbuilt driver IC
Specifications:
| Type | DOB LED PCB |
| Input Voltage | 220VAC |
| No of LEDs | 32 |
| Colour | White |
| LED Diameter | 96mm |
| Power | 30W |
| Wire Mounting Diameter (Small hole) | 3.1mm |
| Mounting Diameter of (large Hole) | 7.1mm |
| Thickness | 15.5mm |
| Connection Point | Line and Neutral |
| No. of Connecting Point | 02 |
| Country of Origin | China |
