Product details
This is a High-Quality 9V 1W Amber Colour SMD LED in a 2835 Package. These LEDs consume high power and generally produce a wide angle of light disbursement which can be narrowed through the use of external lenses. The Forward Voltage is 8.8-9.2 volts and the Forward Current is 100mA.
SMD LEDs are substantially smaller than lead frame-type components, they can be used on smaller boards, with higher packing density, less storage area, and smaller equipment. Just like the other LED SMD LED has two pins, an anode and a cathode for powering the LED. The most common application of these LEDs is as Home and Office Lighting Products, etc.
Pin Configuration
Pin Name |
Description |
Anode |
Positive terminal |
Cathode |
Negative terminal |
Caution
- Recommended Storage Condition:
At 5°C ~30°C and Relative humidity of 60% RH max.
- After this bag is opened, devices that will be applied to infrared reflow, vapour-phase reflow, or equivalent soldering process must be:
a. Completed within 24 hours.
b. Stored at less than 30% RH.
- Devices require baking before mounting, if:
2a or 2b is not met.
- If baking is required, devices must be baked under the below conditions:
12 hours at 65°C ±3°C.
Specifications
Brand | NSEE |
Product |
2835 1W Amber LED |
Power Consumption |
1 Watt |
Led Shape |
Rectangle |
Colour |
Amber |
Colour Temperature(CCT) |
590-595K |
Forward Voltage(VF) |
8.8 – 9.2 V |
Forward Current(IF) |
100mA |
Lumens(LM) | 90-100 |
Mounting |
SMD |
Dimensions(LxB) | 3.5mm x 2.8mm |

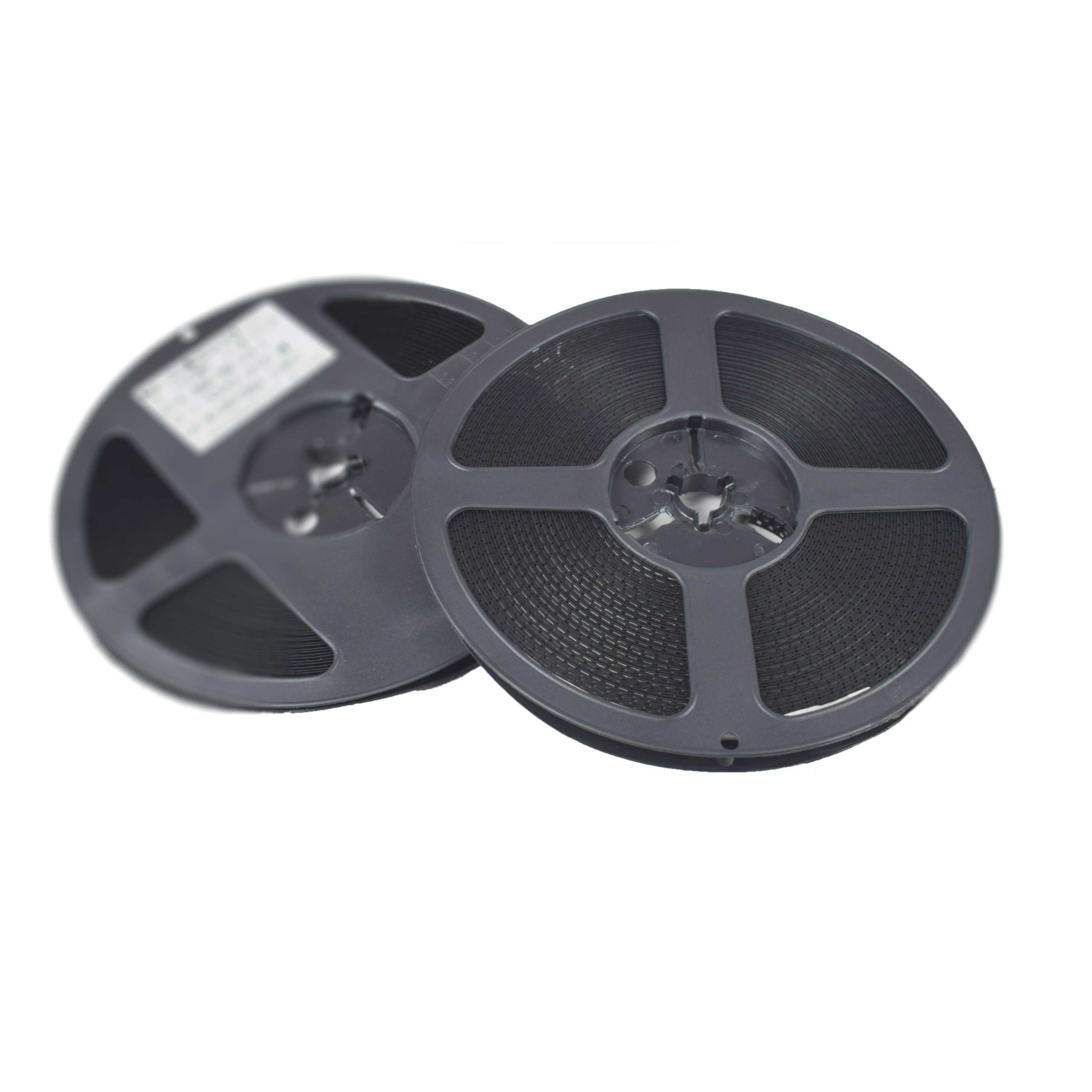

Quantity | Pack of 8000Pcs in Package |
Country of Origin | China |
