Adafruit Circuit Playground Bluefruit – Bluetooth Low Energy
₹2,999.00
- nRF52840 Cortex M4
- 2 MB of SPI Flash storage
- VDC-3-6
- MicroUSB port bootloader and serial port debugging
Did you like this product? Add to favorites now and follow the product.
+91-7231900002 Connect on Whatsapp
Description

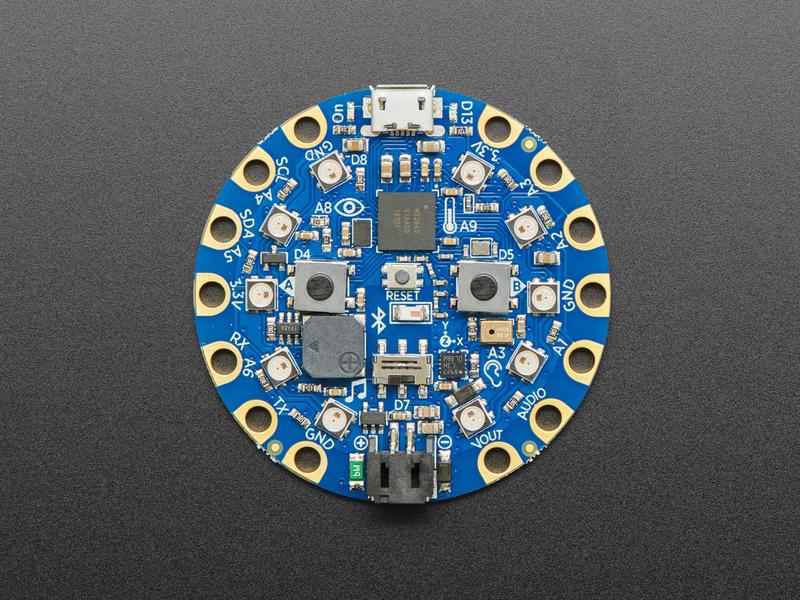

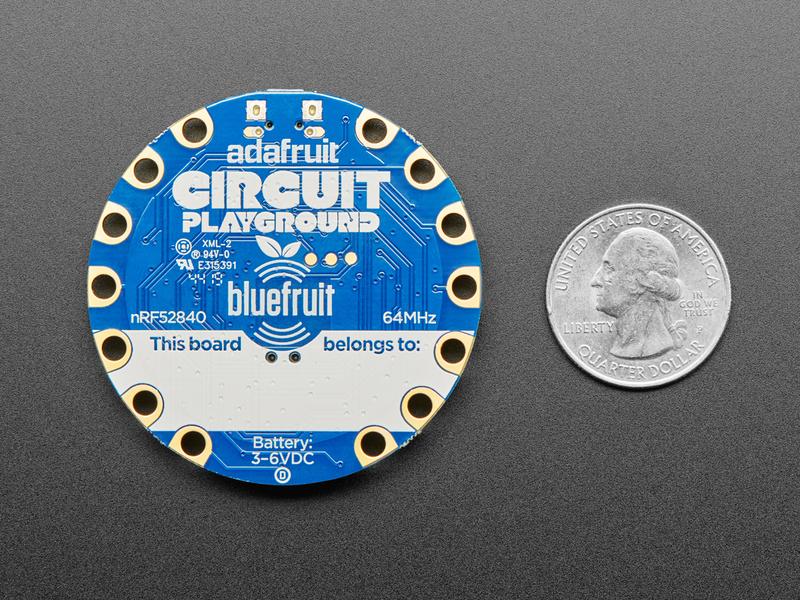

Circuit Playground Bluefruit is our third board in the Circuit Playground series, another step towards a perfect introduction to electronics and programming. We’ve taken the popular Circuit Playground Express and made it even better! Now the main chip is an nRF52840 microcontroller which is not only more powerful, but also comes with Bluetooth Low Energy support for wireless connectivity.
The board is round and has alligator-clip pads around it so you don’t have to solder or sew to make it work. You can power it from USB, a AAA battery pack, or with a Lipoly battery (for advanced users). Circuit Playground Bluefruit has built-in USB support. Built in USB means you plug it in to program it and it just shows up, no special cable or adapter required. Just program your code into the board then take it on the go!
You can use this board with Arduino or CircuitPython – It does not support MakeCode at this time (there is no ETA when it might be added)
Features:
- 1 x nRF52840 Cortex M4 processor with Bluetooth Low Energy support
- 10 x mini NeoPixels, each one can display any color
- 1 x Motion sensor (LIS3DH triple-axis accelerometer with tap detection and free-fall detection)
- 1 x Temperature sensor (thermistor)
- 1 x Light sensor (phototransistor) (can also act as a color sensor and pulse sensor)
- 1 x Sound sensor (MEMS microphone)
- 1 x Mini speaker with class D amplifier (7.5mm magnetic speaker/buzzer)
- 2 x Push buttons, labeled A and B
- 1 x Slide switch
- 8 x alligator-clip friendly input/output pins
- Includes I2C, UART, 6 pins that can do analog inputs and multiple PWM outputs
- Green “ON” LED, so the user knows it is powered
- Red “#13” LED for basic blinking
- Reset button
- 2 MB of SPI Flash storage, used primarily with CircuitPython to store code and libraries
- MicroUSB port for programming and debugging
- The USB port can act like serial port, keyboard, mouse, joystick or MIDI
Package Includes:
1 x Adafruit Circuit Playground Bluefruit
Additional information
| Model | nRF52804 |
|---|---|
| Operating Voltage (VDC) | 3 ~ 6 |
| Clock Speed | 64MHz |
| USB | MICRO USB |
