Product details

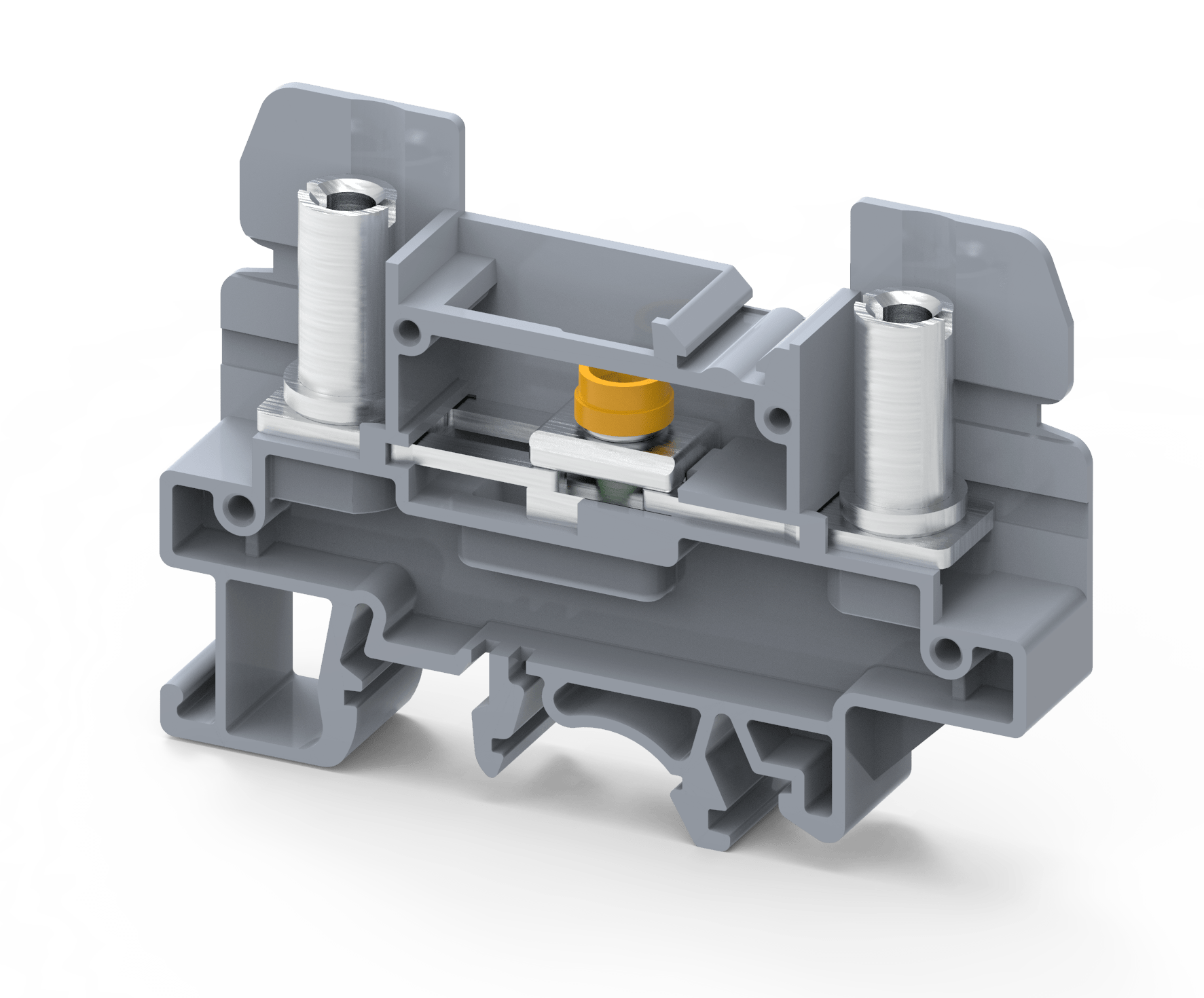

The Connectwell CDL4UN(I.S) 4 sq. mm 2 Level Screw Clamp Internally Shorted Terminal Blocks. In the CDL4UN(I.S) Terminal Blocks, both levels are internally shorted. These blocks are useful for distribution applications with the aid of shorting links at the lower level.
Specifications
|
Related voltage |
800V |
|
Rated Current |
32A |
|
Tightening Torque |
0.5 Nm |
| Housing Material |
Polyamide |
| Product Function |
Double Level |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M3 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
8 KV |
|
Pollution Degree |
3 |
Dimensions
|
Height with DIN 32 rail |
64.5mm |
| Height with DIN 35 * 15mm rail |
67.2mm |
|
Height with DIN 35 * 7.5mm rail |
59.5mm |
|
Length |
57mm |
|
Width(Thickness) |
6mm |
| Country of Origin | China |
