Product details

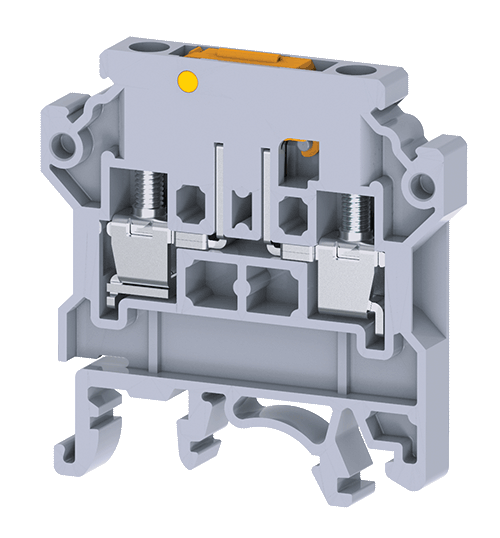

The Connectwell CKT4U is a 4 sq. mm Knife Type Disconnect & Test Screw Clamp Terminal Blocks in grey color. These blocks are used to test control and regulatory circuits. They clearly provide a functional advantage for devices with utility instruments and associated transformers. Disconnection in CKT4U is accomplished by lifting a lever that operates the knife contact. In disconnecting and testing Terminal blocks, specially designed socket-headed screws serve as test monitoring points.
Specifications
|
Rated Voltage |
800V |
|
Rated Current |
28A |
|
Tightening Torque |
0.5 Nm |
|
Housing Material |
Polyamide |
|
Product Function |
Sliding-Type Disconnect and Test |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibility |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M3 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
8 KV |
|
Pollution Degree |
3 |
Dimensions
|
Height with DIN 32 rail |
54.5 mm |
|
Height with DIN 35 x 15 mm rail |
56 mm |
|
Height with DIN 35 x 7.5 mm rail |
48.3 mm |
|
Length |
46.3 mm |
|
Width (Thickness) |
6 mm |
| Country of Origin | China |
