DFRobot Gravity Alcohol Sensor (0-5ppm)

SKU: rz24315505
In Stock

2,999.00

  1. Operating Voltage: 3.3~5.5V DC.
  2. Power: 0.05W(5V).
  3. Signal Output: I2C, UART(0~3V).
  4. Factory calibrated, accurate data
  5. High sensitivity, low power
  6. Stable performance, anti-interference
  7. I2C and UART outputs
In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

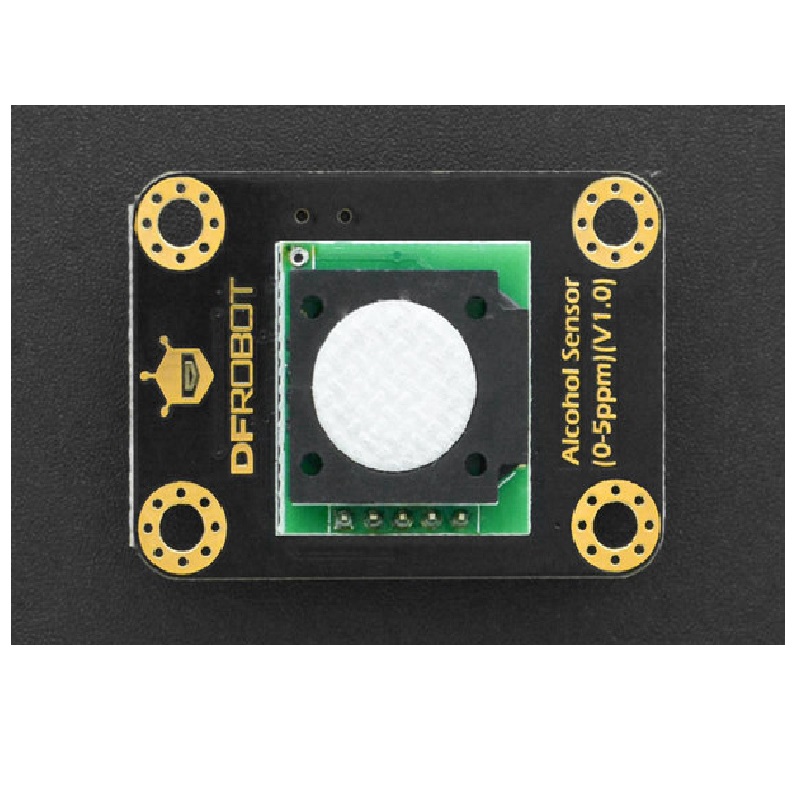

This is an Arduino compatible alcohol sensor module from DFRobot with a 0-5ppm measuring range, supporting I2C and UART outputs. Aiming at fast and accurate detection of alcohol gas concentration in the air, the sensor is well applicable to the small alcohol concentration measurement in the breathalyzer, smart vehicle, and so on. Based on the electrochemistry principle, this alcohol sensor has been calibrated before the factory. It is characterized by strong anti-interference, high stability, and sensitivity and up to 2 years of service life. The module supports 0.01ppm(10ppb) resolution and 3.3~5.5V wide-range voltage input and works well with mainstream controllers like ArduinoESP32, and Raspberry Pi. With the easy-to-use Gravity interface and the sample program provided by us, you can conveniently build your alcohol concentration detector using this sensor.


Features:

  1. Detected Gas: alcohol.
  2. Interfering Gas: benzene(C6H6), toluene(C7H8), acetic acid(CH3COOH), hydrogen sulfide(H2S), carbon monoxide(CO).
  3. Factory calibrated, accurate data
  4. High sensitivity, low power
  5. Stable performance, anti-interference
  6. I2C and UART outputs
  7. Excellent linear output
  8. Long service life
  9. Compatible with 3.3~5V controllers
  10. Reverse-connection protection

Specifications:

  1. Operating Voltage: 3.3~5.5V DC.
  2. Power: 0.05W(5V).
  3. Signal Output: I2C, UART(0~3V).
  4. Response Time: ≤60s.
  5. Measuring Range: 0~5ppm.
  6. Resolution: ≤0.01ppm(10ppb).
  7. Preheat Time: ≤3min.
  8. Recover Time: ≤60s.
  9. Operating Temperature: -20~50℃.
  10. Operating Humidity: 15~90%RH (No condense).
  11. Storage Temperature: 0~25℃.
  12. Service Life: >2 years(In the air).

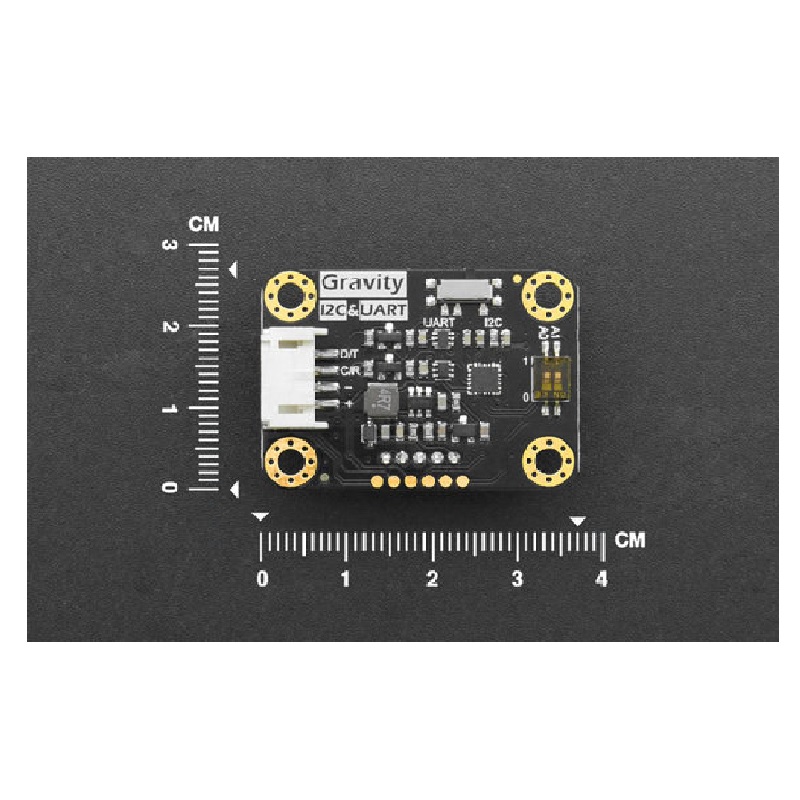

  13. Board Dimension: 27mm×37mm/1.06×1.46″.

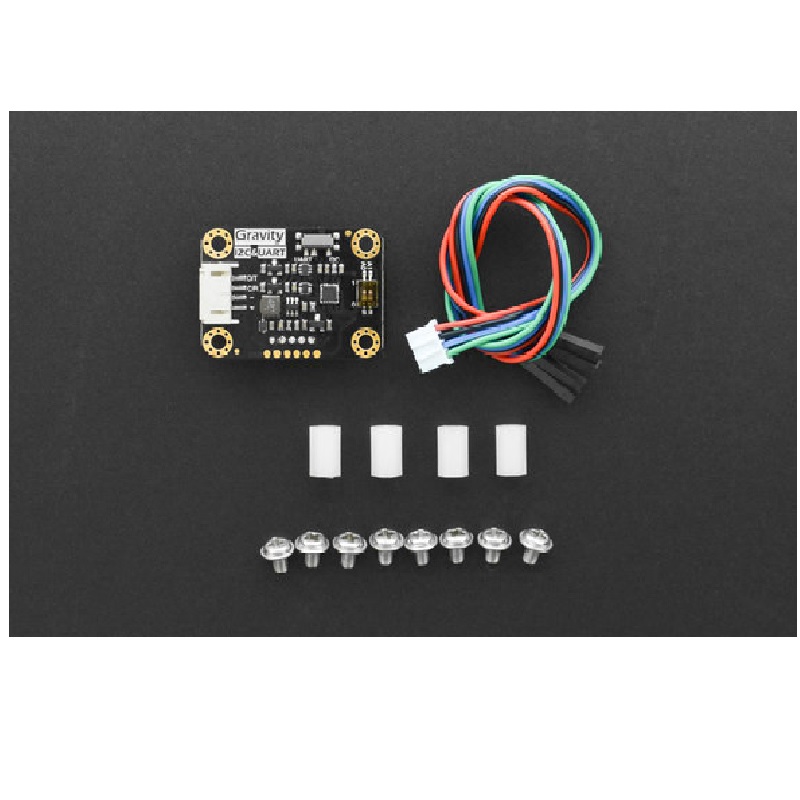

Packages Includes:

1 x DF Robot Gravity Alcohol Sensor (0-5ppm).
