DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer Sensor (?2g/?4g/?8g/?16g)

SKU: 1073435
In Stock

429.00

  1. Operating Voltage: 3.3V~5V
  2. Operating Current: 8~10uA
  3. Interface: Gravity-I2C
  4. I2C Address: 0x19 (default) / 0x18 (optional)
  5. User-selectable Scale: ±2g/±4g/±8g/±16g
  6. Operating Temperature: -40℃~+85℃
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

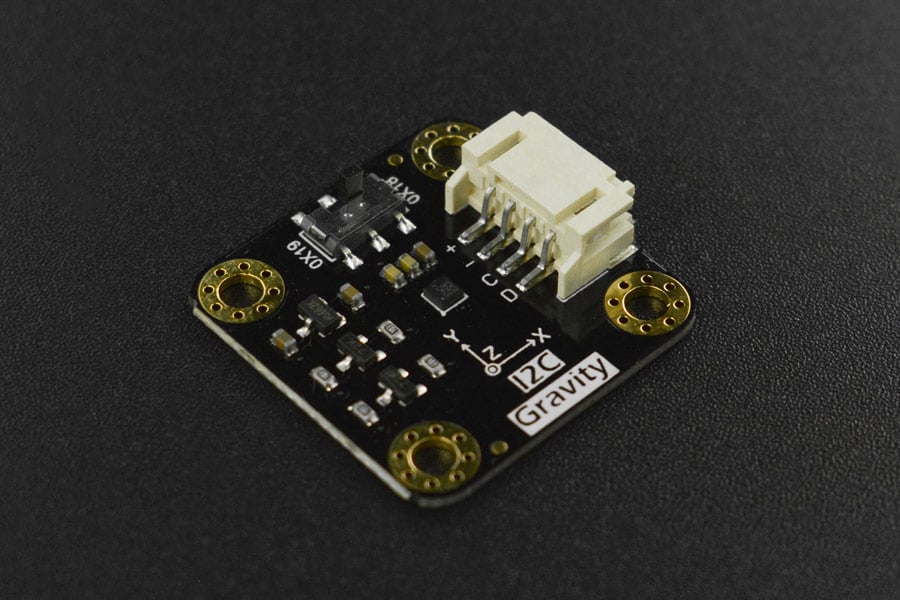

The DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer Sensor is an ultra-low-power high-performance three-axis linear accelerometer. It has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz.

The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wake-up for smart power saving, etc. And for your convenience, we provide you with sample programs for the above functions.


Features:

  1. User-selectable scale: ±2g/±4g/±8g/±16g
  2. 16-bit data output
  3. Easy-to-use Gravity interface, no need to solder

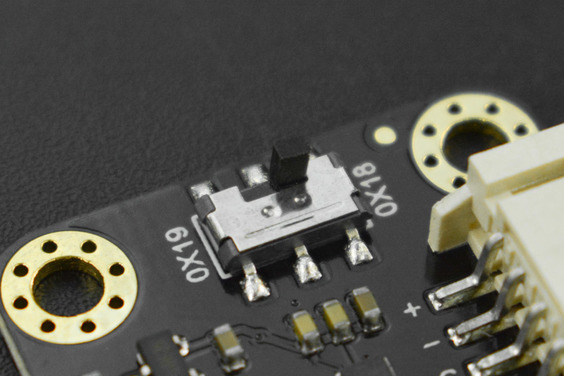

  4. Change I2C address by the toggle switch

Specifications:

  1. Operating Voltage: 3.3V~5V
  2. Operating Current: 8~10uA(low-power & low-noise mode)/0.12mA(high performance mode)
  3. Interface: Gravity-I2C
  4. I2C Address: 0x19 (default) / 0x18 (optional)
  5. User-selectable Scale: ±2g/±4g/±8g/±16g
  6. Operating Temperature: -40℃~+85℃
  7. Frequency: 1.6Hz~1600Hz
  8. Ultra-low Noise: 1.3mgRMS(low power mode)
  9. 16-bit Data Output
  10. 32-Level FIFO(First-in first-out buffer zone)
  11. Sleep to Wake-up Function
  12. 10000g High Shock Survivability
  13. ECOPACK, RoHS and “Green” Compliant

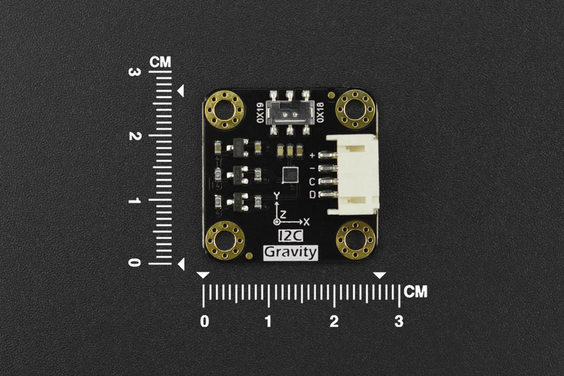

  14. Module Size: 27*27mm/1.06*1.06
  15. Mounting Hole Size: inner 3.1mm/outer 6mm

Useful Links:

Product wiki

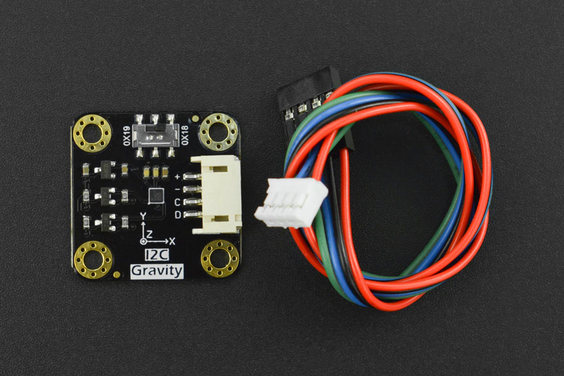

Package Includes:

1 x Gravity: I2C LIS2DW12 Triple Axis Accelerometer Sensor

1 x Gravity-4P I2C/UART Sensor Connector

Additional information

Operating Voltage(V)

3.3 to 5

Working Current(uA)

8~10

Interface Type

I2C

Frequency Range

1.6Hz~1600Hz

Operating Temperature Range (°C)

-40 to 85

Length (mm)

27

Width (mm)

27
