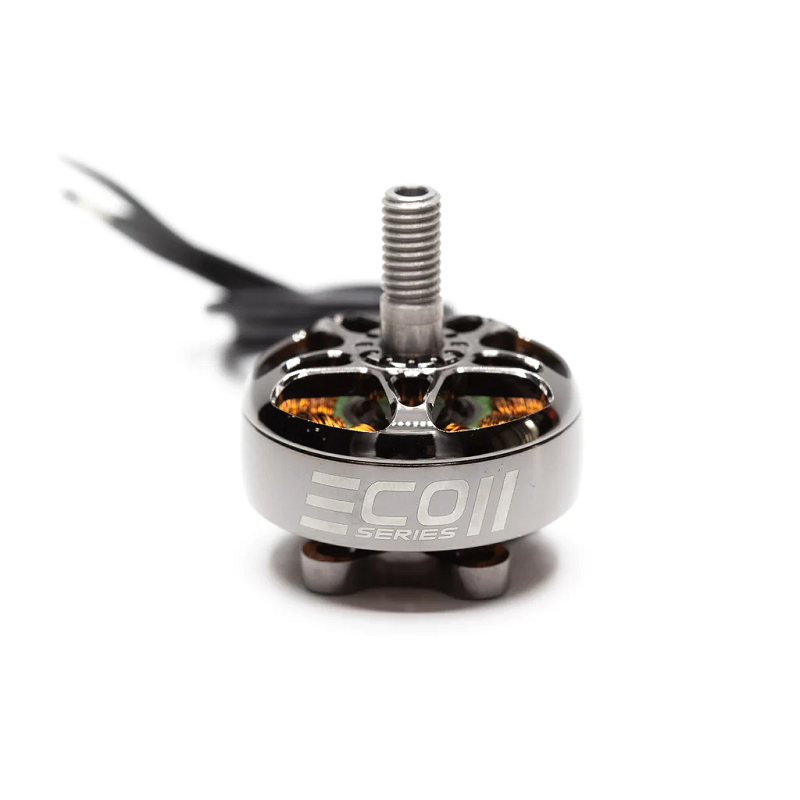

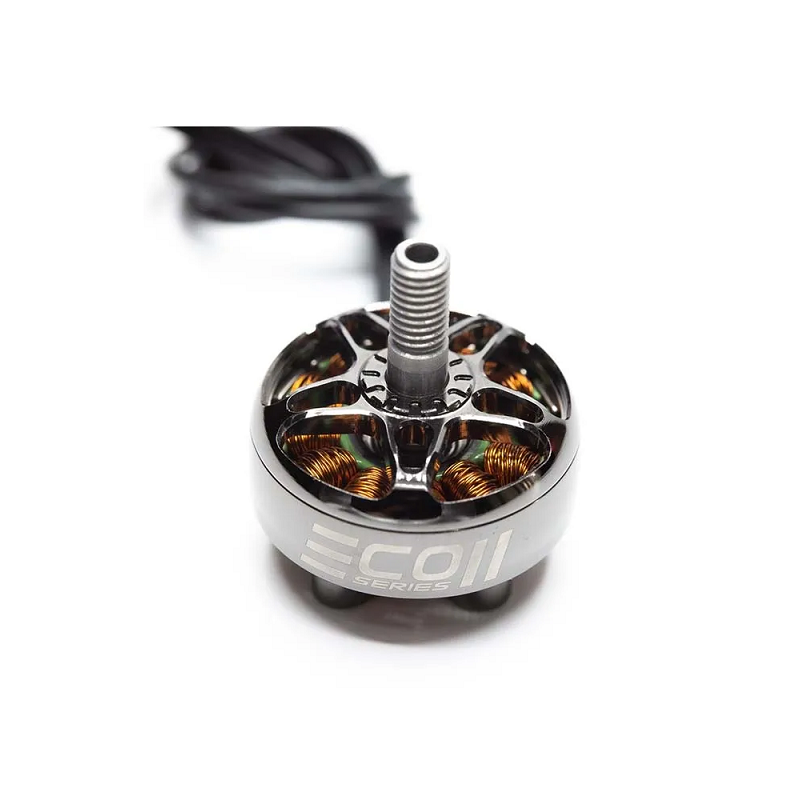

Emax ECOII-2306-1700KV Brushless Motor

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on performance and durability while retaining the same affordability. Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved.

Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability. In order to improve the performance from its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.

Features:

1. Precision bearing
2. Steel shaft
3. Anodizing

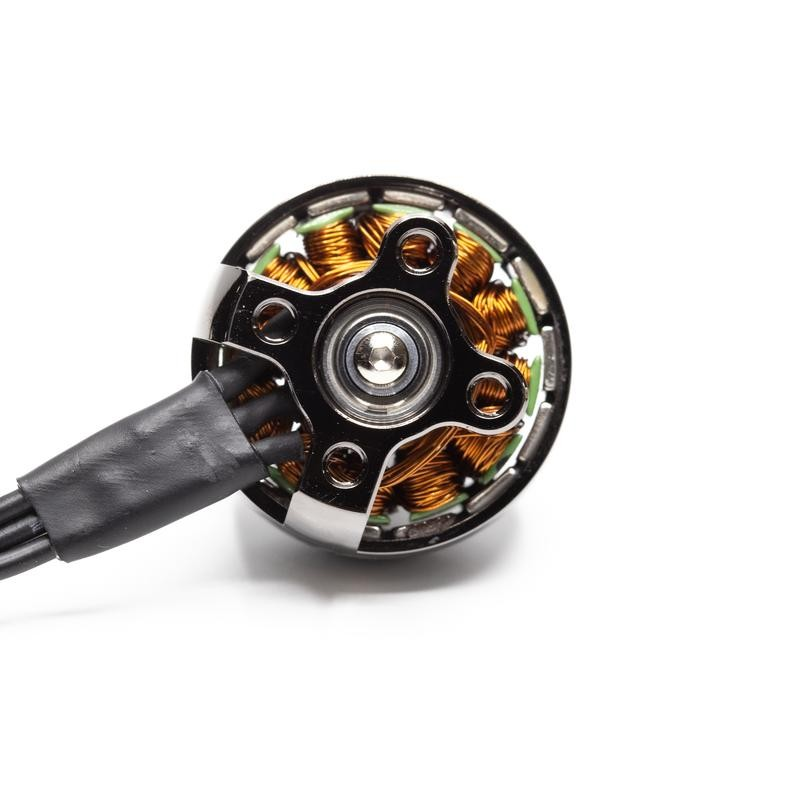

4. 16*16mm hole pattern
5. Multi-strand winding .
6. 120mm 20 AWG silicone wire

Specifications:

1. Motor: 1700kv
2. Framework: 12N14p
3. Length:31.5mm
4. Diameter: 28mm
5. No of Cells 3-6s
6. Max Thrust:5″-5.5″
7. Weight:30.4g(w/o silicone wire)
8. Prop Adapter Shaft Thread: M5

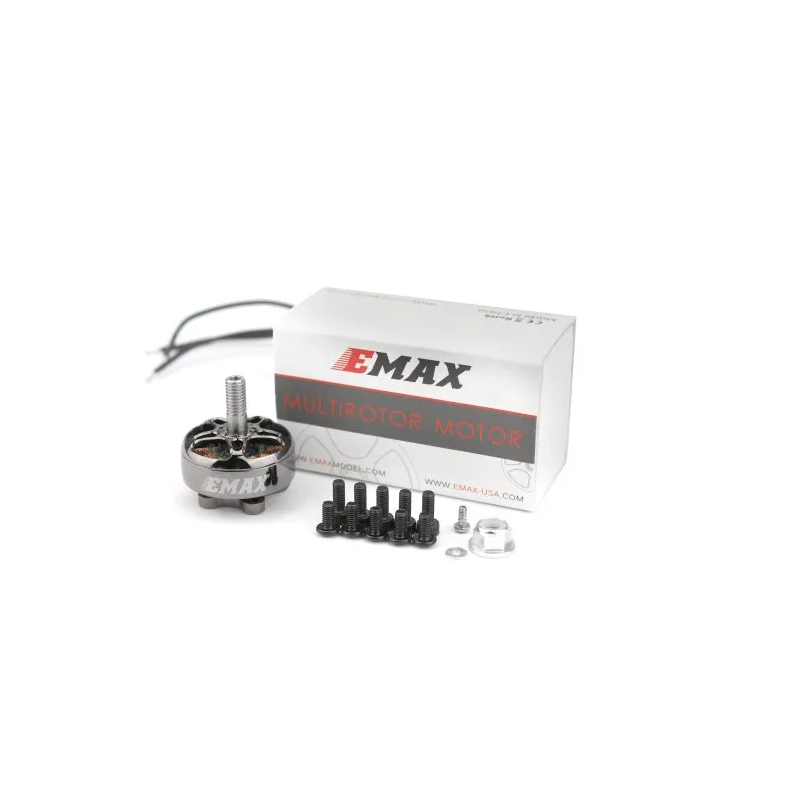

Package Includes:

5 X M3x8mm Screw

5 X M3x7mm Screw

5 X M3x6mm Screw

1 X Aluminium M5 nylock nut

1 X Washer and screw for shaft
