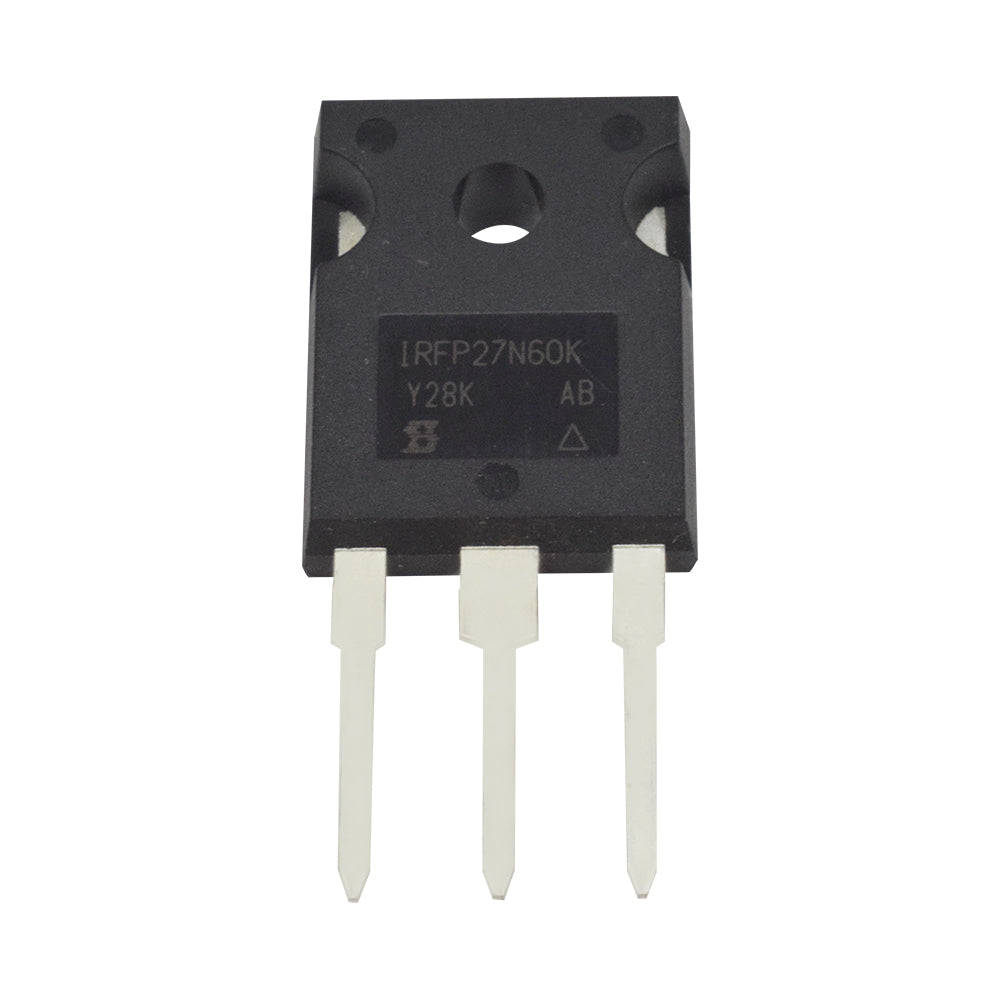

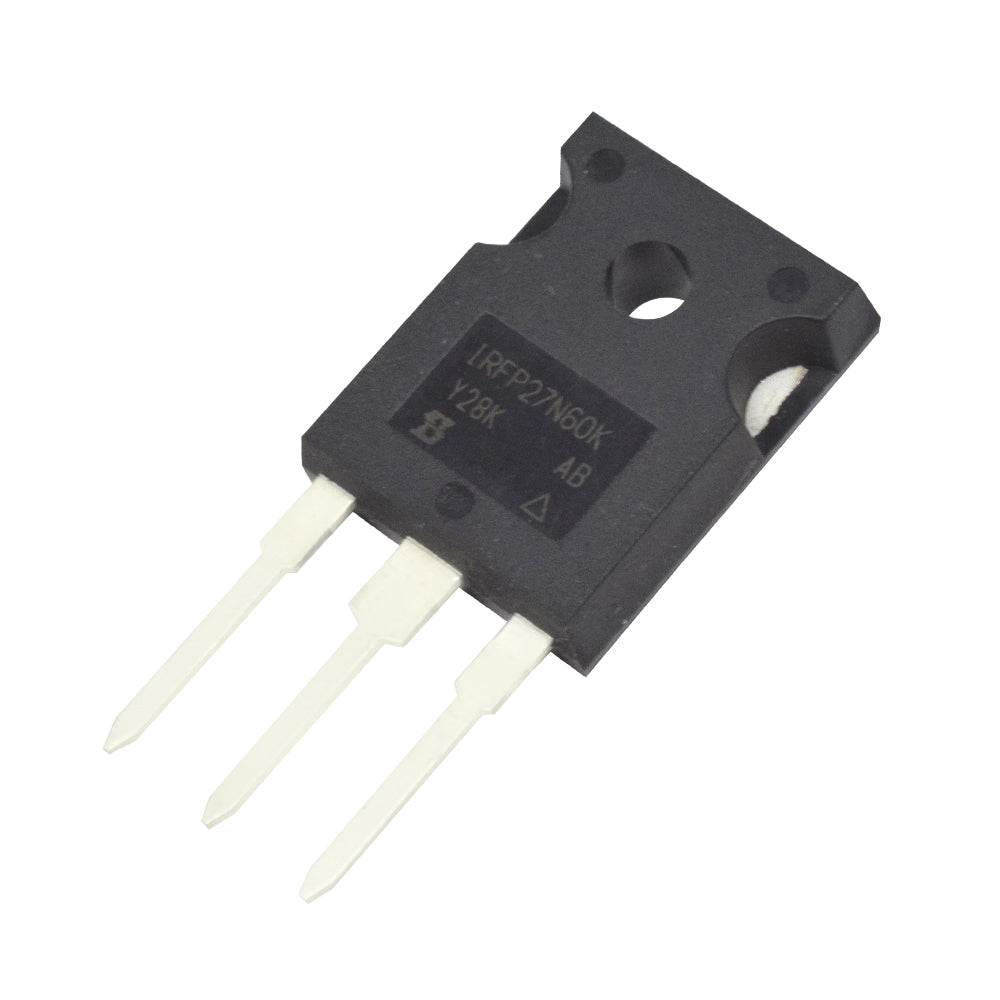

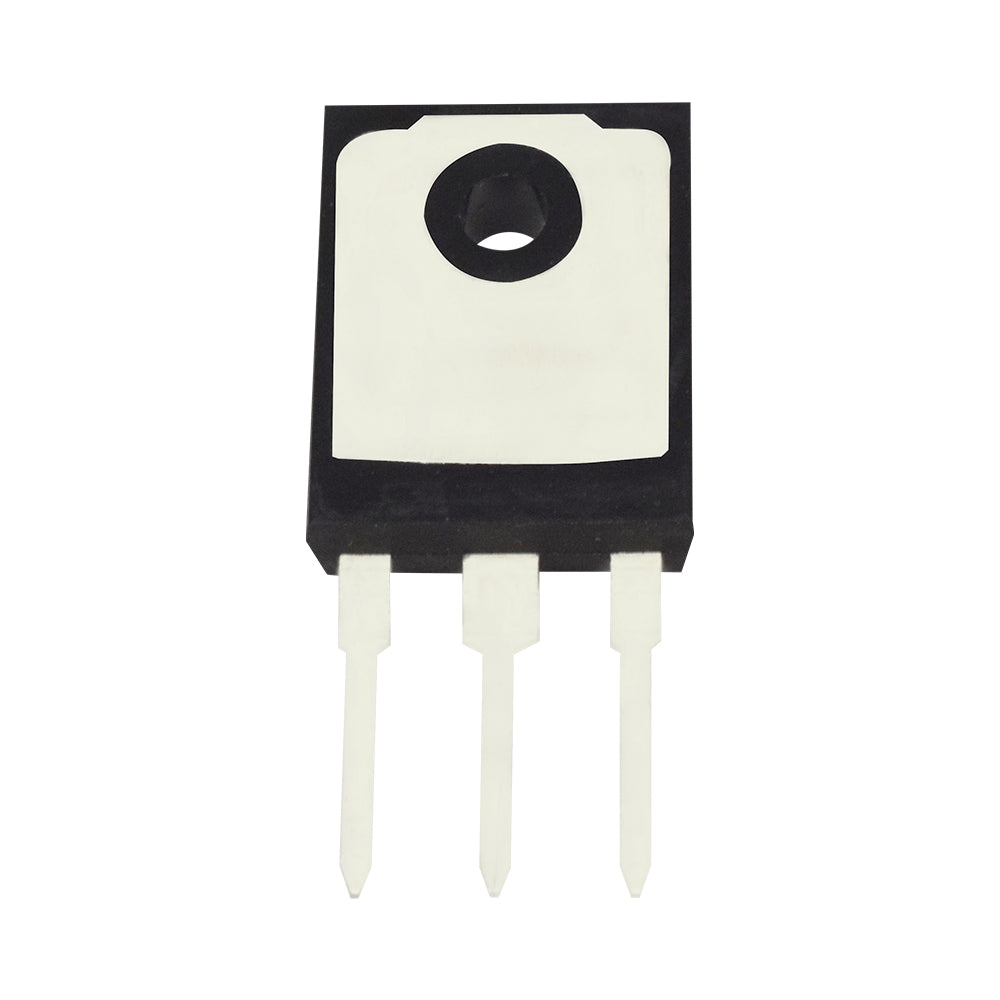

Product details
IRFP27N60K is a type of MOSFET its also known as Power MOSFET which is basically designed to work as switch its a switching device its mostly used in power switching circuit. Its a three terminal device its maximum reverse operating voltage is 600V, It operates on low gate charge in result of simple drive requirement. Its mostly used in SMPS,UPS, Motor control , Motor drive circuits and PFC .
Features
-
Its used in switching operation
-
Its maximum reverse voltage is 600V
-
Its drain current is 27A
-
Low leakage current
-
It has the capability to improved dv/dT
- 100% avalanche energy rated
Specification
| Model | IRFP27N60K |
| Type | MOSFET |
| Package | TO-247-AC |
| Reverse Voltage | 600V |
| ID | 27A |
| Lead soldering temperature | 300 degree centigrade |
| Power dissipation | 500W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
