Description

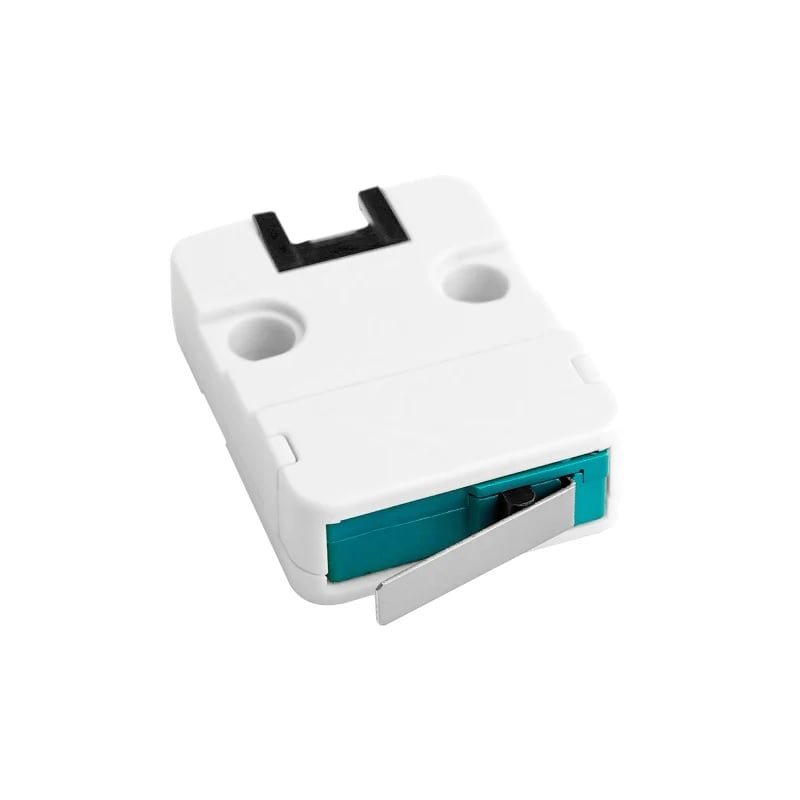

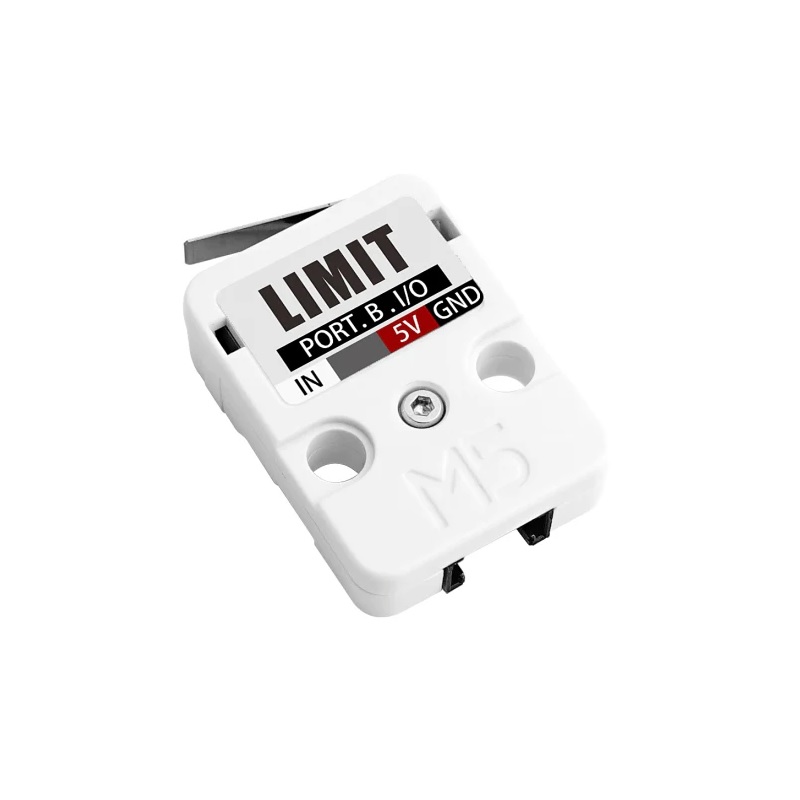

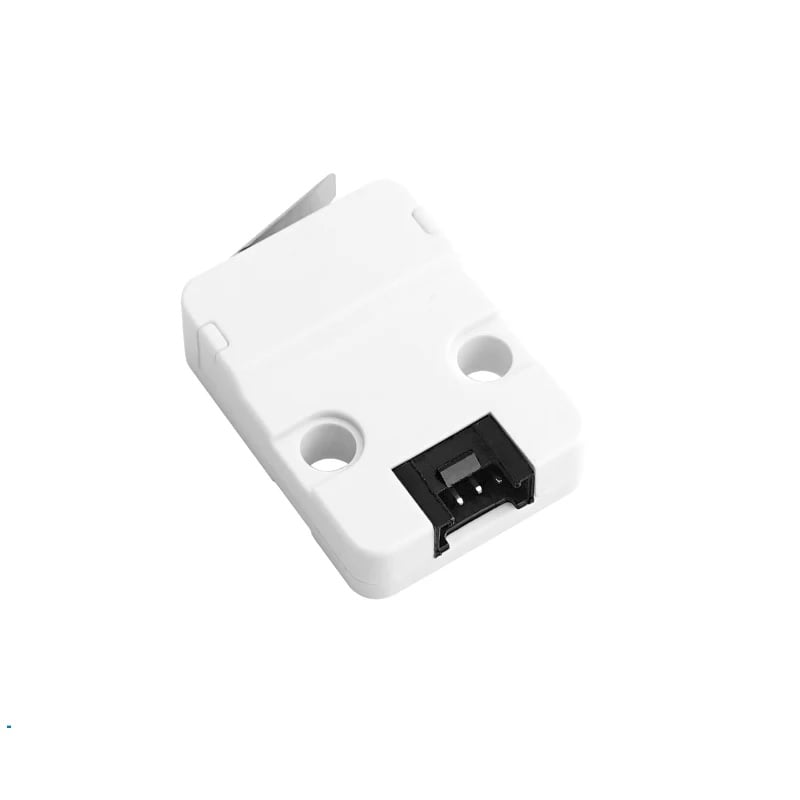

Unit Limit is a limit switch sensor. When the switch bar is pressed, the digital single of the Unit would change from 3.3V to 0V, which may generate a limit signal to MCU or other peripherals. Applied for multiple mechanical equipments, to achieve limit protection.

Features:

1. Contact limit switch
2. Long durability, upto 400K times lifetime
3. Multiple installation methods

Specifications:

1. Switch Bar Length: 16mm
2. Mechnical Lifetime: 400K Times
3. Power Supply: DC 5V
4. Output Logical Signal: DC 3.3V
5. Standby Current: DC5V@2mA
6. Operation Current: DC5V@3mA
7. Net Weight: 6.3g
8. Gross Weight: 11.4g
9. Product Size: 37 x 24 x 9.5mm
10. Package Size 92 x 135mm

Packages Includes:

1x Unit limit

1x HY2.0-4P Cable (20cm)
