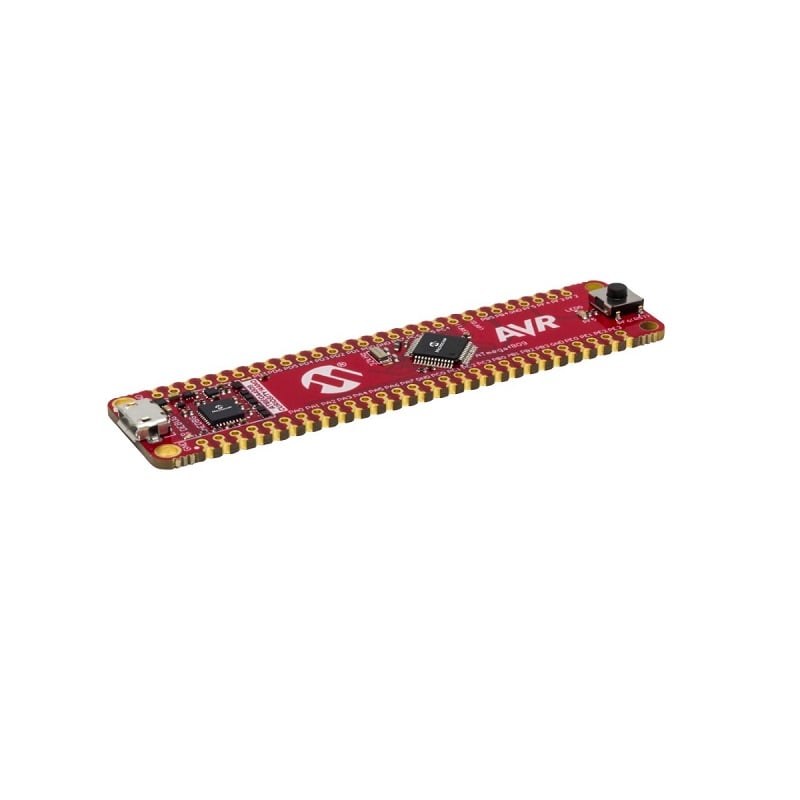

MICROCHIP DM164151 Evaluation Kit, Curiosity Nano, AVR128D MCU, 8-Bit
₹2,599.00
- Product: MICROCHIP DM164151 Evaluation Kit, Curiosity Nano, AVR128D MCU, 8-Bit
- One yellow user LED, one mechanical user switch
- One 32.768KHz crystal
- Board identification in Atmel Studio/Microchip MPLAB® X IDE
- One green power and status LED
Did you like this product? Add to favorites now and follow the product.
+91-7231900002 Connect on Whatsapp
Description
AVR128DA48 Curiosity Nano evaluation kit is a hardware platform to evaluate microcontrollers in the AVR-DA family. This board has the AVR128DA48 microcontroller (MCU) mounted. Supported by Atmel Studio and Microchip MPLAB® X Integrated Development Environments (IDEs), the board provides easy access to the features of the AVR128DA48 to explore how to integrate the device into a custom design. The Curiosity Nano series of evaluation boards include an on-board debugger. No external tools are necessary to program and debug the AVR128DA48. One yellow user LED, one mechanical user switch .One 32.768KHz crystal Board identification in Atmel Studio/Microchip MPLAB® X IDE .One green power and status LED. 500mA maximum output current (limited by ambient temperature and output voltage)
Note: For more technical details go through Datasheet in the attachment section
Features:
- One yellow user LED, one mechanical user switch
- One 32.768KHz crystal
- Board identification in Atmel Studio/Microchip MPLAB® X IDE
- One green power and status LED
- 500mA maximum output current (limited by ambient temperature and output voltage)
- Virtual serial port (CDC), two debug GPIO channels (DGI GPIO)
- USB powered
- MIC5353 LDO regulator controlled by the on-board debugger
- 1.8V to 5.1V output voltage (limited by USB input voltage)
Package Includes:
1 x MICROCHIP DM164151 Evaluation Kit, Curiosity Nano, AVR128D MCU, 8-Bit
Additional information
Model | DM164151 |
---|---|
Core Architecture | AVR |
Silicon Family Name | AVR-DA |
No. of Bits | 8bit |
Silicon Core Number | AVR128DA48 |
