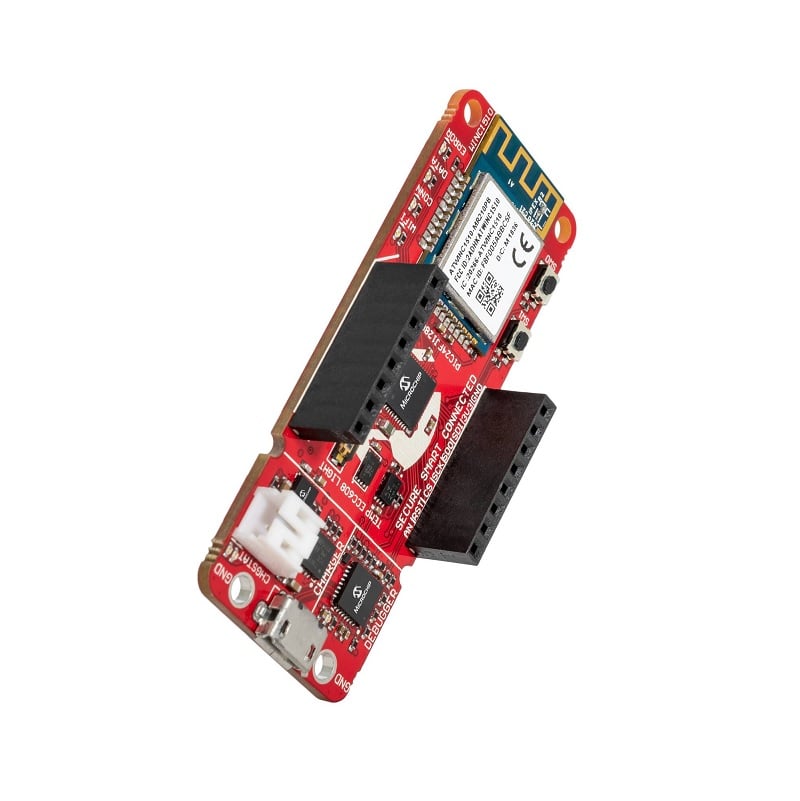

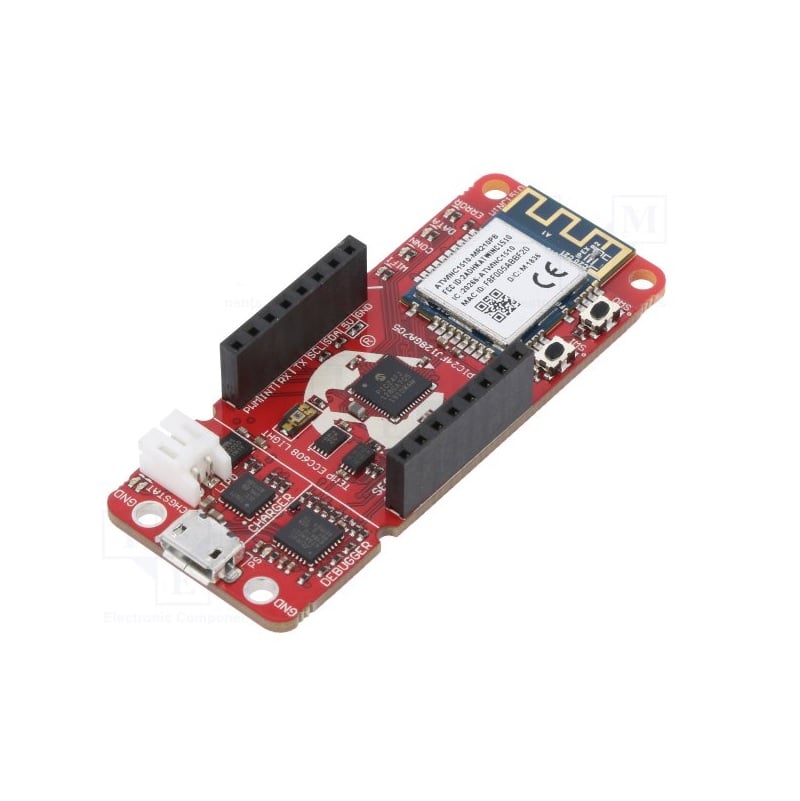

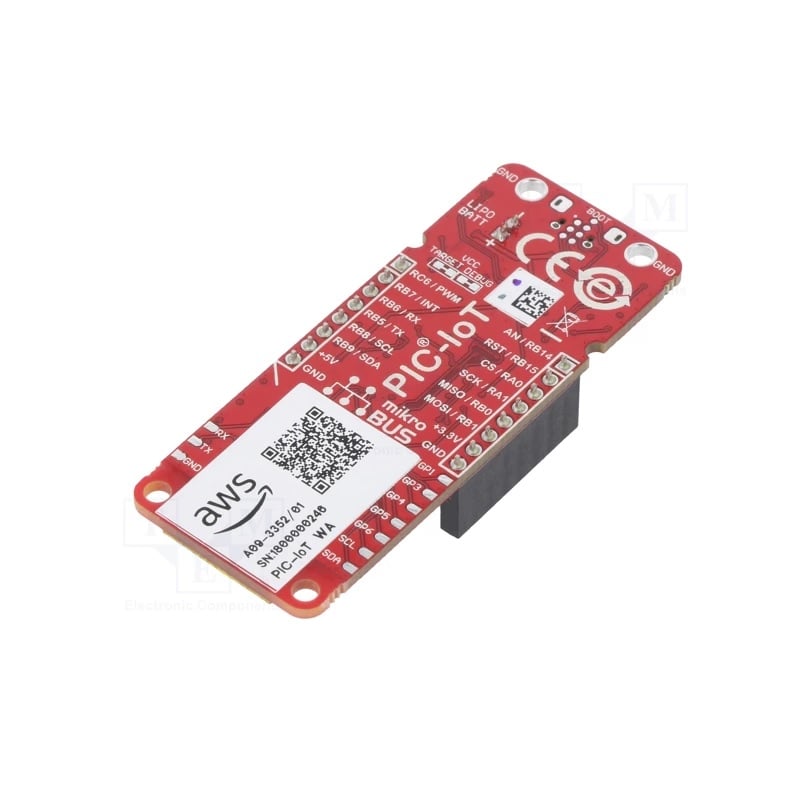

PIC-IoT WA development board combines a powerful PIC24FJ128GA705 MCU, an ATECC608A Crypto Authentication™ secure element IC and the fully-certified ATWINC1510 Wi-Fi network controller which provides the most simple and effective way to connect embedded application to Amazon Web Services (AWS). The board also includes an on-board debugger and requires no external hardware to program and debug the MCU. Out of the box, the MCU comes preloaded with firmware that enables to quickly connect and send data to the AWS platform using the on-board temperature and light sensors. PIC-IoT WA board is supported by MPLAB X IDE

Note: for more details refer to datasheet in attachment section.

Features:

1. Compact design
2. Two mechanical buttons
3. TEMT6000 light sensor, MCP9808 temperature sensor
4. MikroBUS header to interface to MikroElekronika click Boards
5. Auto-ID for board identification in Microchip MPLAB X
6. Programming and debugging
7. On-board Debugger

Specification:

1. Model: EV54Y39A  PIC-IOT WA
2. Product: DEV BOARD
3. Wi-Fi module: ATWINC1510
4. Microcontroller: PIC24FJ128GA705
5. Flash memory: 128KB
6. SRAM: 16KB
7. Led: Four status LED’s, USB and battery powered, integrated Li-Ion/LiPo battery charger

Packages Includes:

1 x MICROCHIP  EV54Y39A  PIC-IOT WA DEV BOARD, 16BIT PIC24 MCU

The PIC-IoT WG Development Board combines a powerful PIC24FJ128GA705 MCU, an ATECC608A Crypto Authentication secure element IC and the fully-certified ATWINC1510 Wi-Fi® network controller – which provides the most simple and effective way to connect your embedded application to the Google Cloud IoT Core. The board also includes an onboard debugger and requires no external hardware to program and debug the MCU.

Note: For more technical details go through Datasheet in the attachment section

Features:

1. PIC24FJ128GA705 microcontroller
2. 128 KB Flash Memory & 16 KB SRAM
3. ATWINC1510 WiFi Module
4. Single-band 2.4GHz b/g/n IoT Network Controller, Pre-certified Module
5. ATECC608A CryptoAuthentication  device

Package Includes:

1 x MICROCHIP AC164164 Development Board, PIC-IoT WG, PIC24F MCU, Google Cloud IoT Solution
