₹2,101.99 (Including tax)
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹1,996.90 (Including tax) |
| 11 - 20 | 8% | ₹1,933.84 (Including tax) |
| 21 - 40 | 10% | ₹1,891.80 (Including tax) |
| 41 - 100 | 12% | ₹1,849.75 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

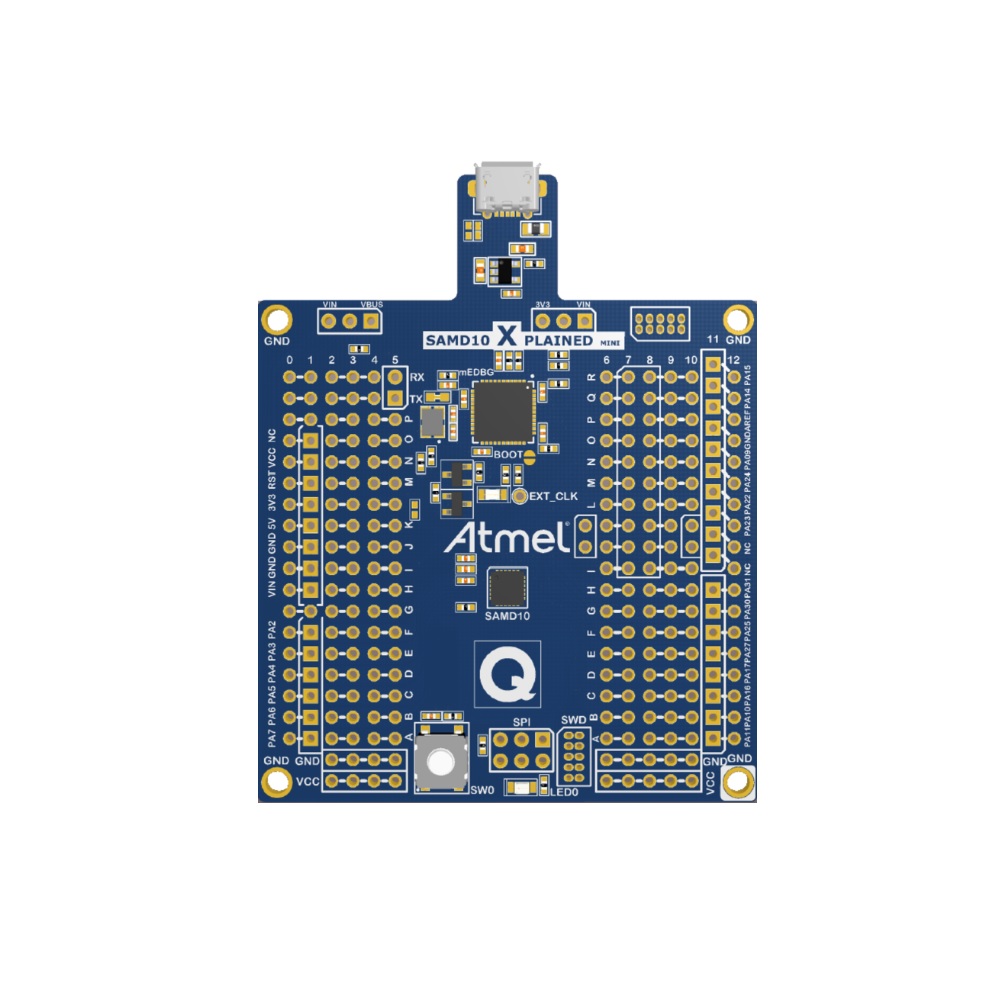

This user guide describes how to get started with the Atmel® ATSAMD10 Xplained Mini board. The ATSAMD10 Xplained Mini evaluation kit is a
hardware platform to evaluate the Atmel ATSAMD10 microcontroller. The evaluation kit comes with a fully integrated debugger that provides seamless integration with Atmel Studio 6.2 (and later version). The kit provides access to the features of the ATSAMD10 enabling easy integration of the device in a custom design
Note: For more info refer to datasheet i attachment section
1 x MICROCHIP Evaluation Kit, ATSAMD10 MCU, Smart Xplained Mini, Fully Integrated On-Board Debugger, Auto-ID
| Model |
MICROCHIP Evaluation Kit ,ATSAMD10 MCU |
|---|---|
| Regulator |
3.3V |
| External target clk |
8MHz |
| Compatible |
Arduino shield compatible foot prints |
| Programming and debugging |
Programming and debugging the ATSAMD10 Xplained Mini. The target microcontroller is the ATSAMD10. The mEDBG FW is running on the ATmega32U4 |
