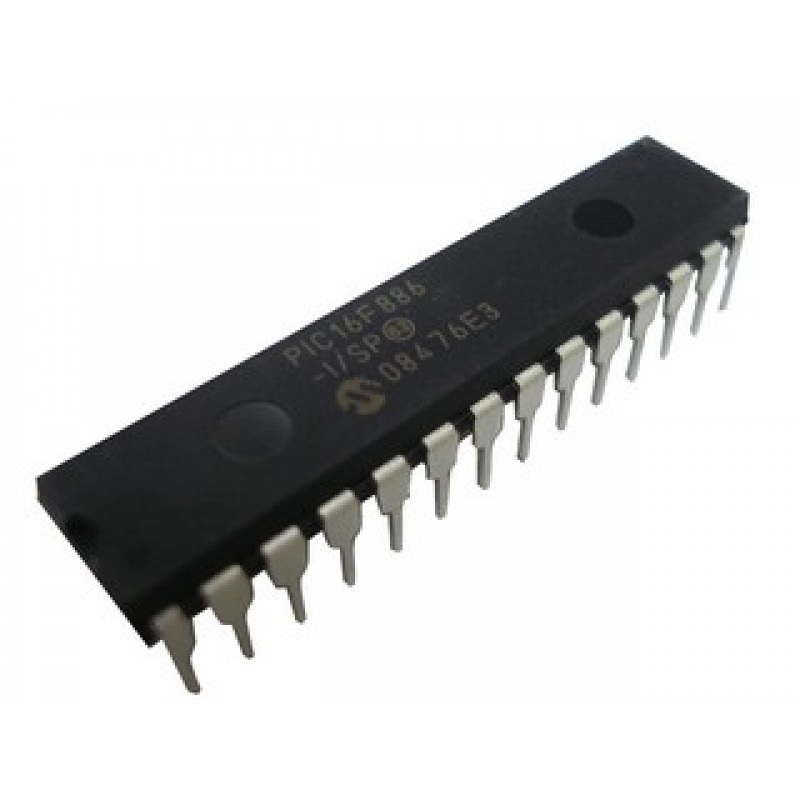

Pic 16F886 DIP – Microchip

This powerful yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC architecture into a 28 pin package. The PIC16F886 features 256 bytes of EEPROM data memory, self-programming, an ICD, 2 Comparators, 11 channels of 10-bit Analog-to-Digital (A/D) converter, 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions, an asynchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and an Enhanced Universal Asynchronous Receiver Transmitter (EUSART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances, or consumer applications.

Features of PIC16F886 Microcontroller:-

1. Power-Saving Sleep mode
2. Power-on Reset (POR)
3. Selectable Brown-out Reset (BOR) voltage
4. Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
5. In-Circuit Serial Programming™ (ICSP™) via two pins
6. In-Circuit Debug (ICD) via two pins
7. High-endurance Flash/EEPROM cell:
8. 100,000 erase/write cycle enhanced Flash program memory, typical
9. 1,000,000 erase/write cycle data EEPROM memory, typical
10. Data EEPROM retention > 40 years
11. Self-reprogrammable under software control
12. Programmable code protection

Peripheral Features of PIC16F886 Microcontroller:-

1. 1 input only pin
2. 25 I/O
3. High sink/source current 25 mA
4. Interrupt-on-pin change option

Timers:-

1. TMR0: 8-bit timer/counter with 8-bit Prescaler
2. TMR1 enhanced: 16-bit timer/counter with Prescaler, External Gate Input mode, and dedicated low-power 32 kHz oscillator
3. TMR2: 8-bit timer/counter with 8-bit period register, Prescaler and Postscaler
4. Capture/Compare/PWM (CCP) module
5. Enhanced Capture/Compare/PWM (ECCP) module with auto-shutdown and PWM steering
6. Master Synchronous Serial Port (MSSP) module SPI™ mode, I2C™ mode with address mask capability
7. Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module:
8. Supports RS-485, RS-232, and LIN compatibility
9. Auto-Baud Detect
10. Auto-wake-up on Start bit
11. Ultra-Low-Power Wake-up (ULPWU)

Analog Features of PIC16F886 Microcontroller:-

1. 10-bit 11 channel Analog-to-Digital (A/D) Converter
2. 2 Analog Comparator modules with:
3. Programmable on-chip Voltage Reference (CVREF) module (% of VDD)
4. Fixed 0.6 Vref
5. Comparator inputs and outputs externally accessible
6. SR Latch mode

Note: Product Images are shown for illustrative purposes only and may differ from the actual products.

Package Includes:

1 x PIC16F886 – 8 Bit Microcontroller IC
