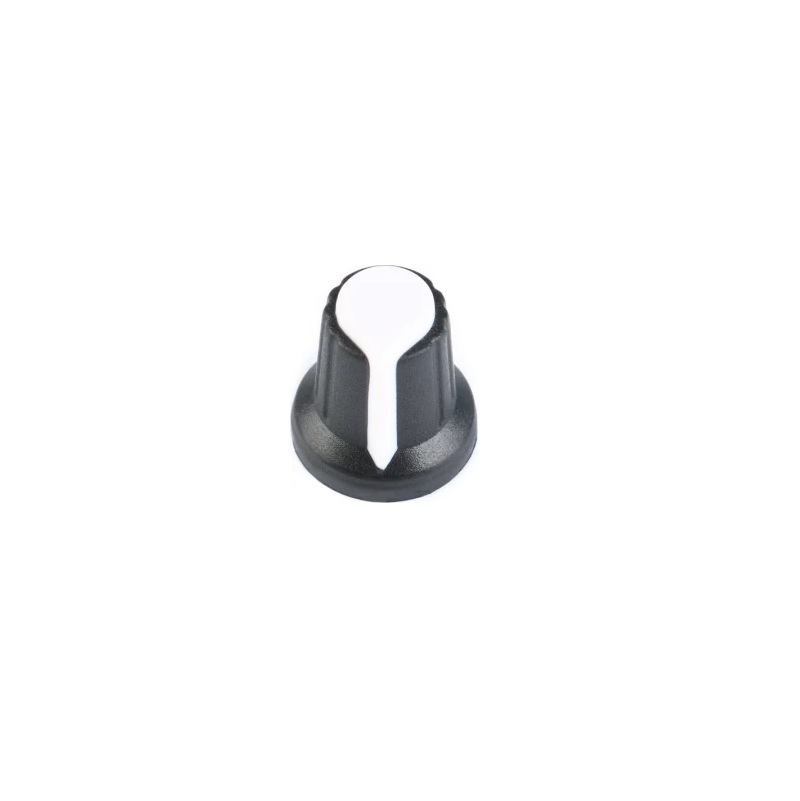

Potentiometer Knob Rotary Switch Cap White Color- Pack of 5 Pcs.

SKU: 1031099
In Stock

54.00

  1. Inner Diameter(ID): 6 mm
  2. Outer Diameter(D): 15 mm
  3. Material: Bakelite
  4. Color: Black and White
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

This is a Potentiometer Knob Rotary Switch Cap with a 6mm inner diameter. It easily fits with WH148 type potentiometer, Rotary switches used in various electronic devices. The knob makes it very easy to rotate and vary the switch rotation.


Features:

  1. Easy and smooth rotation.
  2. Fast and accurate adjustment.
  3. Shock-proof protection.

Package Includes:

1 x Potentiometer Knob Rotary Switch Cap White Color- Pack of 5 Pcs.

Additional information

Material

Bakelite

Color

White

Inner Diameter (ID) (mm)

6

Diameter (mm)

15

Length (mm)

17

Weight (gm)

6

Quick Comparison

SettingsPotentiometer Knob Rotary Switch Cap White Color- Pack of 5 Pcs. removePTV09A-8025U-B103-Rotary Potentiometer removeT93YA104KT20-Trimpot Potentiometer removeT73YE502KT20-Trimpot Potentiometer removePTV09A-4025S-A102-Rotary Potentiometer removeRK09K1130AH1-Rotary Potentiometer remove
NamePotentiometer Knob Rotary Switch Cap White Color- Pack of 5 Pcs. removePTV09A-8025U-B103-Rotary Potentiometer removeT93YA104KT20-Trimpot Potentiometer removeT73YE502KT20-Trimpot Potentiometer removePTV09A-4025S-A102-Rotary Potentiometer removeRK09K1130AH1-Rotary Potentiometer remove
SKU103109911637941163812116381011637911163798
Rating
Price54.0079.00155.0085.0059.0055.00
Stock
In Stock
Out of stock
In Stock
In Stock
In Stock
Out of stock
AvailabilityIn StockOut of stockIn StockIn StockIn StockOut of stock
Add to cart

Add to cart

Read more

Add to cart

Add to cart

Add to cart

Read more

Description
  1. Inner Diameter(ID): 6 mm
  2. Outer Diameter(D): 15 mm
  3. Material: Bakelite
  4. Color: Black and White
  1. Track Resistance: 10kohm
  2. No. of Turns: 1Turns
  3. Track Taper: Linear
  4. Power Rating: 50mW
  5. Resistance Tolerance: ± 20%
  1. Trimpot Type: Multi Turn
  2. Element Material: Cermet
  3. Adjustment Type: Top Adjust
  4. Track Resistance: 100kohm
  5. Potentiometer Mounting: Through Hole
  1. Track Resistance: 5kohm
  2. Trimpot Type: Single Turn
  3. No. of Turns: 1Turns
  4. Element Material: Cermet
  5. Adjustment Type: Top Adjust
  1. Track Resistance: 1kohm
  2. No. of Turns: 1Turns
  3. Track Taper: Linear
  4. Power Rating: 50mW
  5. Resistance Tolerance: ± 20%
  1. Track Resistance: 10kohm
  2. No. of Turns: 1Turns
  3. Track Taper: Linear
  4. Power Rating: 50mW
  5. Resistance Tolerance: ± 20%
Content

This is a Potentiometer Knob Rotary Switch Cap with a 6mm inner diameter. It easily fits with WH148 type potentiometer, Rotary switches used in various electronic devices. The knob makes it very easy to rotate and vary the switch rotation.


Features:

  1. Easy and smooth rotation.
  2. Fast and accurate adjustment.
  3. Shock-proof protection.

Package Includes:

1 x Potentiometer Knob Rotary Switch Cap White Color- Pack of 5 Pcs.

PTV09A-8025U-B103
POT, LINEAR, 10K, 0.05W, 20%, KNURLED


Specifications:

  1. Track Resistance: 10kohm
  2. No. of Turns: 1Turns
  3. Track Taper: Linear
  4. Power Rating: 50mW
  5. Resistance Tolerance: ± 20%
  6. Product Range: PTV09A Series
  7. Potentiometer Mounting: Bushing Mount
  8. Shaft Diameter: 6mm
  9. No. of Gangs: 1
  10. Adjustment Type: Knurled
  11. Shaft Length: 25mm

Package Includes:

1 x PTV09A-8025U-B103-Rotary Potentiometer

T93YA104KT20
Trimpot, Multi Turn, Cermet, Top Adjust, 100 kohm, Through Hole, 23 Turns

The T93 is a small size trimmer – 3/8″ x 3×8″ x 3/16″ – answering PC board mounting requirements. Five versions are available which differ by the position of the control screw in relation to the PC board plane and by the spacing of the terminals. Excellent operational stability is provided by the use of a cermet element.
  1. Industrial grade
  2. 21 turns Electrical travel
  3. 23 turns Mechanical travel
  4. Fully sealed – IP67
  5. Operating temperature range -55°C to +125°C
  6. Resistance value range: 10 R to 2.2MR

Specifications:

  1. Trimpot Type: Multi Turn
  2. Element Material: Cermet
  3. Adjustment Type: Top Adjust
  4. Track Resistance: 100kohm
  5. Potentiometer Mounting: Through Hole
  6. No. of Turns: 23Turns
  7. Product Range: T93
  8. Power Rating: 500mW
  9. Resistance Tolerance: ± 10%
  10. Temperature Coefficient: ± 100ppm/°C
  11. Trimpot Shape / Size: 3/8 Inch Square

Package Includes:

1 x T93YA104KT20-Trimpot Potentiometer

T73YE502KT20
TRIMMER POTENTIOMETER, 5KOHM 1TURN THROUGH HOLE


Specifications:

  1. Track Resistance: 5kohm
  2. Trimpot Type: Single Turn
  3. No. of Turns: 1Turns
  4. Element Material: Cermet
  5. Adjustment Type: Top Adjust
  6. Potentiometer Mounting: Through Hole
  7. Product Range: T73 Series
  8. Power Rating: 500mW
  9. Resistance Tolerance: ± 10%
  10. Temperature Coefficient: ± 100ppm/°C
  11. Trimpot Shape / Size: 1/4 Inch Square

Package Includes:

1 x T73YE502KT20-Trimpot Potentiometer

PTV09A-4025S-A102
POT, LINEAR, 1K, 0.05W, 20%, KNURLED


Specifications:

  1. Track Resistance: 1kohm
  2. No. of Turns: 1Turns
  3. Track Taper: Linear
  4. Power Rating: 50mW
  5. Resistance Tolerance: ± 20%
  6. Product Range: PTV09A Series
  7. Potentiometer Mounting: Through Hole
  8. Shaft Diameter: 6mm
  9. No. of Gangs: 1
  10. Adjustment Type: Knurled
  11. Shaft Length: 25mm

Package Includes:

1 x PTV09A-4025S-A102-Rotary Potentiometer

RK09K1130AH1

Rotary Potentiometer, 10 Kohm, 1 Turns, Linear, 50 mW, ± 20%, RK09K Series

The RK09K/D series from Alps are insulated shaft snap-in rotary potentiometers. These are compact type potentiometers 9.8mm wide and are ideally designed for high-density sets and audio applications.
  1. Single unit or dual unit resistor element
  2. Flat knob and screwdriver type shafts are available
  3. The length of the shaft varies from 15mm to 30mm
  4. With or without center detent option available
  5. Total resistance of 5Kohm, 10Kohm, 20Kohm, 50Kohm, 100Kohm and 200Kohm
  6. Total resistance tolerance of ±20% and ±30%
  7. Horizontal and vertical type mounting available
  8. Operating temperature range -10°C to 70°C
  9. Total rotational angle of 280° or 300°and maximum power rating up to 0.05W
  10. 15A, 15C, 1B, 3B resistance taper available

Specifications:

  1. Track Resistance: 10kohm
  2. No. of Turns: 1Turns
  3. Track Taper: Linear
  4. Power Rating: 50mW
  5. Resistance Tolerance: ± 20%
  6. Product Range: RK09K Series
  7. Potentiometer Mounting: Through Hole
  8. Shaft Diameter: 6mm
  9. No. of Gangs: 1
  10. Adjustment Type: Flatted
  11. Shaft Length: 17.4mm

Package Includes:

1 x RK09K1130AH1-Rotary Potentiometer

Weight
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
Material

Bakelite

Color

White

Inner Diameter (ID) (mm)

6

Diameter (mm)

15

Length (mm)

17

Weight (gm)

6
