Description

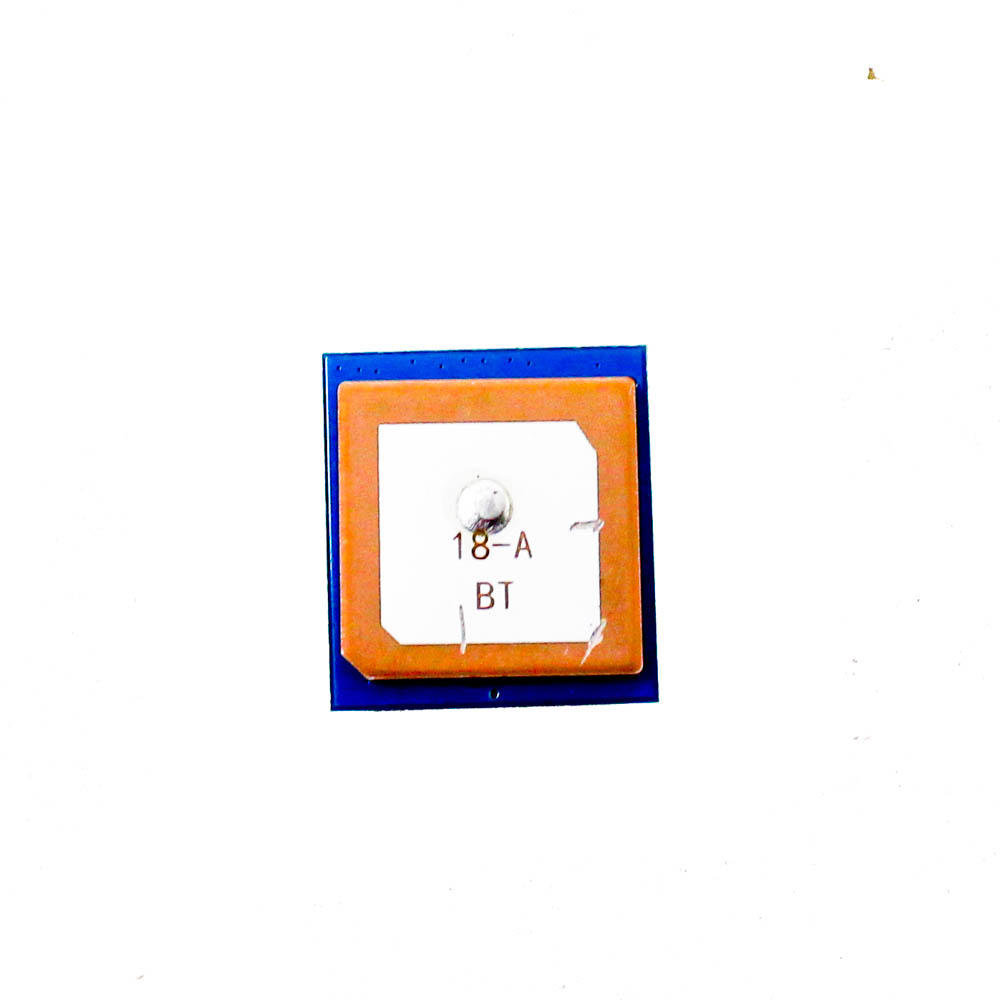

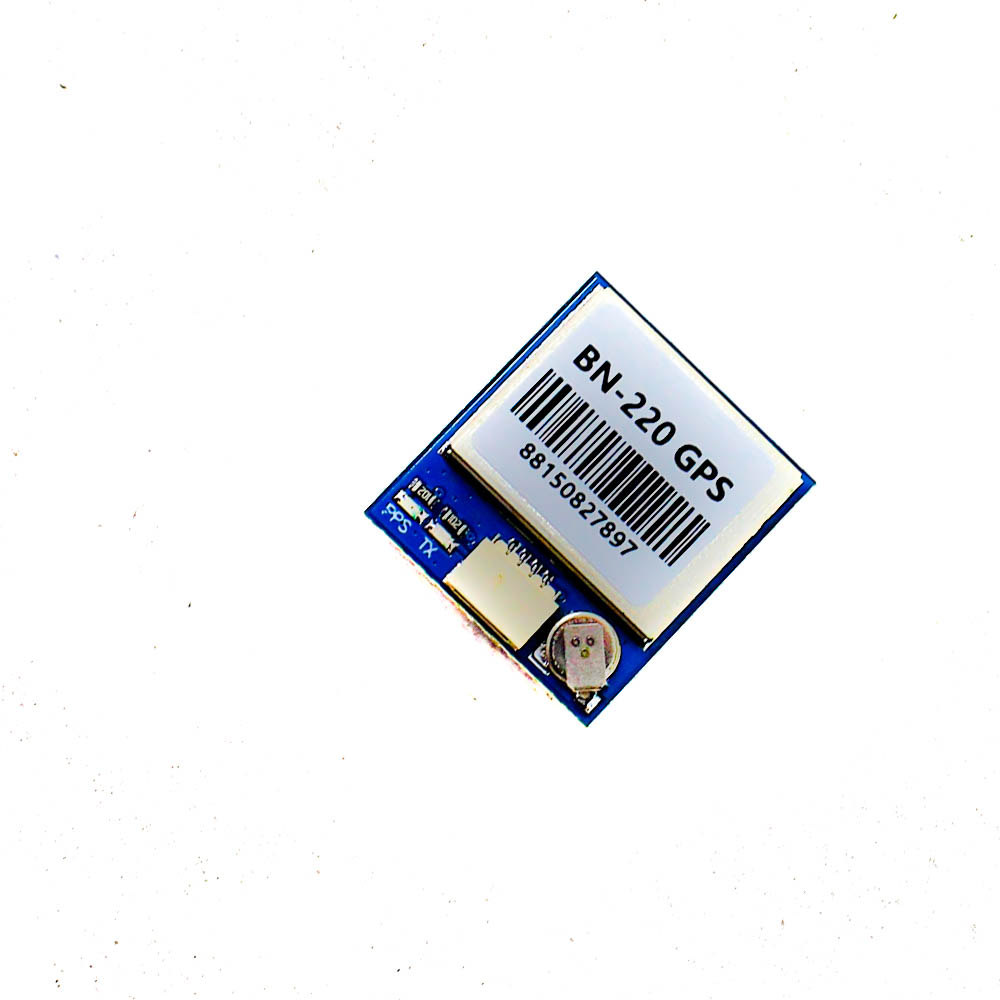

Readytosky GPS BN-220 Antenna Module TTL Level RC Drone. This BN-220 GPS Module can show your speed. When you use it for Raspberry Pi, there is no driver needed. The data output when the TX LED flashing in blue; PPS LED not bright when GPS not fixed, flashing in red when fixed

Features:

1. Small in size
2. Easy to use
3. Low power consumptions
4. high Sensitivity, Accuracy

Specifications:

1. Operation Voltage: 3.0V – 5.5V ( Typical 5V)
2. Channels : 72 Searching Channel
3. Support Rate : 4800bps to 921600bps,Default 9600bps
4. Data Level : TTL or RS-232,Default TTL level
5. Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
6. Single GNSS : 1Hz-18Hz
7. Concurrent GNSS : 1Hz-10Hz,Default 1Hz
8. Dimension :22mm x 20mm x 6mm

Sensitivity

1. Tracking : -167dBm
2. Reacquisition : -160dBm
3. Cold start : -148dBm
4. Hot start : -156dBm

Accuracy

1. Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
2. Rate : 0.1m/sec 95% (SA off)
3. Timing : 1us synchronized to GPS time

Data and Update Rate

1. Support Rate : 4800bps to 921600bps,Default 9600bps
2. Data Level : TTL or RS-232,Default TTL level
3. Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
4. Single GNSS : 1Hz-18Hz
5. Concurrent GNSS : 1Hz-10Hz,Default 1H

1. VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
2. Current : Capture 50mA/5.0V
3. Operating temp :　-40 °C ~ +85°C
4. Storage Temp : -40°C ~ +105°C

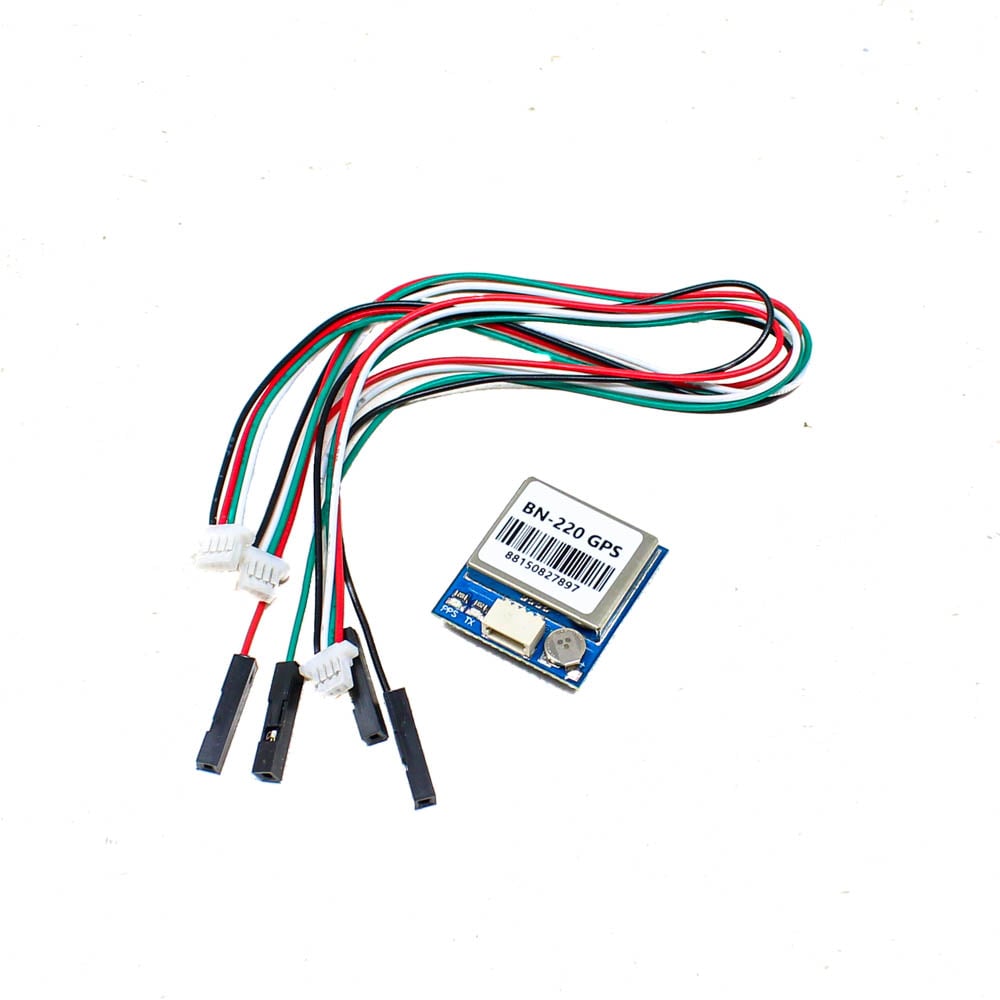

Packages Includes:
