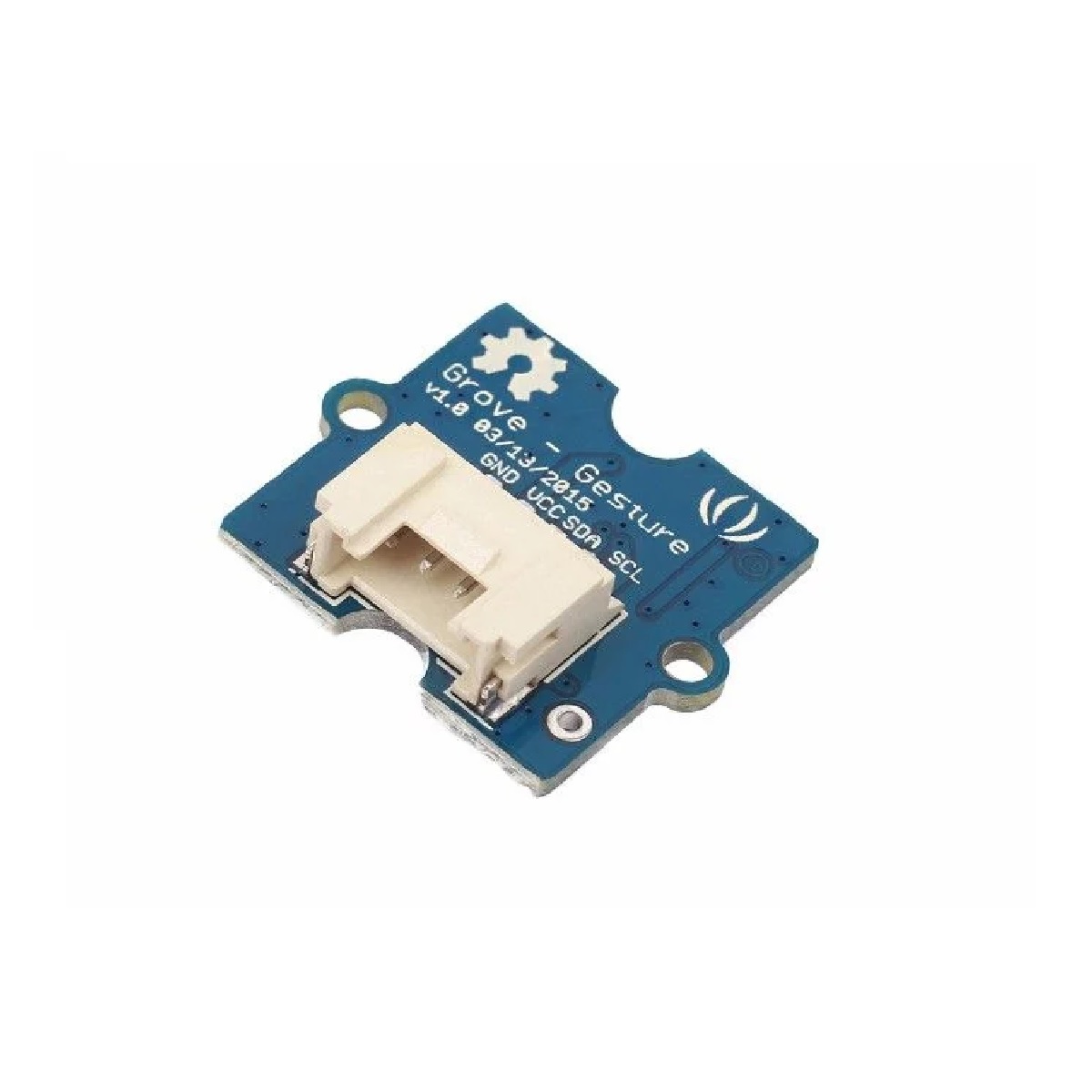

SeeedStudio Grove Gesture

13 People watching this product now!

SKU: rz24318236 Category: Other Sensors

Description

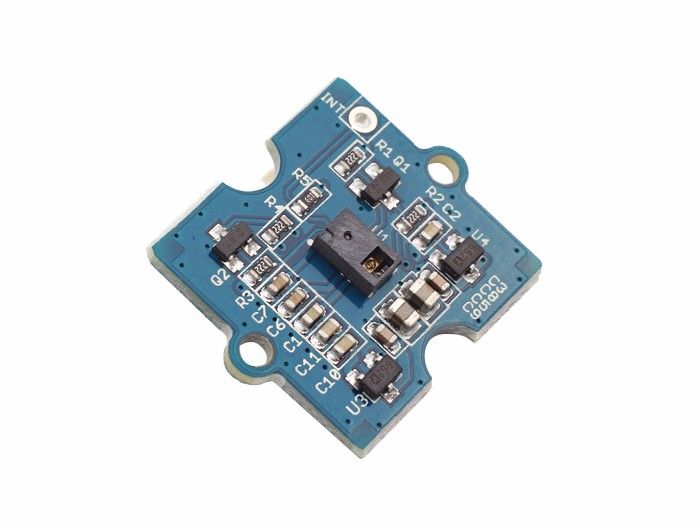

The sensor on Grove – Gesture is PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 basic gestures, and these gestures information can be simply accessed via the I2C bus.

We can use the gesture to adjust the sound volume, control a robot. We can also make a remote-control unit, which is able to operate many devices at the same time using gestures

Application: You can use Gesture as an input device to control another grove, or a computer, mobile phone, smart car, robot, and more with a simple swipe of your hand.

Getting Started with SeeedStudio Grove Gesture

Features:

Built-in proximity detection
Various mainboards support: Arduino UNO/Seeeduino/Arduino Mega2560
9 Basic gestures
1. Up
2. Down
3. Left
4. Right
5. Forward
6. Backwards
7. Clockwise
8. Count Clockwise
9. Wave

Package Includes :

1 x SeeedStudio Grove Gesture

Additional information

Model	PAJ7620U2
Operating Voltage(V)	5
Compatibility	Arduino UNO/Seeeduino/Arduino Mega2560
Detecting Range	5-10cm
Gesture speed in Normal Mode	60°/s to 600°/s
Gesture speed in Gaming Mode	60°/s to 1200°/s
Ambient light immunity	< 100k Lux
Interface Type	IIC interface up to 400 kbit/s
Operating Tempreture	-40°C to +85°C
