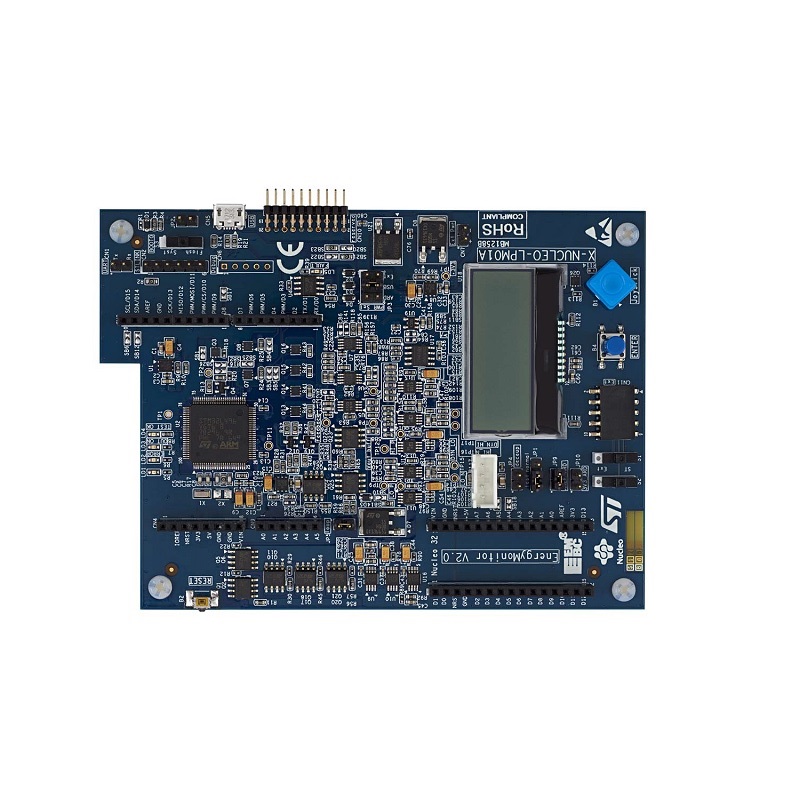

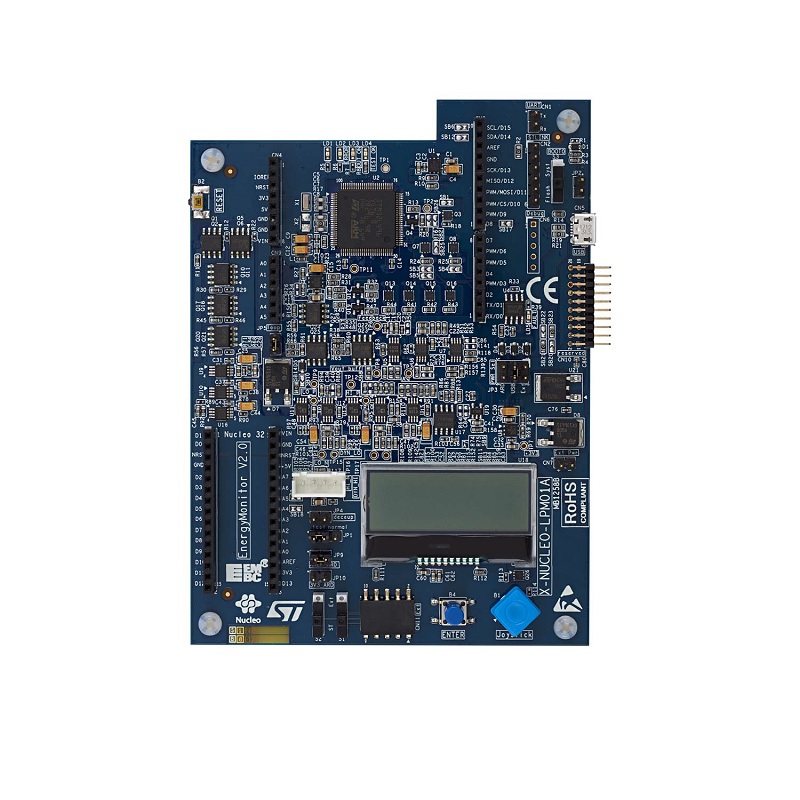

STMICROELECTRONICS Expansion Board, STM32L496VGT6 MCU, Power Consumption Measurement, For STM32 Nucleo

The X-NUCLEO-LPM01A is a 1.8 V to 3.3 programmable power supply source with Picture is not contractual. advanced power consumption measurement capability. It performs consumption averaging (static measurement up to 200 mA) as well as real-time analysis (dynamic measurement up to 50 mA with 100 kHz bandwidth). The X-NUCLEO-LPM01A operates either in
standalone mode (using its LCD, joystick, and button to display static measurements), or in controlled mode connected to the host PC via USB(using the STM32CubeMonitor-Power software tool with its comprehensive graphical user interface).

Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.

Features:

1. STM32L496VGT6 microcontroller featuring Arm® Cortex®-M4 core at 80 MHz / 100 DMIPS and three 12-bit ADC at 5 Msps
2.  Programmable voltage source from 1.8 V to 3.3 V
3. Static current measurement from 1 nA to 200 mA
4.  Dynamic measurements: 100 kHz bandwidth, 3.2 Msps sampling

Package Includes:

1 x STMicroelectronics Expansion Board, STM32L496VGT6 MCU, Power Consumption Measurement, For STM32 Nucleo
