Description

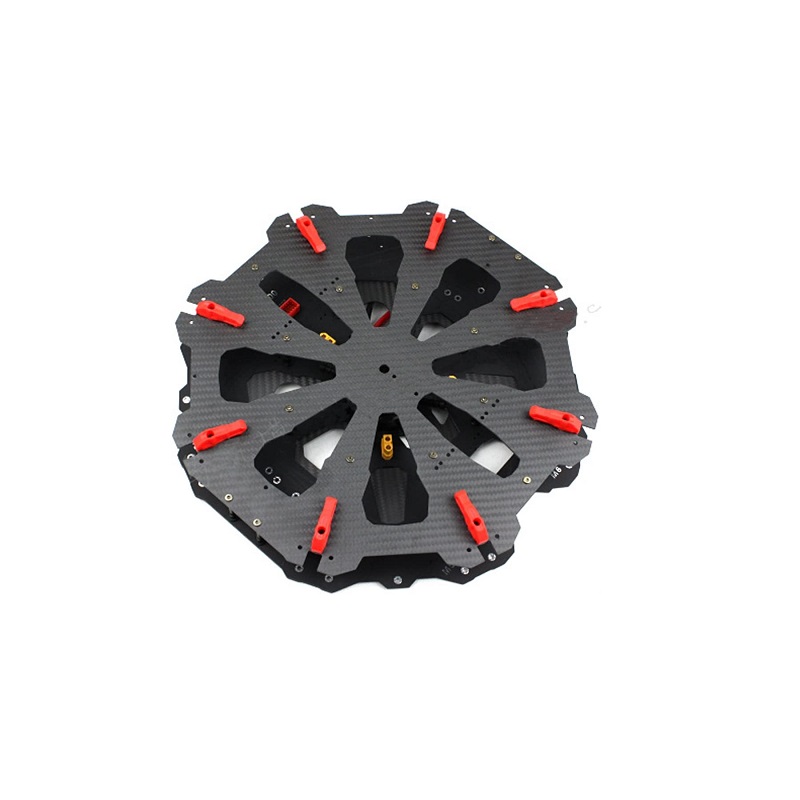

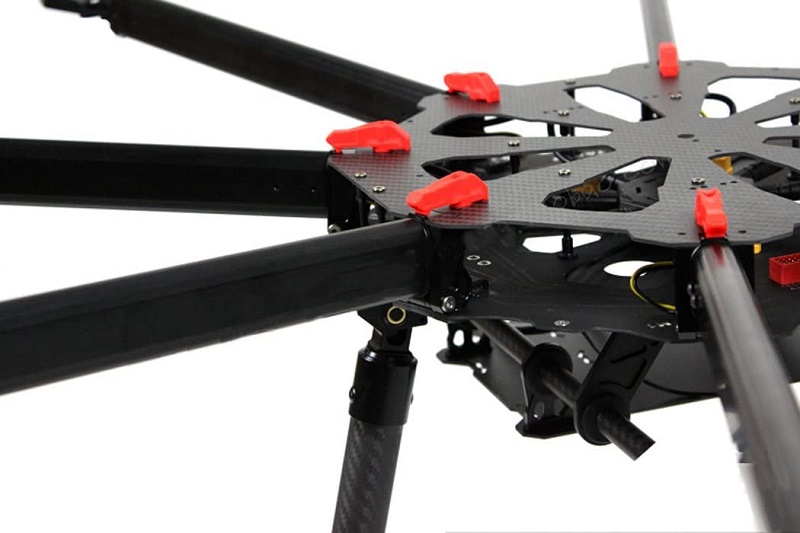

The Tarot X8 Airframe was designed to meet the specific needs of professional operators seeking a heavy-lift videography platform. The X8 has unique features that set it apart from similar multi-rotor platforms such as folding arms that can be locked into position in a matter of seconds allowing for easy transport and storage, heavy lift capability, and ruggedized landing gear to name but a few. Without question, the Tarot X8 was designed to be a workhorse.

The Tarot X8 is ideal for high-end camera gimbals and professional videography equipment (3-Axis Gimbal and DSLR Camera) with an integrated PCB board for easy cabling. Foldable arms for easy transportation (no tools required) and retractable landing gear to give your camera an unimpeded 360-degree view of the world.

The battery placement on the X8 keeps the center of gravity low which is conducive to stable flight, coupled with the ability to re-position the camera gimbal will allow you to fine-tune your platform for ideal weight distribution. The frame utilizes a proprietary power distribution system for your ESCs and also includes 3 x XT60 connectors for auxiliary items. Uniquely shaped arms allow you to slide ESCs inside for a clean layout and the motor mounts are fitted with dampers to reduce engine vibration on the frame.

Key Points:

• Black and Red Color Main Frame Design Have Strong Visual Effect. The Battery Hang Under The Frame Design Make The Gravity Center Lower, and It Provides More Installation Space.
• The Tarot x8 Comes with High Strength PCB Board; The Power Plug Adopts The as150 Anti-Spark Connector. The User Could Get More Flight Time From The Light Frame.
• The Electronic Retractable Landing Skid Has Reverse Power Protection and Failsafe Function. The Retractable Landing Skid Could Provide Broader Views for Aerial Photography.
• The Tarot x8 Comes with Metal GPS Mount. It is Plug Type, Easy to Folding.
• There is Air Deflector Groove On top; It Could Bring Good Heat Dissipation Effect.

Recommended with this frame:

• 6S 22.2V 10000~20000mah
• 8 x 30-40amp Multirotor ESC
• Flight Controller (Pixhawk 2.1 cube)
• 320kv Motor
• 15 x 5.5 Propeller

Features:

1. Professional Heavy Lift Platform
2. Lightweight Construction
3. Folding Arms for Easy Storage
4. 5 Degree Rotor Arm Dihedral
5. Integrated PCB
6. Integrated ESC Cables
7. 3 x XT60 Battery Connectors
8. Motor Mount Vibration Dampening
9. Retractable Landing Gear
10. Heavy Lift Capability
11. large Camera Gimbal Support
12. Unimpeded 360deg Camera Gimbal view

Package Includes:

1. Tarot X8 Airframe with Motorized Landing Gear
2. Motorized Landing Gear Control Box
3. ESC Power Extension Cord
4. ESC Signal Extension Cord
5. English Manual
