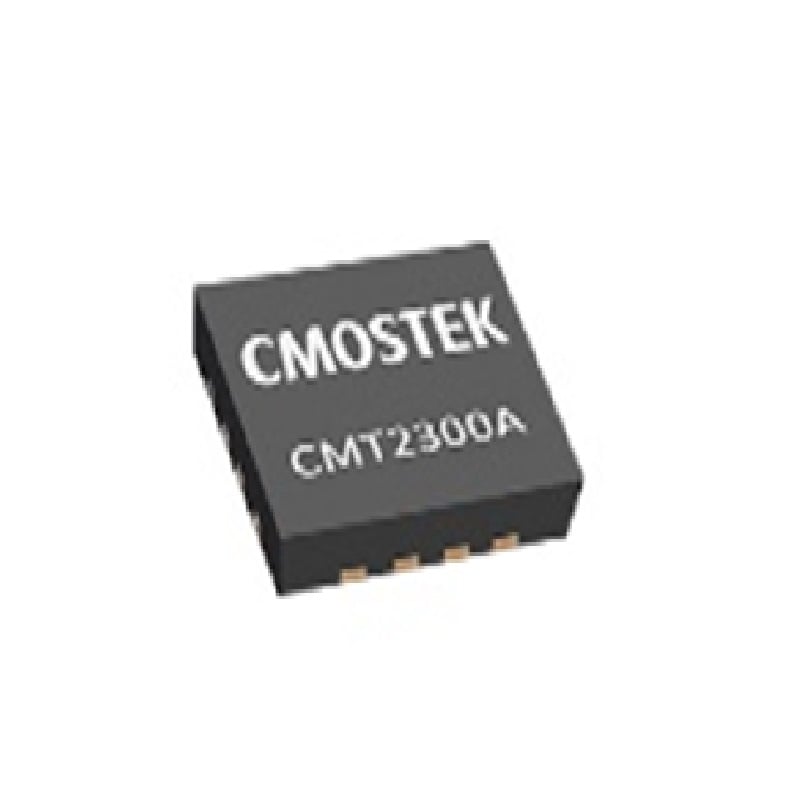

Transceiver chipset CMT2300AW-EQR.

122.14 (Including tax)

  1. Voltage range: 1.8 ~3.6 V
  2. Data rate: 0.5 ~ 300 kbps
  3. Frequency range: 127 ~1020 MHz
  4. Automatic meter reading.
  5. Home security and building automation.

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%116.03 (Including tax)
11 - 208%112.36 (Including tax)
21 - 4010%109.91 (Including tax)
41 - 10012%107.48 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

11 People watching this product now!
SKU: rz24315788 Categories: , ,
Description

CMT2300A is an ultra-low power, high performance, OOK (G) FSK RF transceiver suitable for a variety of 140 to 1020 MHz wireless applications. It is part of the CMOSTEK NextGen RFTM RF product line. The product line contains the complete transmitters, receivers and transceivers. The high
integration of CMT2300A simplifies the peripheral materials required in the system design. Up to +20 dBm Tx Power and -121 dBm sensitivity optimize the performance of the application. It supports a variety of packet formats and codec methods to meet the needs of various different applications. In addition, CMT2300A also supports 64-byte Tx/Rx FIFO, GPIO and interrupt configuration, Duty-Cycle operation mode, channel sensing, high-precision RSSI, low-voltage detection, power-on reset, low frequency clock output, manual fast frequency hopping, squelch and etc. The
features make the application design more flexible and differentiated. CMT2300A operates from 1.8 V to 3.6 V. Only 8.5 mA current is consumed when the sensitivity is -121 dBm, Super Low Power mode can further reduce the chip power consumption. Only 23mA Tx current is consumed when the output power is 13 dBm.

Applications:

  1. Automatic meter reading.
  2. Home security and building automation.
  3. ISM band data communication.
  4. Industrial monitoring and control.
  5. Remote control and security system.
  6. Remote key entry.
  7. Wireless sensor node.
  8. Tag reader.

Features:

  1. Super-low Power receive mode.
  2. Sleep current: 300 nA, Duty Cycle = OFF 800 nA, Duty Cycle = ON.
  3. Receiver features: Fast and stable automatic frequency control (AFC).
  4. 3 types of clock data recovery system (CDR).
  5. Fast and accurate signal detection (PJD).
  6. 4-wire SPI interface.
  7. Direct and packet mode supported.
  8. Configurable packet handler and 64-Byte FIFO.
  9. NRZ, Manchester codec, Whitening codec, Forward Error Correction (FEC).

Specifications:

  1. Frequency range: 127 ~1020 MHz
  2. Modem: OOK, (G)FSK and (G)MSK
  3. Rx current:8.5 mA @ 433.92 MHz, FSK (High power mode) 7.2 mA @ 433.92 MHz, FSK (Low power mode)
  4. Voltage range: 1.8 ~3.6 V
  5. Data rate: 0.5 ~ 300 kbps
  6. Sensitivity: – 121 dBm 2.0 kbps, FRF = 433.92 MHz -111 dBm 50 kbps, FRF = 433.92 MHz
  7. Transmit current: 23 mA @ 13 dBm, 433.92 MHz, FSK 72 mA @ 20 dBm, 433.92 MHz, FSK

Packages Includes:

1 x Transceiver chipset CMT2300AW-EQR.
