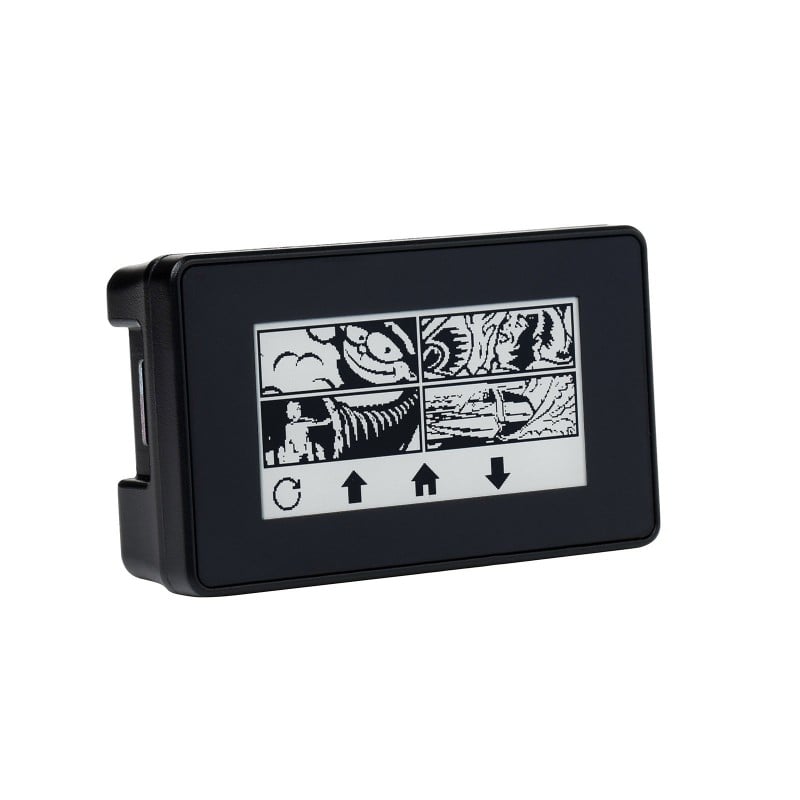

Waveshare 2.13inch Touch E-Paper E-Ink Display for Raspberry Pi Zero, 250×122, ABS Case

SKU: rz24321358
In Stock

1,694.06

  1. Operating Voltage: 3.3V
  2. Gray Scale: 2
  3. Interface: 3-wire SPI, 4-wire
  4. SPI Partial Refresh Time: 0.3s
  5. Full Refresh Time: 2s
  6. Refresh Power:  26.4mW(Typ.)
  7. Dot Pitch : 0.194 x0.194mm
In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

This is an E-Ink display for Raspberry Pi, 2.13inch, 250×122 resolution, with an embedded controller, communicating via SPI interface, supports the black, and white color display.

There is no backlight so it can keep displaying the last content for a long time even when the power is down. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight,  Basically, power to the display is only required for refreshing. For connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc… SPI interface can be used.


Useful link:

To do Hardware and Software setup, please follow this tutorial.


Features:

  1. 2.13″ capacitive touch e-Paper display, 5-point touch, 250×122 pixels
  2. Supports waken up by user-defined gesture
  3. No backlight keeps displaying last content for a long time even when power down
  4. Ultra-low power consumption, basically power is only required for refreshing
  5. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W
  6. Comes with development resources and manual (examples for Raspberry Pi)

Specifications:

  1. Operating Voltage: 3.3V
  2. Gray Scale: 2
  3. Interface: 3-wire SPI, 4-wire
  4. SPI Partial Refresh Time: 0.3s
  5. Full Refresh Time: 2s
  6. Refresh Power:  26.4mW(Typ.)
  7. Dot Pitch : 0.194 x0.194mm
  8. Standby Current: <0.01uA (almost none)
  9. Viewing  Angle: >170°
  10. Display Color: black, white
  11. Touch Point: 5 (max)

Package Includes:

1 x Waveshare 2.13inch Touch E-Paper E-Ink Display for Raspberry Pi Zero, 250×122, ABS Case
