Description

8DP-CAPLCD is a mini universal capacitive touch screen with HD resolution and is compatible with most standard HDMI devices.
As it is thin and light with toughened glass capacitive touch panel, 8DP-CAPLCD is excellent in display and has a smooth multi-touch effect.

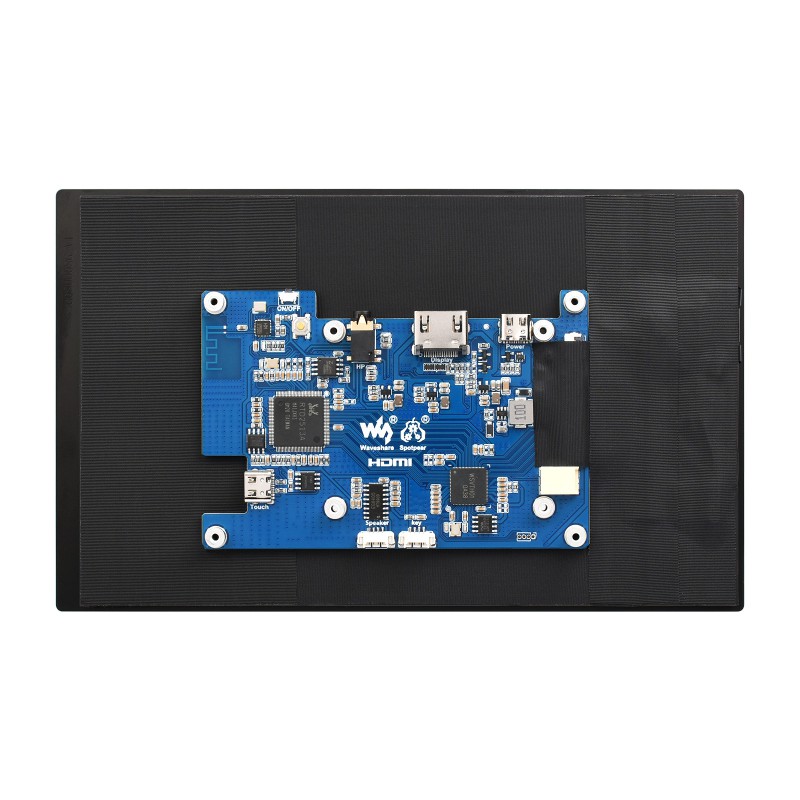

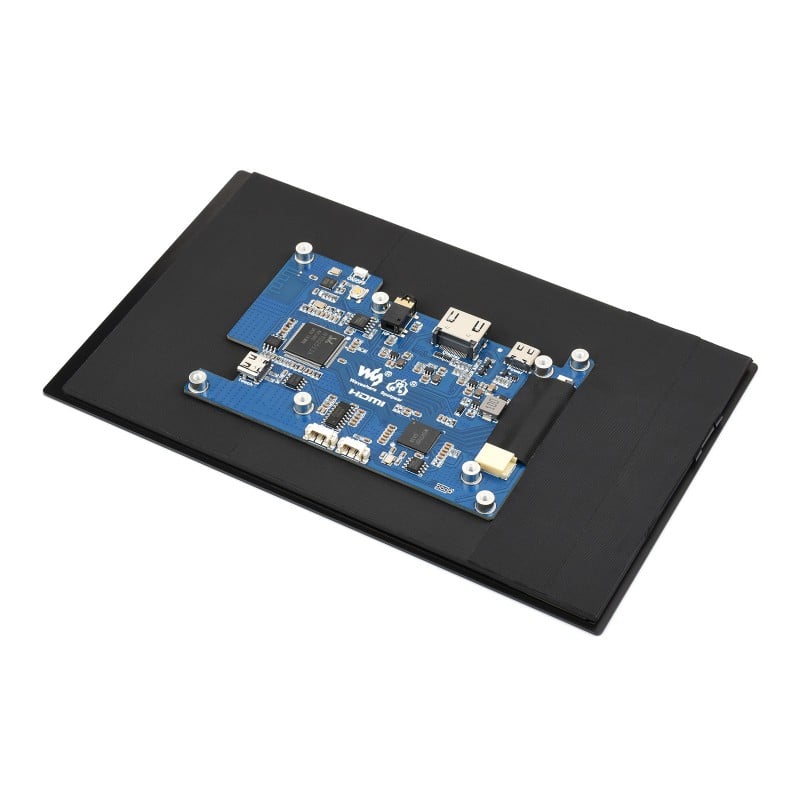

The baseboard comes with fixed nuts, which enables users to integrate it into an all-in-one project more conveniently.


Features:

  1. 8-inch IPS screen with a hardware resolution of 1280 x 800.
  2. 10-point capacitive touch, with tempered glass panel, hardness up to 6H.
  3. Adopting optical bonding touch technology, the display effect is better.
  4. Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
  5. Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
  6. Support multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
  7. Support HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.

Specifications:

  1. Model: 8DP-CAPLCD
  2. Input Voltage 4.75- 5.25 V
  3. Input Current 750 800 TBD
  4. Viewing Angle: 178
  5. Resolution: 1280 x 800
  6. Touch screen dimensions: 194.00 (H) × 119.00 (V) × 2 (D)
  7. Display dimensions: 114.66 (H) × 184.16 (V) × 2.6 (D)
  8. Display area: 107.64 (H) × 172.22 (V)
  9. Pixel pitch: 0.13455 (H) × 0.13455 (V)
  10. Color gamut: 62%
  11. Maximum brightness: 400
  12. Contrast: 1200:1
  13. Backlight adjustment: OSD menu dimming
  14. Refresh Rate: 60 Hz
  15. Display port: Standard HDMI port
  16. Power port: 5V Type-C power supply
  17. Power Consumption: 4

Package Includes:

1 x  Waveshare 8inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
