₹3,106.17 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹2,950.87 (Including tax) |
11 - 20 | 8% | ₹2,857.68 (Including tax) |
21 - 40 | 10% | ₹2,795.56 (Including tax) |
41 - 100 | 12% | ₹2,733.43 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

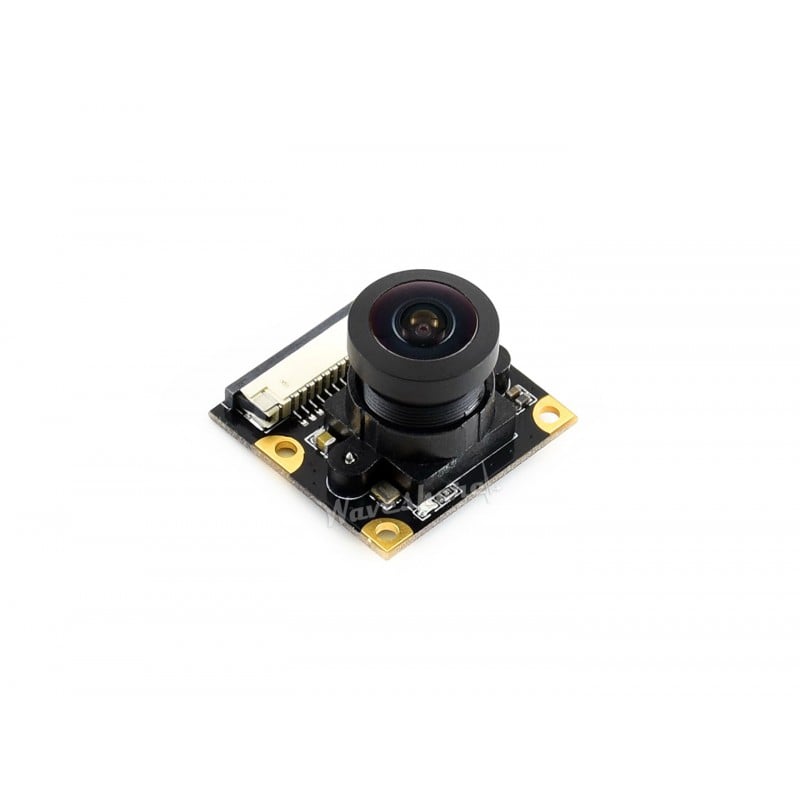

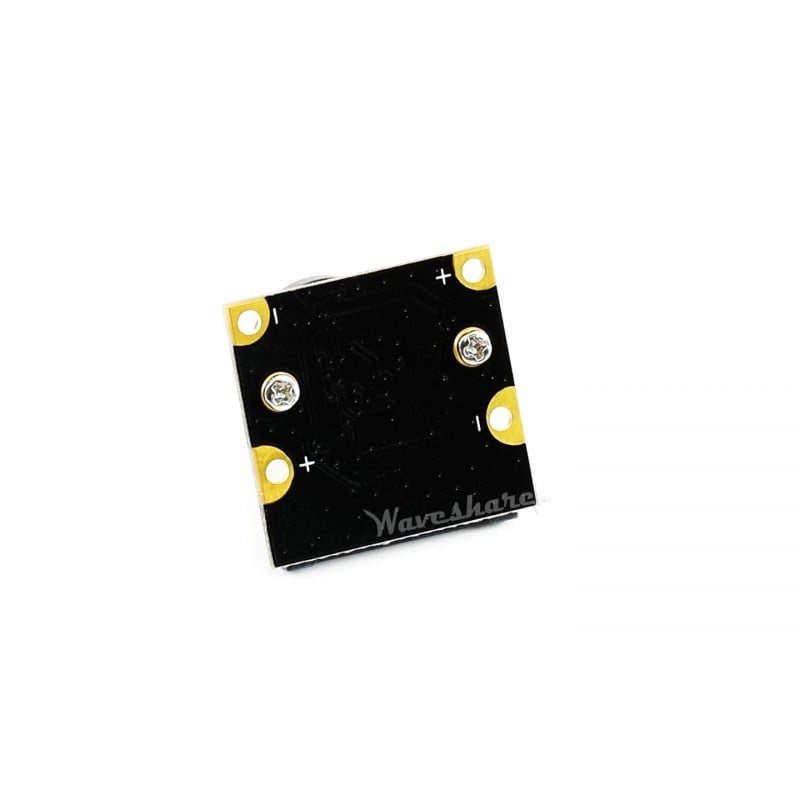

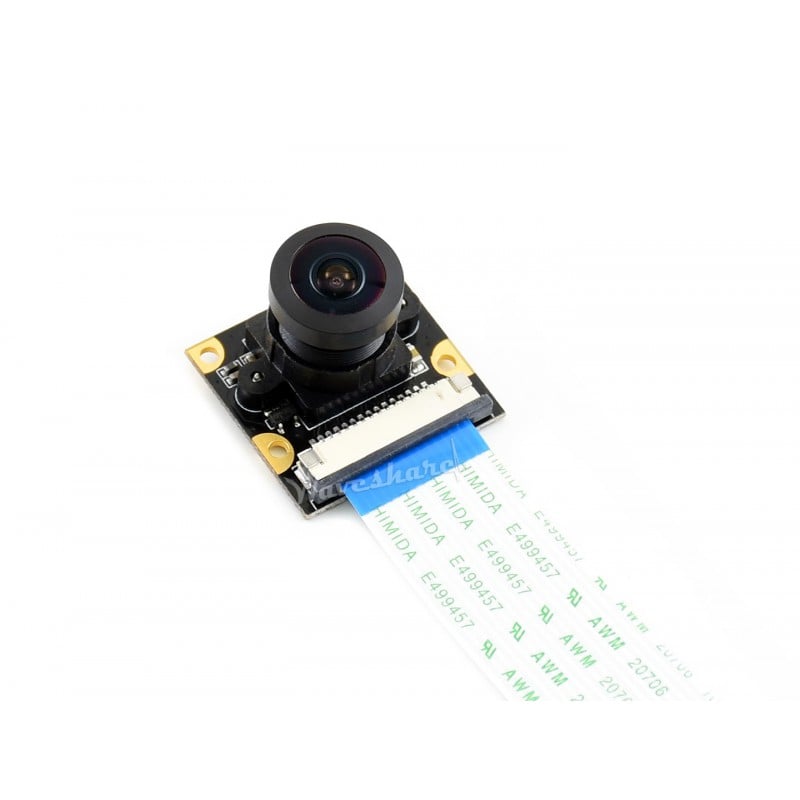

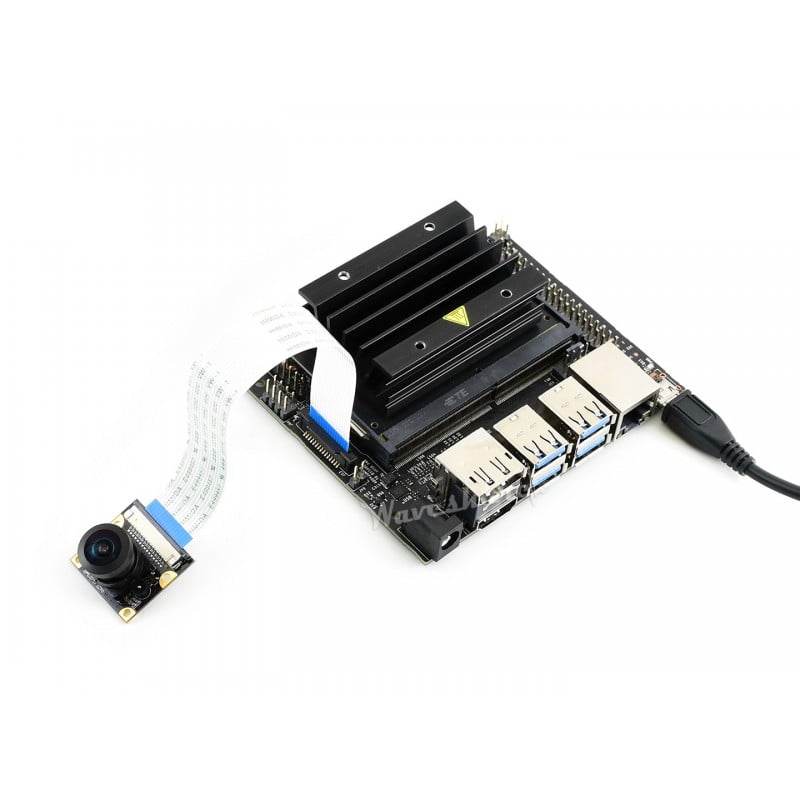

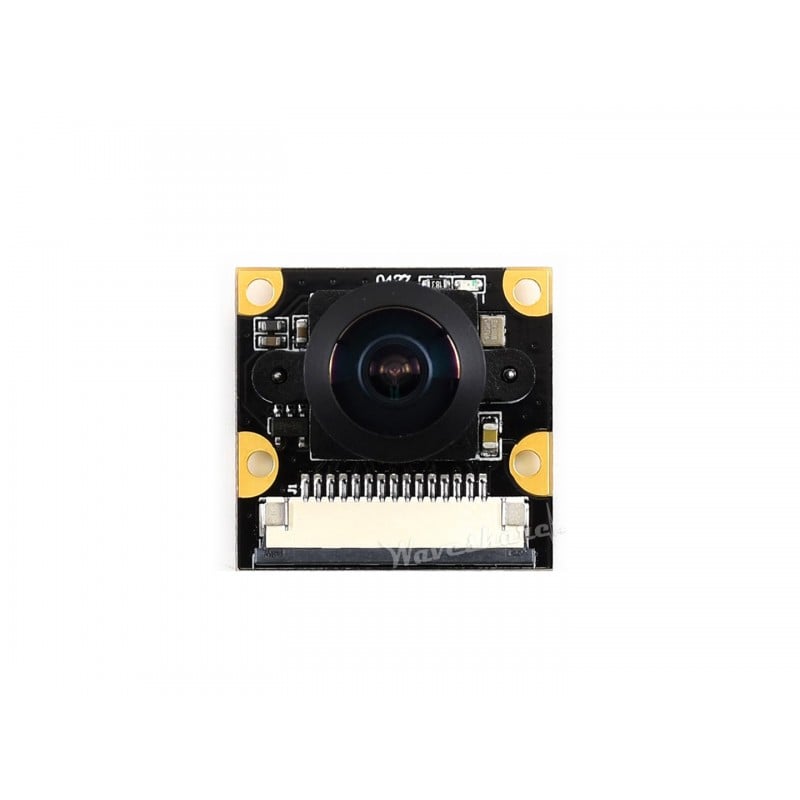

IMX219-160 Camera, Applicable For Jetson Nano, 8 Megapixels, 160° FOV. MX219 Camera, 800 megapixels and 160 FOV. Compatible with Jetson nano. You can also use it with CM3/CM3+ expansion boards like Raspberry Pi Compute Module IO board, Compute Module IO Board Plus, Compute Module POE Board of Waveshare, and the Stereo Pi board.
Applications
1 X Waveshare IMX219-160 Camera
CMOS size |
1/4inch |
---|---|
Aperture (F) |
2.35 |
Focal Length |
3.15mm |
Angle of View (diagonal) |
160 degree |
Distortion |
<14.3% |
Supports |
CM3/3+/4 ,Jetson Nano ,Jetson Xavier NX |
Pixels |
8 MP |
Sensor |
IMX219 |
Resolution |
3280 × 2464 |
4 screw holes |
Used for attachment ,Provides 3.3V power output |
Product weight |
15g |
Dimensions |
25mm × 24mm |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
Out of stock
Camera |
OV2640 |
---|---|
Flash Memory |
4M |
Firmware default communication method |
UART: 115200bps 8N1 |
Maximum resolution |
2MegaPixel |
Unit CAM firmware default picture transfer rate |
12fps |
OV2640 supports output format |
YUV(422/420)/YCbCr422 ,8-bit compressed data ,RGB565/555 ,8-/10-bit Raw RGB data |
OV2640 supports the maximum image transfer rate |
UXGA/SXGA: 15fps ,SVGA: 30fps ,CIF: 60fps |
DFOV |
66.5° |
Length (mm) |
45 |
Width (mm) |
20 |
Height (mm) |
12 |
Weight (gm) |
5 |
