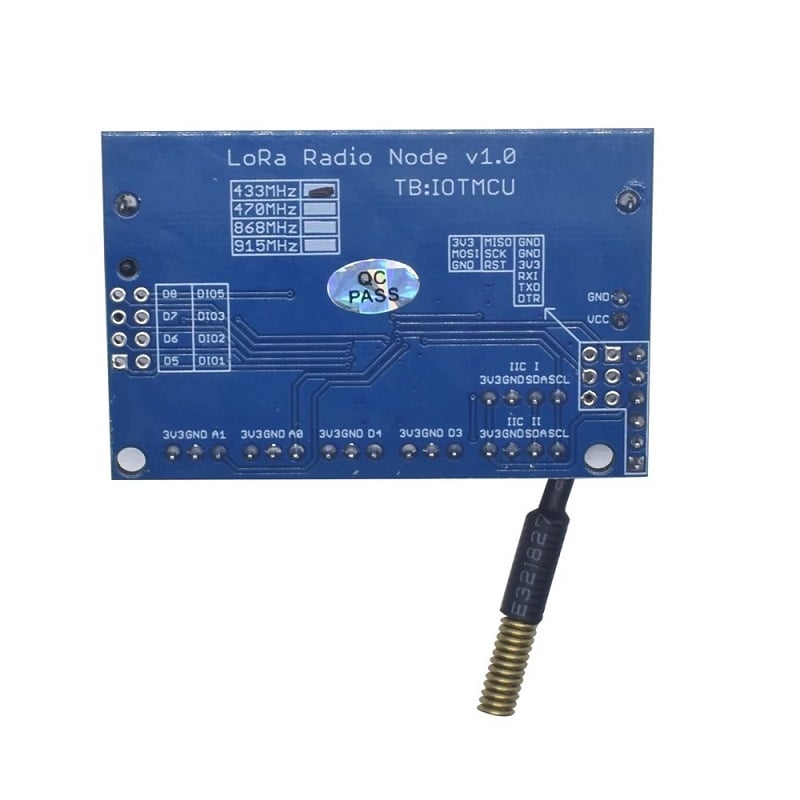

2.4G RFM98 LoRa Radio Node v1.0 Based on S x1278-(868 Mhz)

This LoRa Radio Node v1.0 is based on the ATmega328P and RFM95  868Mhz radio module. The main chip ATmega328P clocked at 8 MHz and at 3.3V logic, and use the Arduino pro mini 8Mhz 3.3V bootloader, which can be used like an Arduino pro mini. This chip has 32K of flash and 2K of RAM. On board with a 3.7Vdc 14500 battery holder, it can be used anywhere you like. In this LoRa Radio Node, we break out 2 i2c ports, 2 analog ports (A0 A1), and 2 digital ports (D3 D4) with 4-pin and 3-pin shell kk type connectors.

These radios are not good for transmitting audio or video, but they do work quite well for small data packet transmission when you need more range than 2.4 GHz (BT, BLE, WiFi, ZigBee).

Features:

1. Power supply: 3.7V 14500 Lipo battery Or 3.7~12Vdc power
2. Operating Frequency: 915 MHz
3. ATmega328P 8MHz with 3.3V logic/power
4. 3.3V regulator with 500mA peak current output
5. Hardware Serial, hardware I2C, hardware SPI support
6. 1 x PWM pins: D3
7. 2 x analog inputs: A0 A1
8. Pin #13 BLUE LED for general purpose blinking
9. 2 mounting holes
10. Size: 40mm x 60mm
11. Reset button

Package Includes:

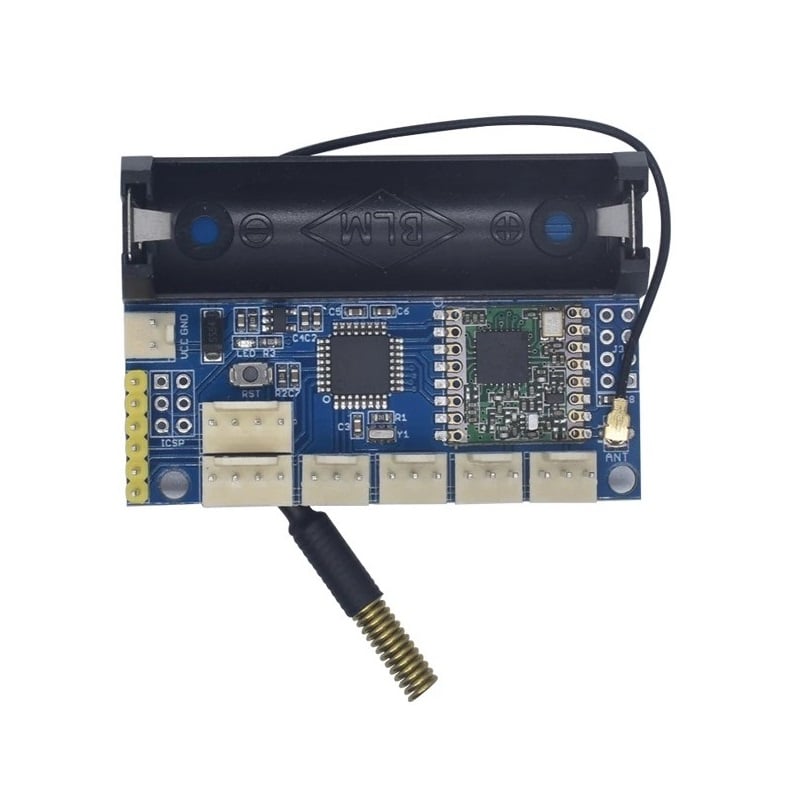

1 x LoRa + ATmega328P Board with 14500 Battery Holder

1 x LoRa 868MHz Antenna
