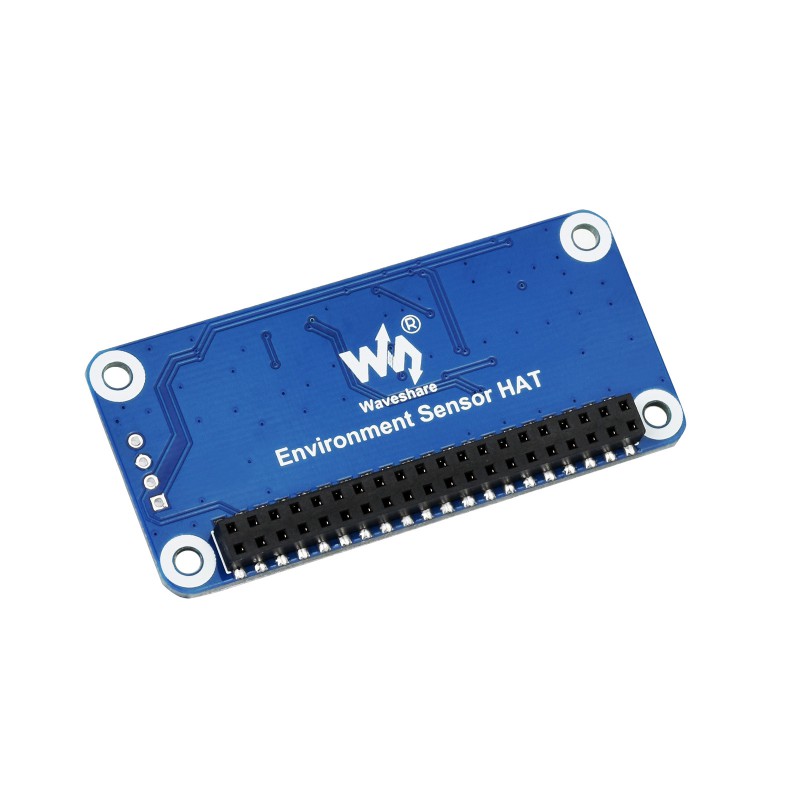

Waveshare Environment Sensor HAT for Raspberry Pi, I2C Bus

This environment sensors module gives Raspberry Pi the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation

Whats on Board:

1. Raspherry Pi 40PIN
   1. For connecting to Raspberry Pi easily
2. TSL25911FN
   1. Digital ambient light sensor, for measuring IR and visible light
3. LTR390-UV-1
   1. UV sensor
4. SGP40
   1. VOC sensor
5. ICM20948
   1. 3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer
6. BME280
   1. Measuring temperature, humidity, and air pressure sensor
7. Voltage level translator
   1. 5V to 1.8V
8. Regular
   1. 5V to 3.3V/1.8V

Features:

1. 40PIN GPIO, Compatible with all the Raspberry Pi Boards.
2. Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
3. Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
4. Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer
5. Onboard LTR390-UV-1 sensor, for measuring UV rays
6. Onboard SGP40 sensor, for detecting ambient VOC
7. Onboard 1.3inch OLED display, for displaying environment data in real-time
8. I2C bus allows reading and displaying data by just using two wires
9. Comes with development resources and user manual (python examples)

Package Includes:

1 x Environment Sensor HAT
1 x 2x20PIN female header
1 x 4PIN header
1 x RPi screws pack (2pcs)
