Adafruit Assembled Adafruit Feather HUZZAH with ESP8266 With Headers

Feather is the flagship development board from Adafruit, and like its namesake, it is thin, light, and lets you fly! We designed Feather to be a new standard for portable microcontroller cores.

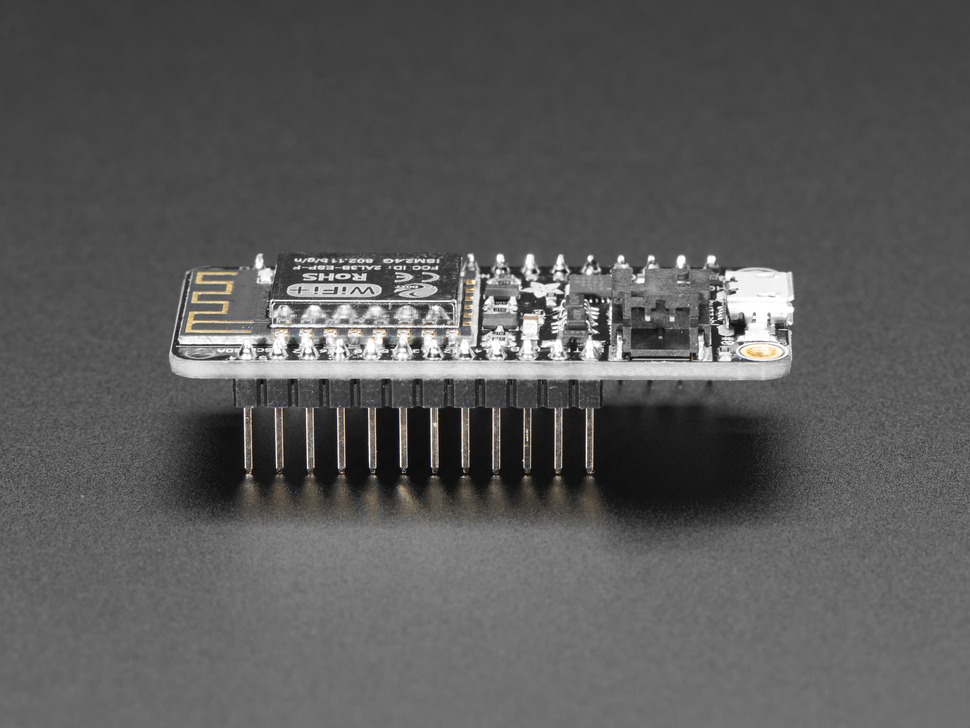

This is the Assembled Adafruit Feather HUZZAH ESP8266 with headers – our take on an ‘all-in-one’ ESP8266 WiFi development board with built-in USB and battery charging and ready to go immediately! It’s an ESP8266 WiFi module with all the extras you need, ready to rock!

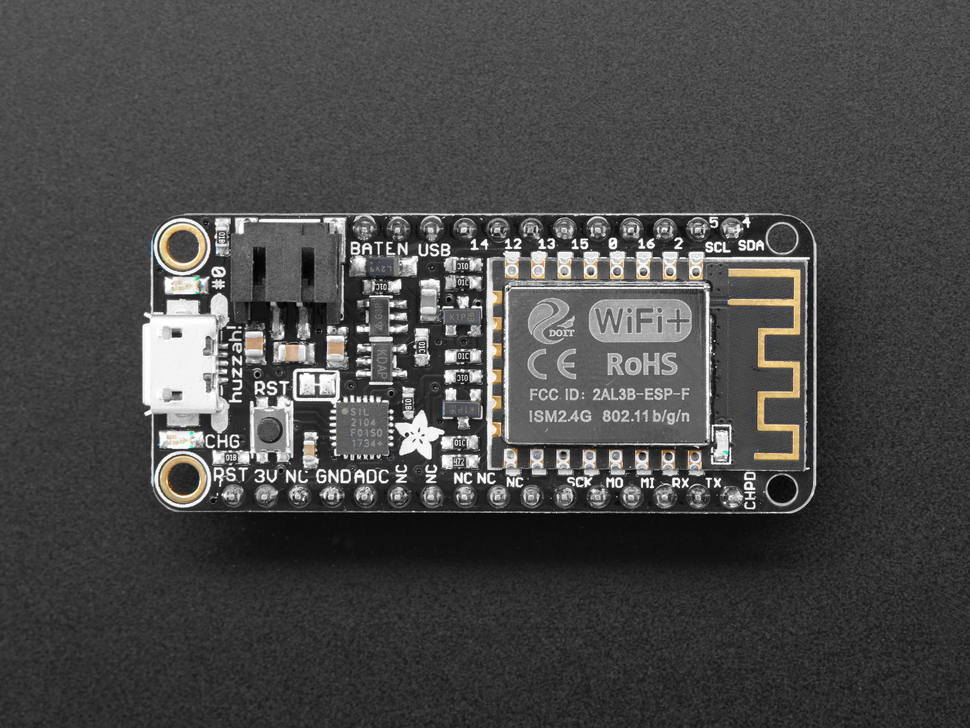

At the Feather HUZZAH’s heart is an ESP8266 WiFi microcontroller clocked at 80 MHz and at 3.3V logic. This microcontroller contains a Tensilica chip core as well as a full WiFi stack. You can program the microcontroller using the Arduino IDE for an easy-to-run Internet of Things core. We wired up a USB-Serial chip that an uploads code at a blistering 921600 baud for fast development time. It also has auto-reset so no noodling with pins and reset button pressings.

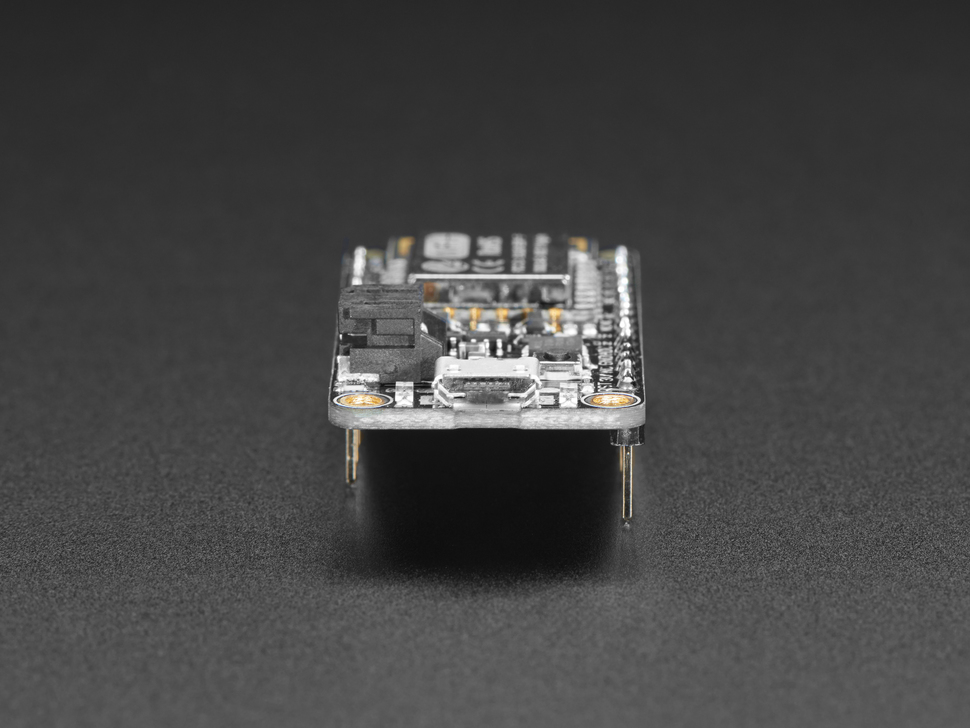

To make it easy to use for portable projects, we added a connector for any of our 3.7V Lithium polymer batteries and built in battery charging. You don’t need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when it’s available

Specifications and Features:

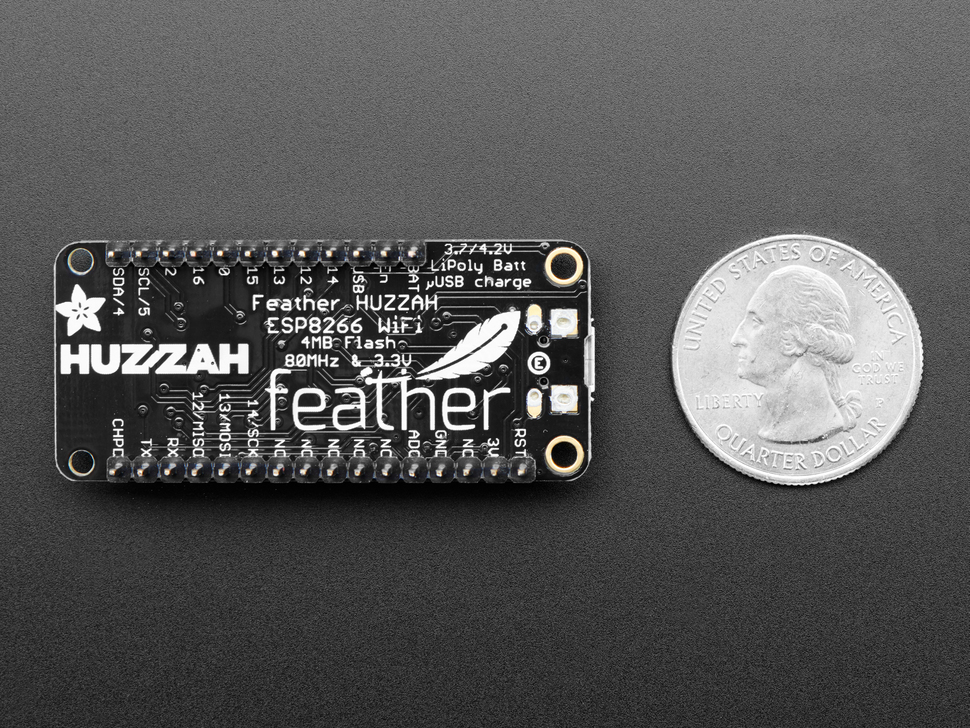

1. Measures 2.0″ x 0.9″ x 0.28″ (51mm x 23mm x 8mm) without headers soldered in
2. Light as a feather – 9.7 grams
3. ESP8266 v1.1 @ 80MHz with 3.3V logic/power
4. 4MB of FLASH (32 MBit)
5. Built in WiFi 802.11 b/g/n
6. 3.3V regulator with 500mA peak current output
7. CP2104 USB-Serial converter onboard with 921600 max baudrate for uploading
8. Auto-reset support for getting into bootload mode before firmware upload
9. 9 x GPIO pins – can also be used as I2C and SPI
10. 1 x analog inputs 1.0V max
11. Built-in 100mA LiPoly charger with charging status indicator LED, can also cut a trace to disable the charger
12. Pin #0 red LED for general purpose blinking. Pin #2 blue LED for boot loading debug & general purpose blinking
13. Power/enable pin
14. 4 mounting holes
15. Reset button

Package Includes:

1 x Adafruit Assembled Adafruit Feather HUZZAH with ESP8266 With Headers
