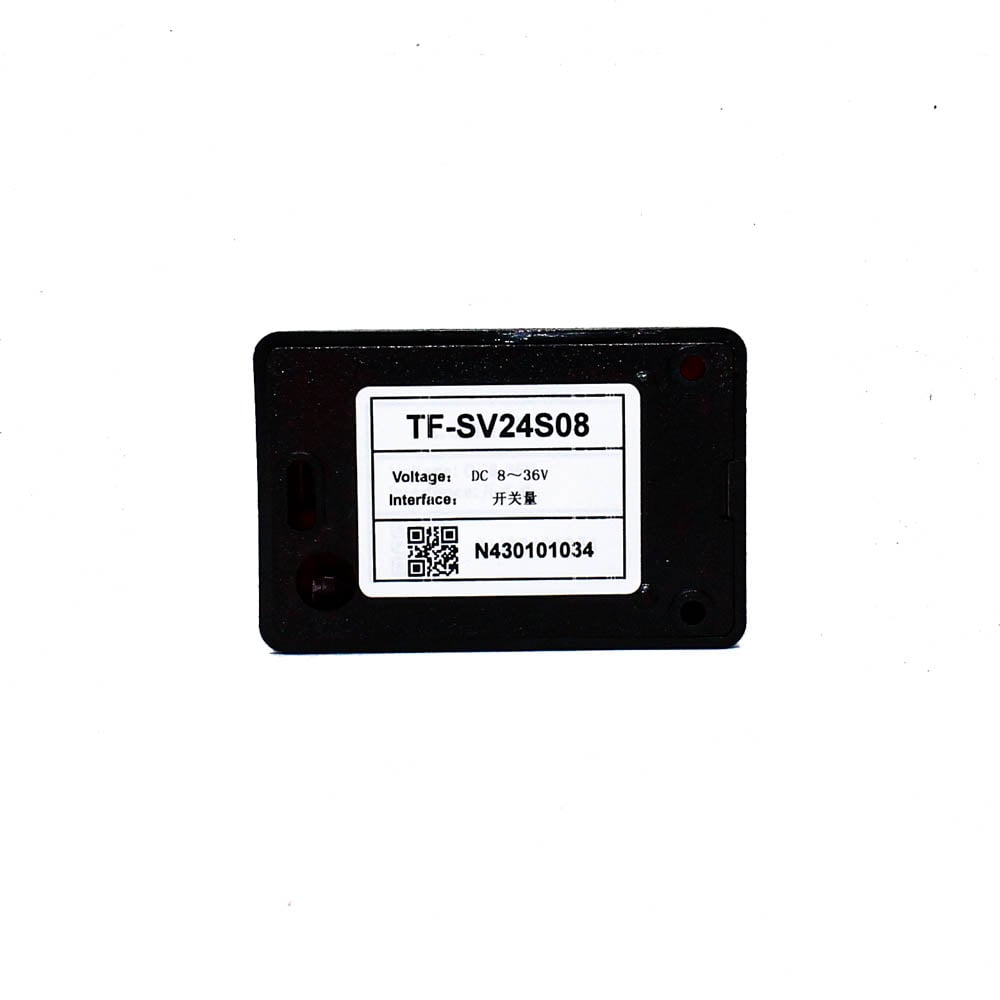

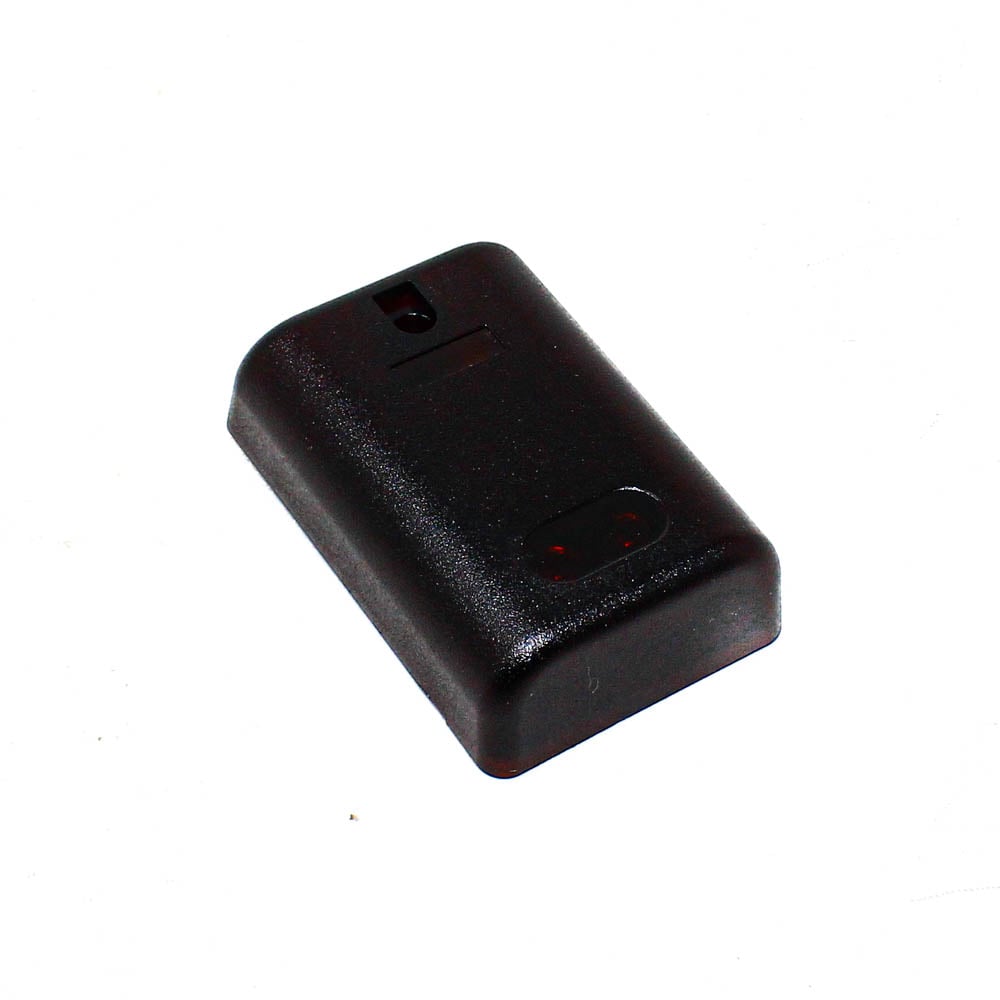

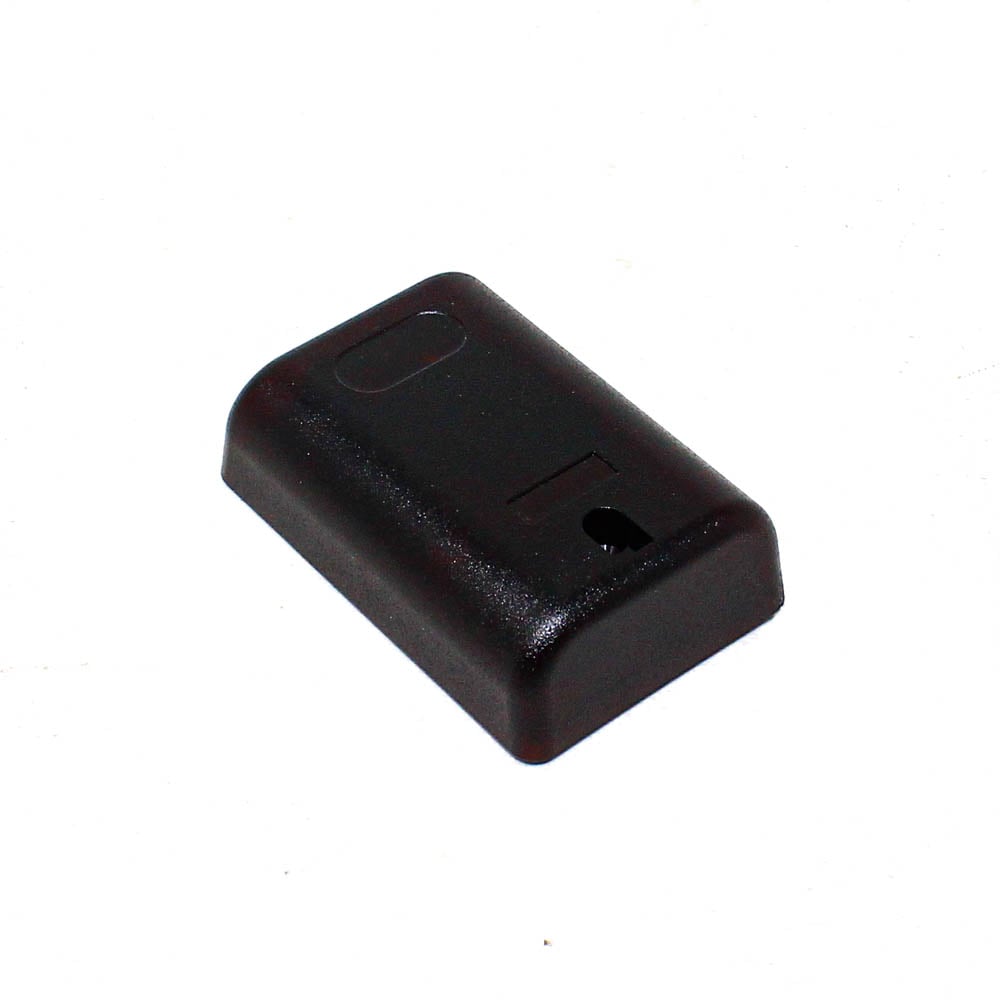

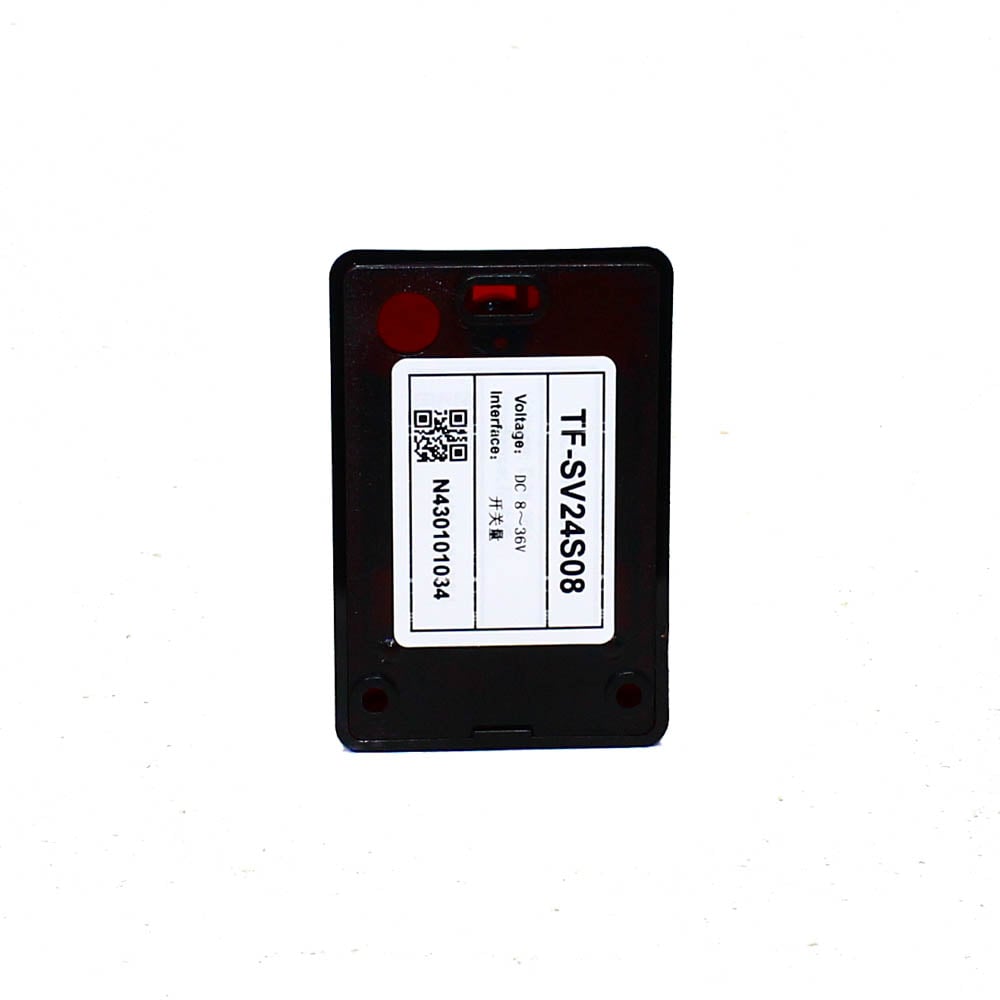

Benewake TF-SV24S08 Lidar Range Finder Sensor Ranging Module

TF-SV24S08 is a single-point LiDAR based relay module. The working principle of LiDAR used by this module works on ToF (Time of Flight). With the unique optical and electrical design, the single-point ranging LiDAR safety sensor can realize stable, accurate and sensitive distance measurement. It is characterized by small size, light weight, low power consumption, and built-in adaptation algorithms for various application environments and targets.

Applications:

1. Parking system
2. Machine security
3. Intrusion detection
4. Any switching application

Features:

1. Distance range up to 8
2. Meters
3. High accuracy
4. Tiny Size
5. Low power consumption

Specification:

1. Supply voltage: 8-36V
2. Color: Black
3. Accuracy: -+6cm%@(0.2m-3m);+-2%@(3m-8m)
4. Light source: VCSEL
5. Frame Rate: 1-250Hz (adjustable)
6. Average Current: <30mA
7. Peak Current: 150mA
8. FoV: 2°
9. Operation temperature: -10~60℃
10. Product weight: 41g
11. Product Dimension: 69.50 x 45.80 x 20mm

Note: For more information refer to Datasheet

Package include:

1 X Benewake TF-SV24S08 Lidar Range Finder Sensor Ranging Module
