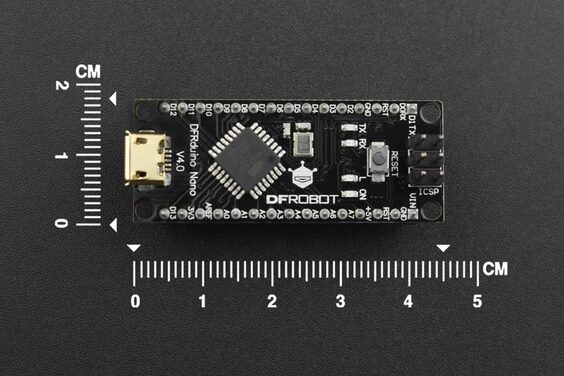

DFRduino Nano (Arduino Nano Compatible)

The DFRduino Nano USB Microcontroller V3.1 (ATMega 328) is a breadboard ready version of the ” Arduino mini” with integrated USB. The “Arduino Nano” has everything that the Diecimila has (electronically) with more analog input pins and an on-board +5V AREF jumper. The “Arduino Nano” automatically senses and switches to the higher power supply, so there is no need for a power select jumper.

The nano’s pin layout works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). The DFRobot DFRduino Nano USB Microcontroller V3.1 (ATMega 328) can be powered via the mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.

Features:

1. Easy to use
2. Low power consumption
3. Plug and play device
4. It is  full compatibility with Arduino
5. Compact size

Specifications:

1. Microcontroller: Atmel Atmega328-20AU
2. Operating Voltage (logic level): 5V
3. Input Voltage (recommended): 7-12V
4. Digital I/O Pins: 14 (of which 6 provide PWM output)
5. Analog Input Pins: 8
6. DC Current per I/O Pin: 40 mA
7. Flash Memory: 32 KB (of which 2KB used by bootloader)
8. SRAM: 2 KB
9. EEPROM: 1 KB
10. Clock Speed: 16 MHz

Packages Includes:

1 x DFRduino Nano (Arduino Nano Compatible)
