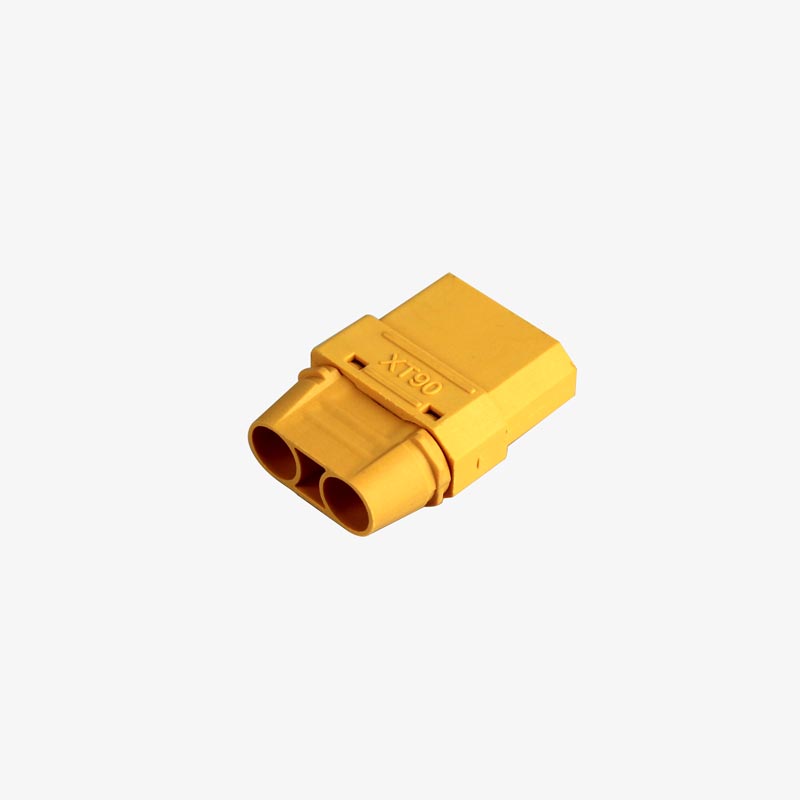

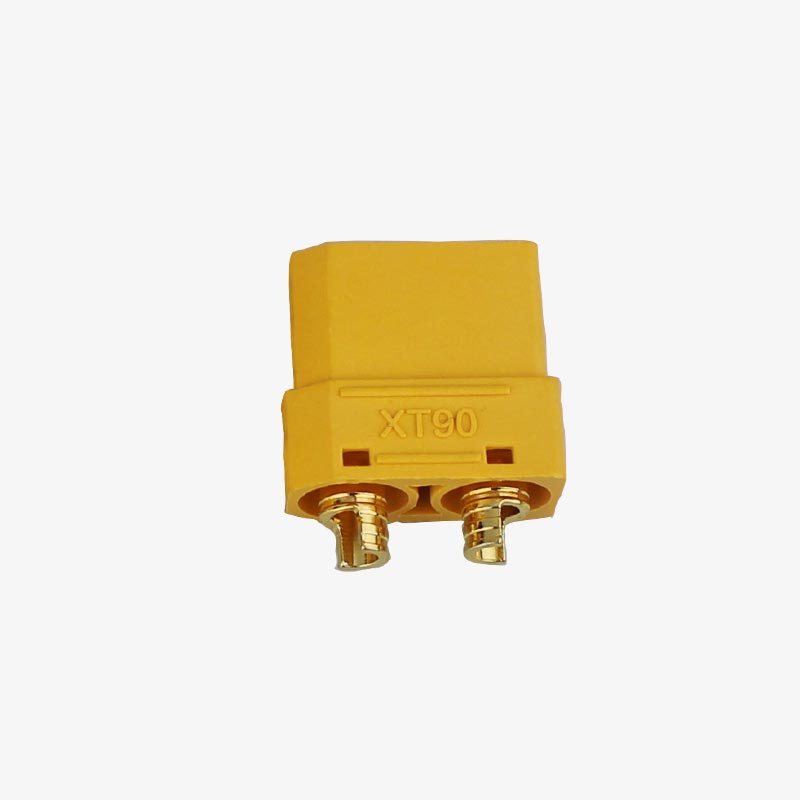

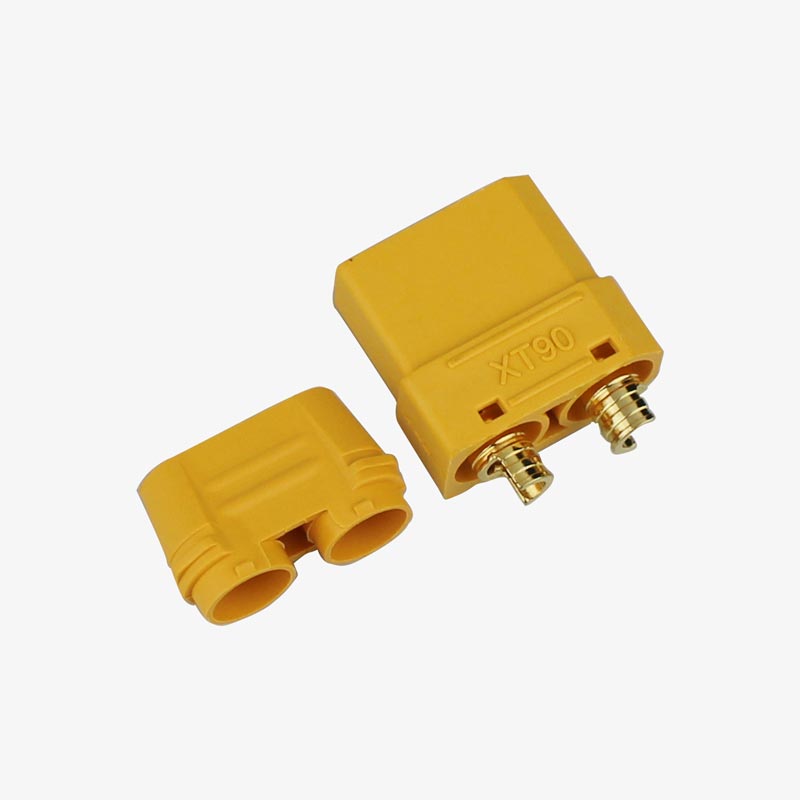

High Quality Gold Plated XT90 Female Bullet Connector with Housing

The XT90 Connectors are built for high current (upto 90A), high temperature applications like EV battery pack, RC cars, Drones etc where high current is involved. The gold plated spring connectors are injected molded into a nylon casing making the construction very robust. This enables the connector to be plugged and un-plugged often without damaging the terminals. Both the Male and the Female connector have Positive and Negative markings on them.

These connectors offer a tight fit, ensuring a solid connection for minimal resistance. This means that more power gets from your pack to your power system when compared to other plugs currently on the market.

These are the original Nylon XT90 plugs, can handle over 90A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.

Applications:

• Electric Vehicle Battery pack connectors
• Solar battery terminal connectors
• RC battery connectors
• Drone or multi-copter battery connectors

Features:

• Able to sustain 90A+ continuous current.
• Housing shape provides protection against shorting and reverse polarity.
• Can accept up to 8AWG wires.
• Semicircular solder terminals make it easy to install wires.

Specifications:

Package Includes:

1 Pc of XT90 Female Connector with Housing
