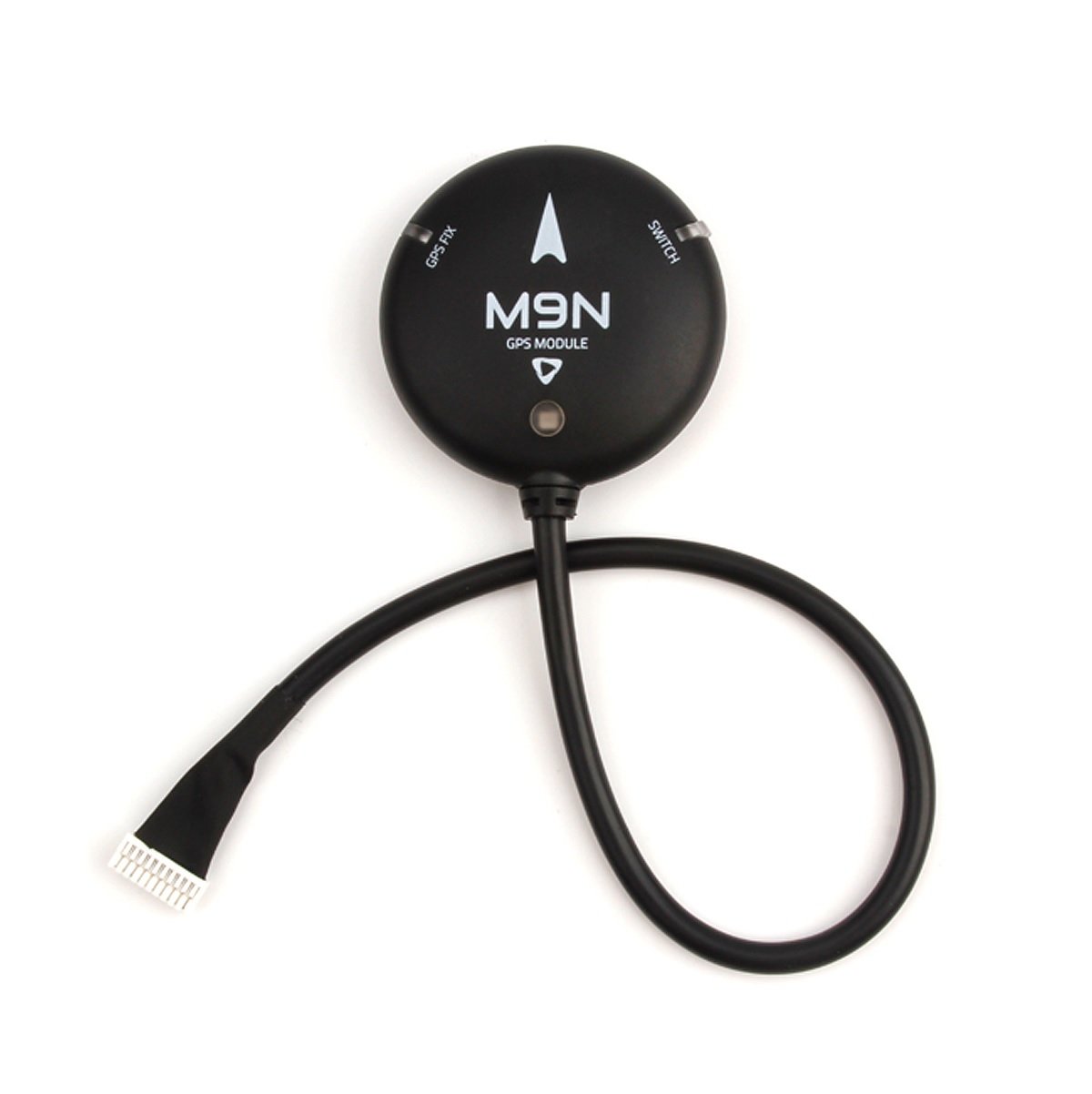

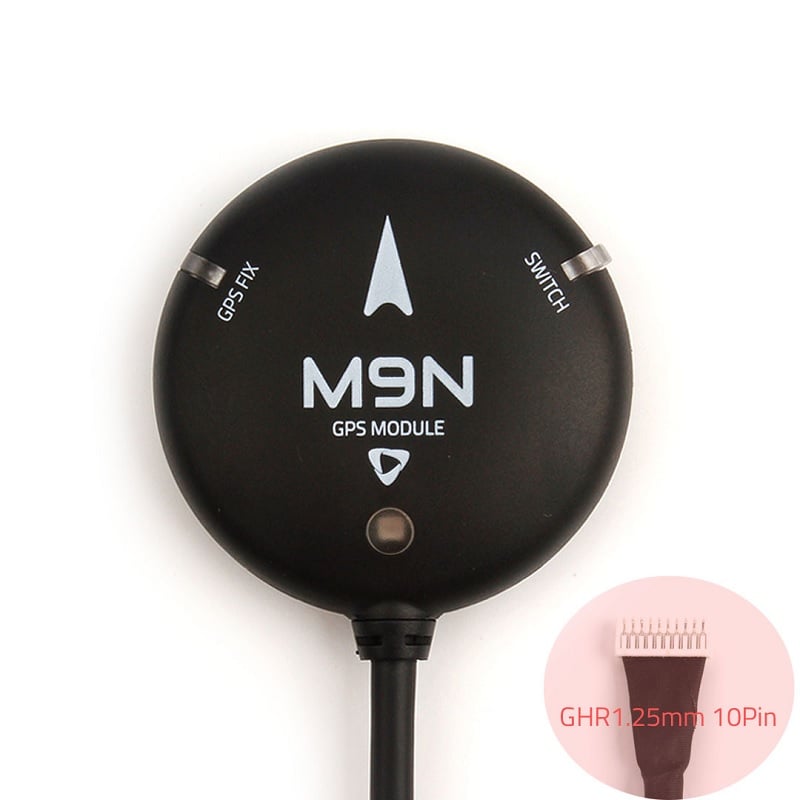

Holybro M9N GPS

The M9N GPS has an UBLOX M9N module, IST8310 compass, tri-colored LED indicator, and a safety switch. There are 3 different connectors options for different purposes.
This module ships with a baud rate of 115200 5Hz

Note: For more info refer to datasheet in attachment section

Features and Specifications:

1. Ublox Neo-M9N module
2. Max concurrent reception of 4 GNSS
3. Industry leading –167 dBm navigation sensitivity
4. Cold starts: 26s
5. LNA MAX2659ELT+
6. 25 x 25 x 4 mm ceramic patch antenna
7. Rechargeable Farah capacitance
8. Low noise 3.3V regulator
9. Current consumption: less than 150mA @ 5V
10. Fix indicator LEDs
11. Protective case
12. 26cm cable included
13. Diameter 50mm total size, 32 grams with case.

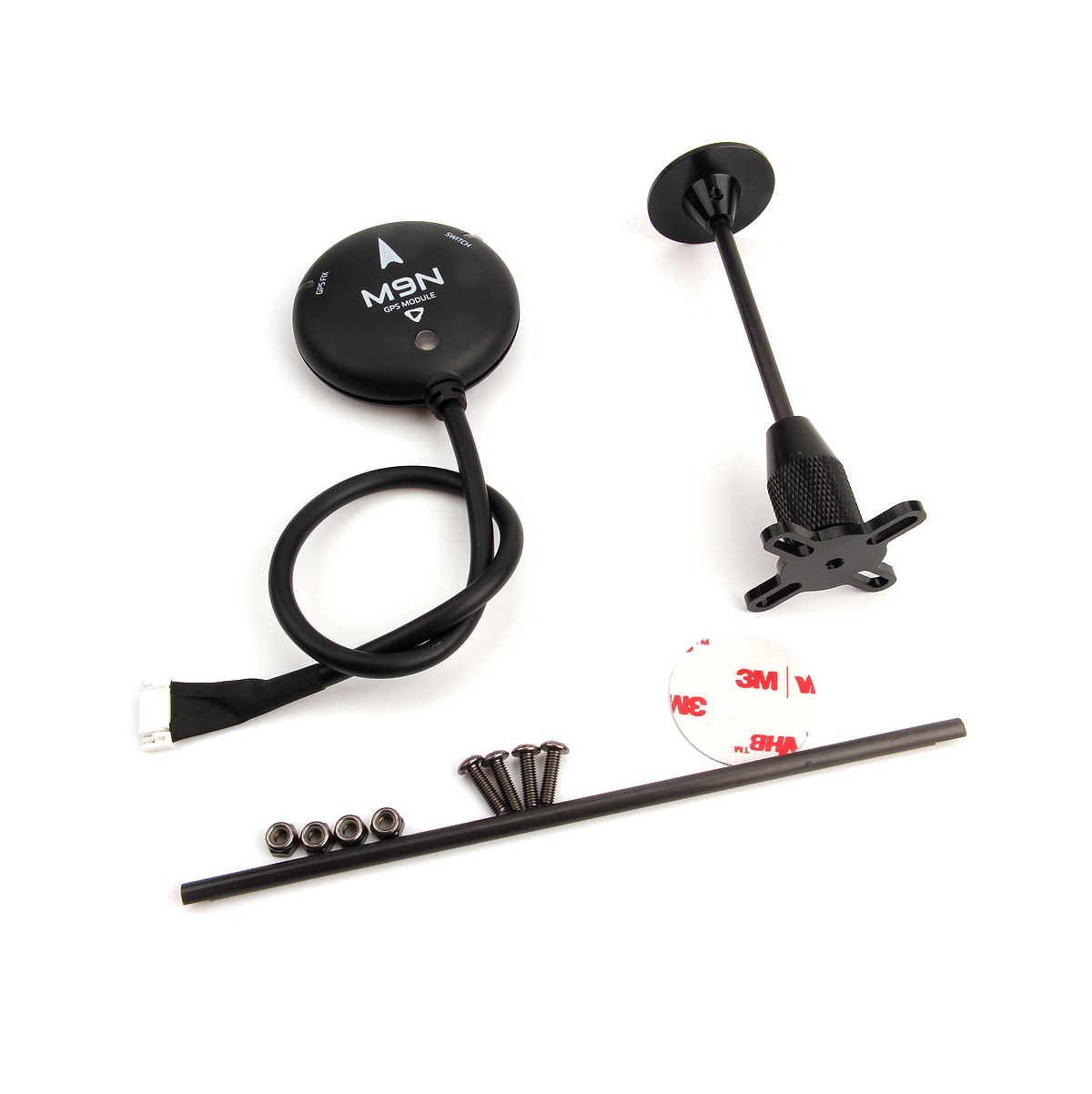

Packages Includes:

1 x M9N GPS Module
1 x ‘X’ type folding pedestal mount
1 x Carbon rod 70mm & 140mm
