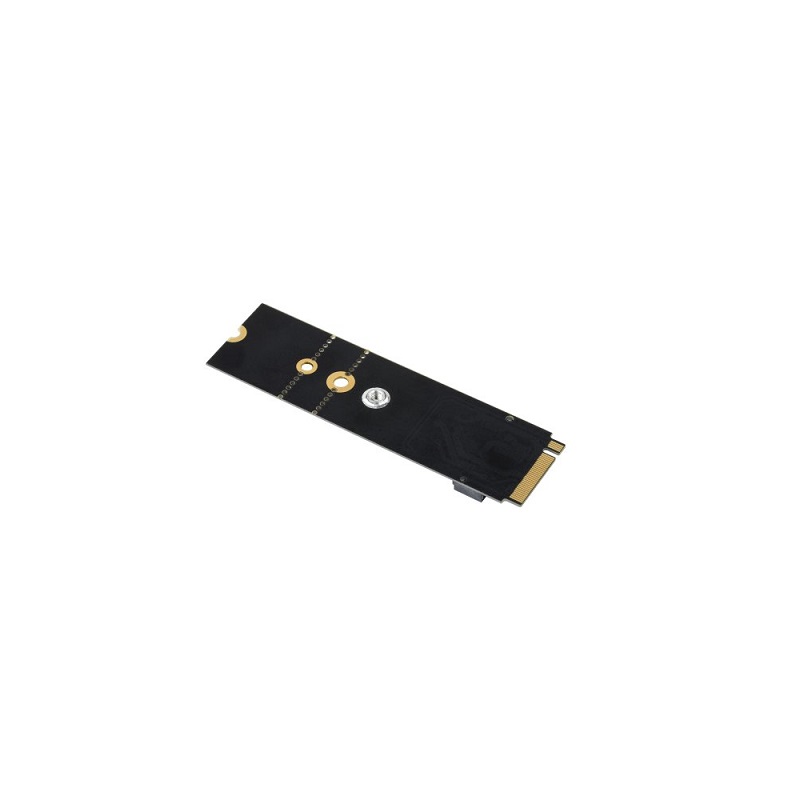

M.2 M KEY To A KEY Adapter, for PCIe Devices, Supports USB Conversion

This is a Waveshare M.2 M KEY To A KEY Adapter, for PCIe Devices, USB Bluetooth. The M. 2 specification identifies 12 key IDs on the module card and socket interface but M. 2 SSDs typically use three common keys: B, M, and B+M. You will find the key type labeled on or near the edge connector (or gold fingers) of the SSD.M.2 modules can integrate multiple functions, including the following device classes: Wi-Fi, Bluetooth, satellite navigation, near field comm, Digital Radio. In this Connector, if you want to connect the m.2 m key to a key. This Types of adapter only Supports with PCI-E channel also In this circuit there is two LED and  The LED1 Will Light Up When Device Is Driven Successfully, The LED2 Keeps Off By Default.

Useful link:

To understand more, please check this tutorial.

Features and Specifications:

1.  Multiple specifications compatible: M.2(A KEY) 2230/2242 to M.2(M KEY) 2260/228

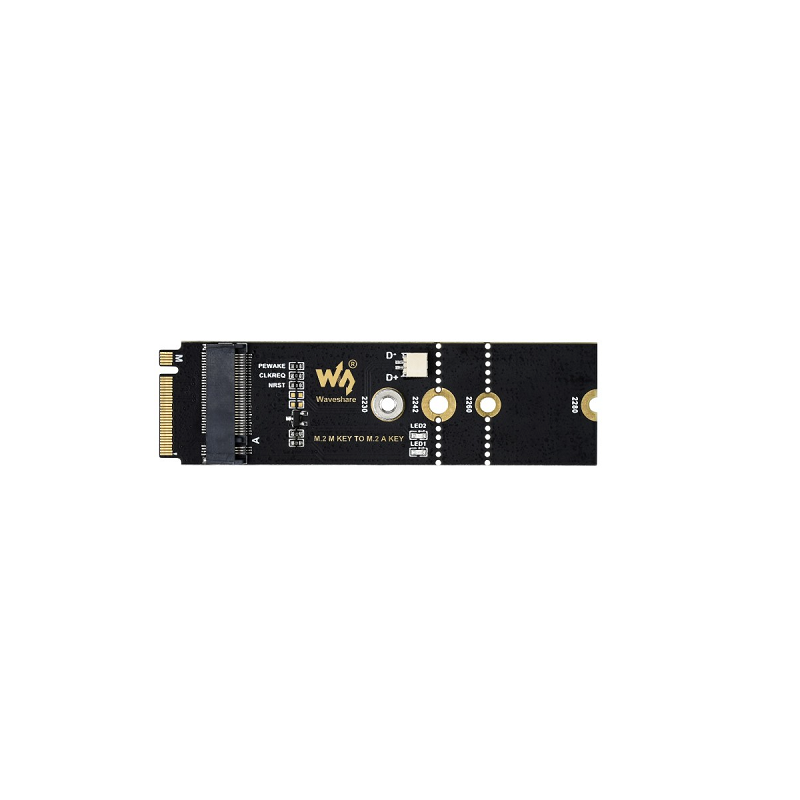

2. LED indicators: the LED1 will light up when the device is driven successfully, the LED2 keeps off by default

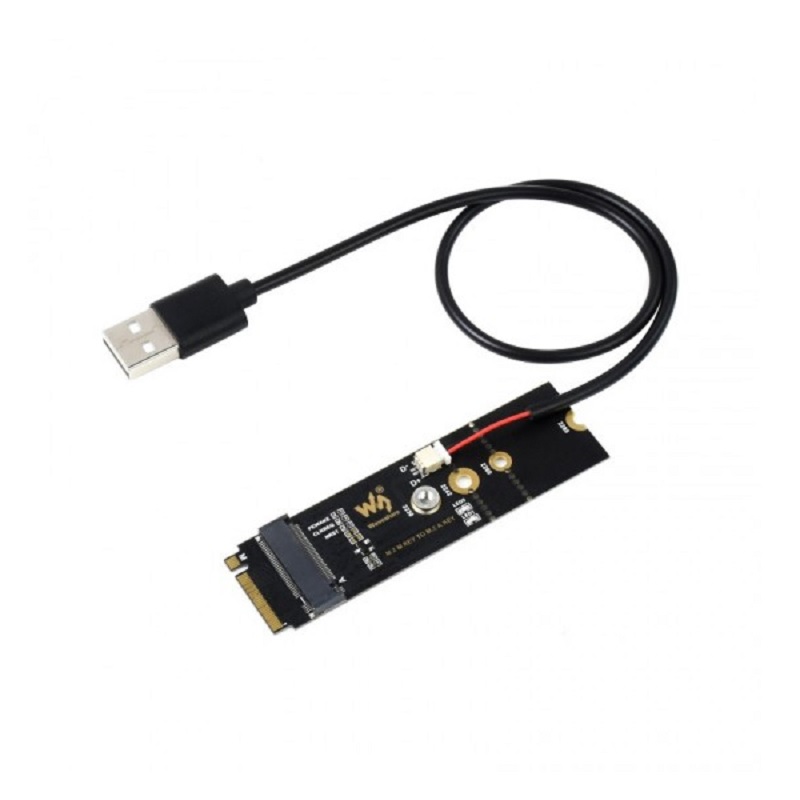

3.  Supports USB conversion: connected via A USB adapter cable

Package Includes:

1 x Waveshare M.2 M KEY To A KEY Adapter, for PCIe Devices, USB Bluetooth
