Matek Mateksys FC F411-WTE Compact Flight Controller

Matek Mateksys F411-WTE Compact Flight Controller & BEC 5V Output Built-in 2-6S ESC 78A Current Senor For  iNAV RC Drone Wing

FC Firmware

• INAV Target: MATEKF411SE

PDB

• Input voltage range: 6~30V (2~6S LiPo)
• 2x ESC power pads
• Battery Voltage Sensor: 1:10 (Scale 1100)
• Current Senor: 78A, 3.3V ADC, Scale 423

BEC 5V output

• Designed for Flight controller, Receiver, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed module
• Continuous current: 2 Amps, Max.3A(5seconds/minute)

BEC Vx output

• Designed for Servos
• Voltage adjustable, 5V Default, 6V option
• Continuous current: 3.5 Amps, Max.5A(5seconds/minute)

BEC 3.3V output

• Designed for Baro / Compass module/OLED and Spektrum RX
• Linear Regulator
• Continuous current: 200mA

Physical

• Mounting: 24 x 24mm, Φ2mm
• Dimensions: 28 x 28 x 14 mm
• Weight: 8.5g

Features:

1. MCU: 100MHz STM32F411CEU6
2. IMU: MPU6000 (SPI)
3. Baro: BMP280 (I2C)
4. OSD: AT7456E (SPI)
5. Blackbox: No
6. 2x Parts
7. 2x Softserial-Tx
8. 2x Motors, 4x Servos outputs
9. 1x I2C
10. 4x ADC (VBAT, Current, RSSI, AirSpeed)
11. 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
12. Switchable Dual Camera Inputs
13. TR/SA VTX control: Yes
14. WS2812 Led control: Yes
15. Beeper output: Yes
16. RSSI: Yes
17. Voltage divider for Analog Airspeed sensor: Yes

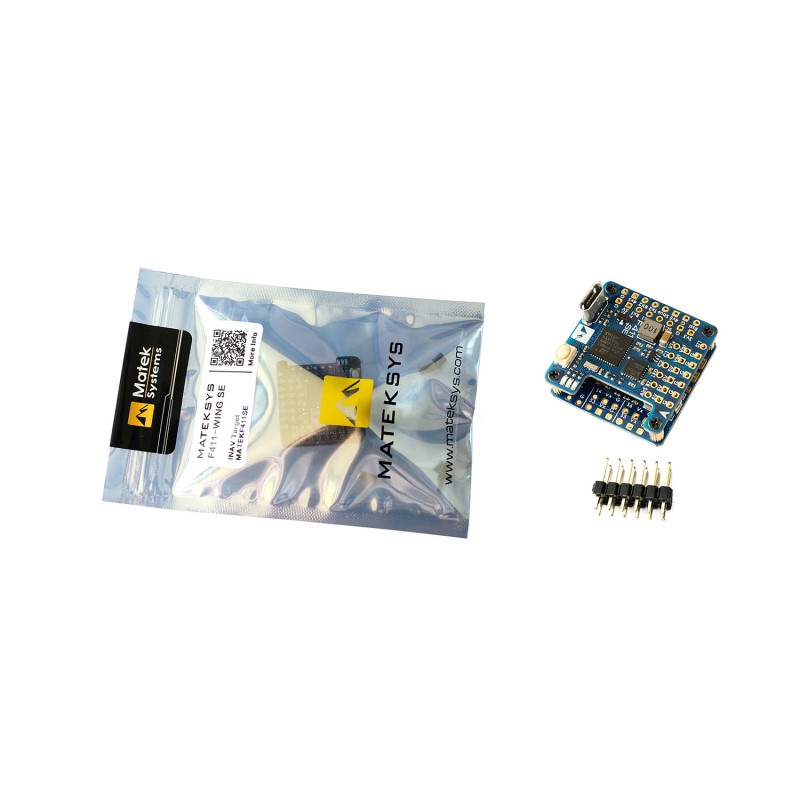

Package Includes:

1 xMatek MateksysF411-WTE Compact Flight Controller
