MAX6675 Module with K Type Thermocouple

SKU: RZ24339129 Category: General

₹ 506.00

Out of Stock

Buy MAX6675 Module with K Type Thermocouple online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 495.88
11 – 30	3%	₹ 490.82
31 – 50	4%	₹ 485.76
51 – 100	5%	₹ 480.70

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category General

Subcategory General

SKU RZ24339129

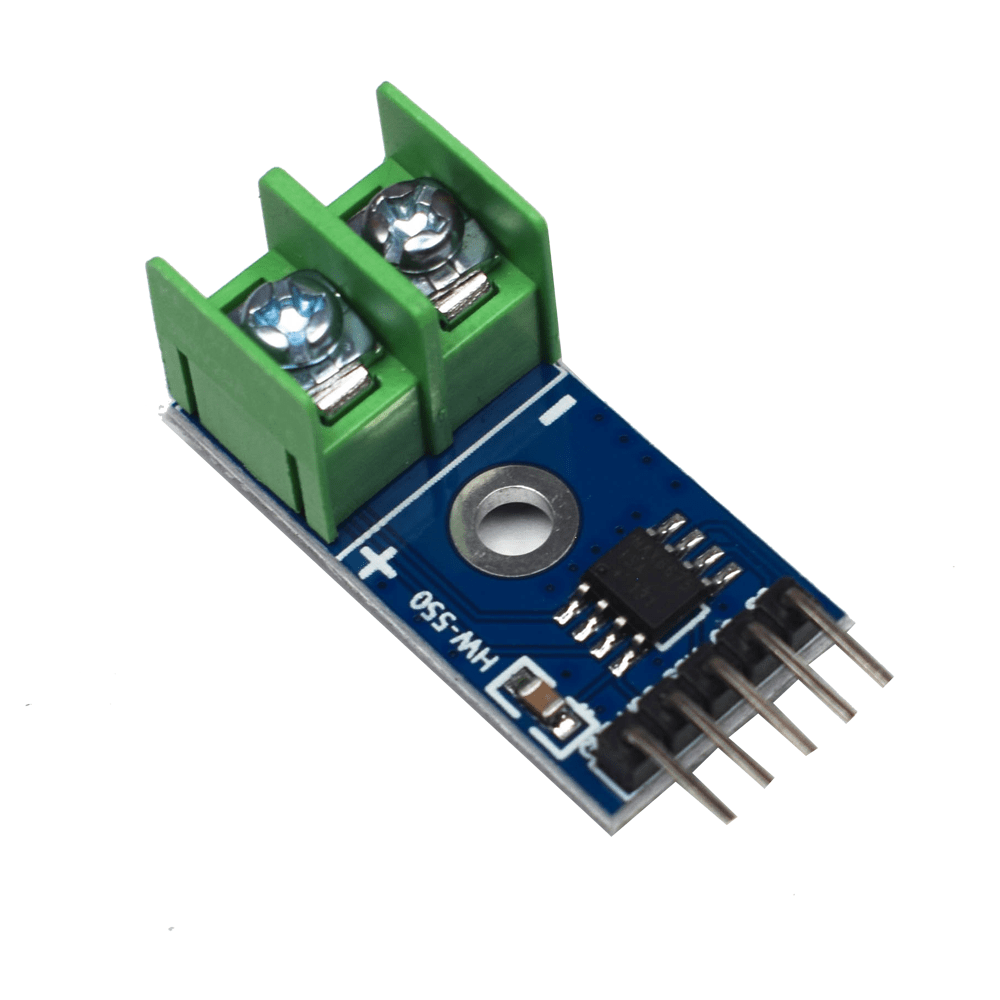

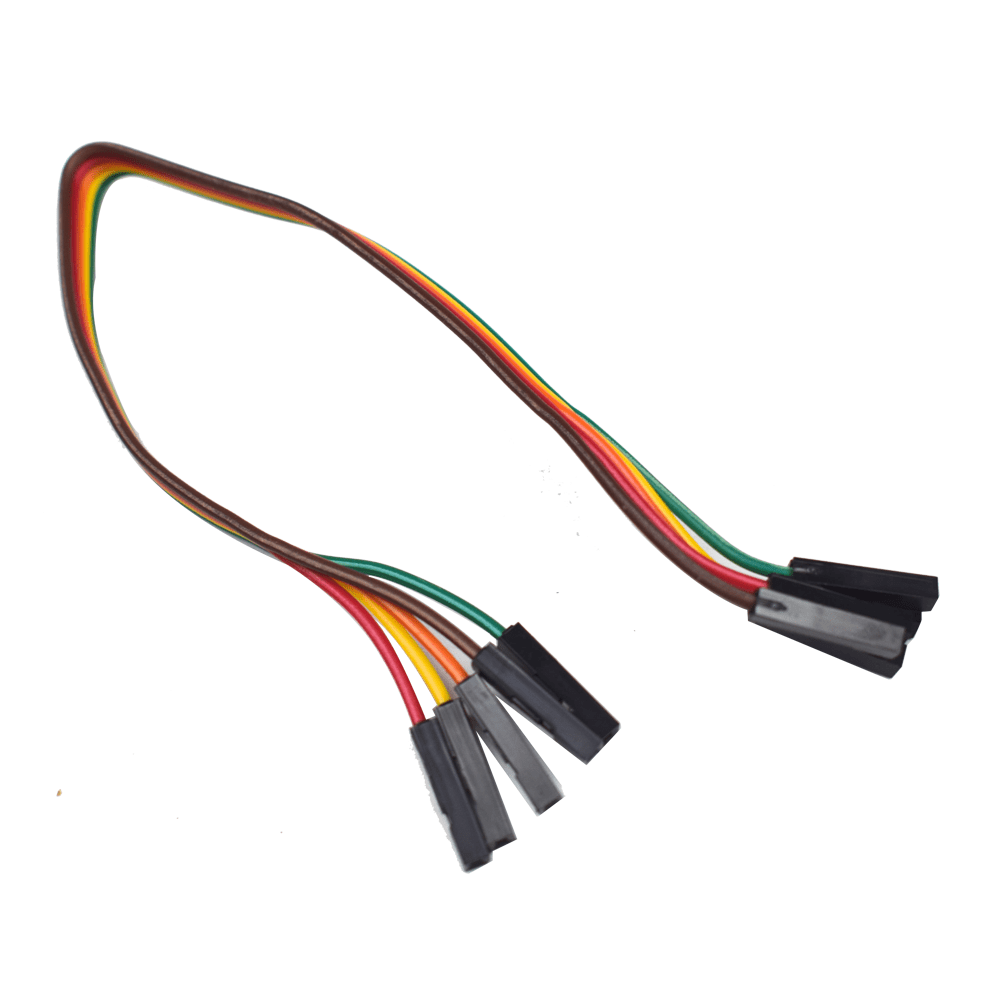

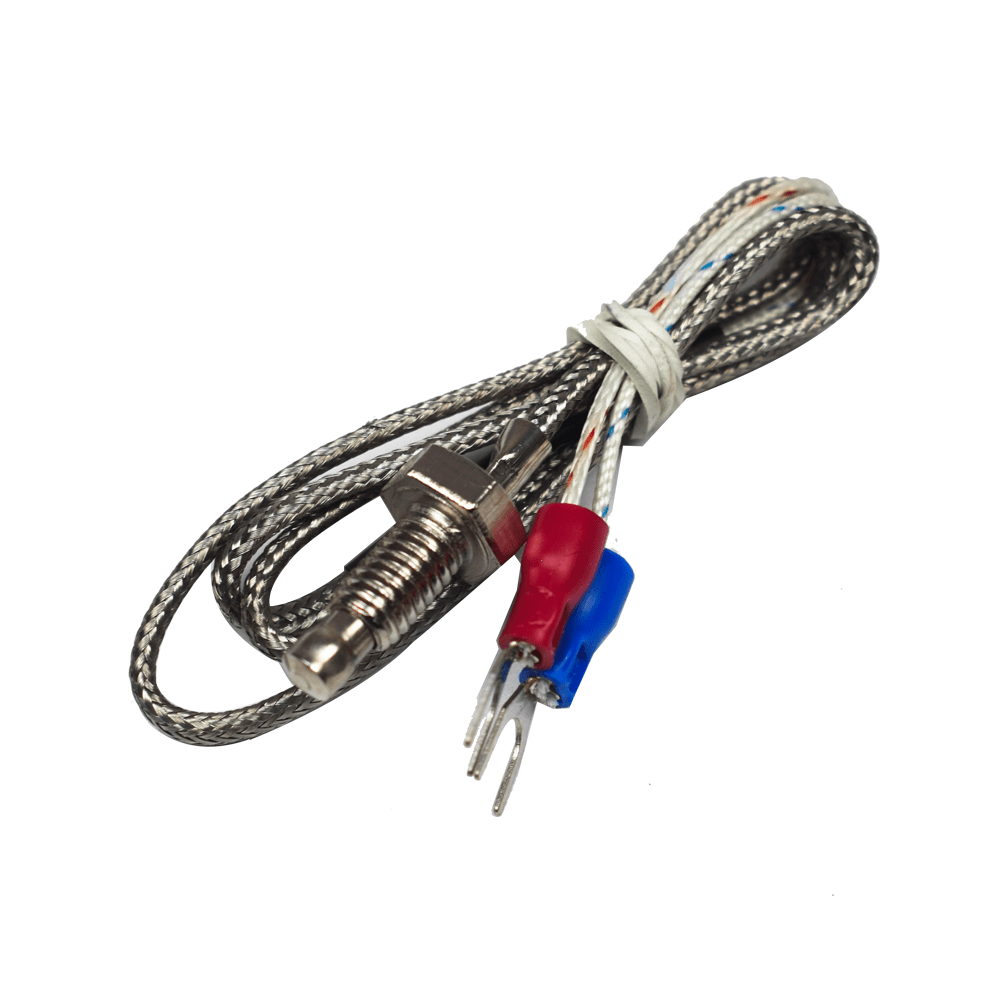

The MAX6675 Module with K-Type Thermocouple with 5 Pin Female-to-female wire. This MAX6675 Module with K Type Thermocouple Sensor Measure 1024°C Temperature sensor employs the MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for accurate temperature compensated measurement of the supplied K-Type thermocouple sensor. It has a 12-bit resolution and can measure temperatures ranging from 0°C to 1024°C with a resolution of 0.25°C (the maximum temperature of the supplied sensor is 450°C).

Features:

K-type temperature probe.
Simple SPI serial output temperature.
High impedance differential inputs.

Specification

Model	Max6675 Module
Type	Thermocouple Sensor
Thermocouple	K-Type
Operating Voltage	5V
Operating Current	50mA
No. of Pins	5 Pin with 2 Terminals
Temperature Range	0°C to 1024°C
Module Dimension	32.4mm16mm13.6mm
K-Type Thermocouple Cable Length	35cm
Cold Junction Compensation Range(°C)	-20 to +80
Country of Origin	China
