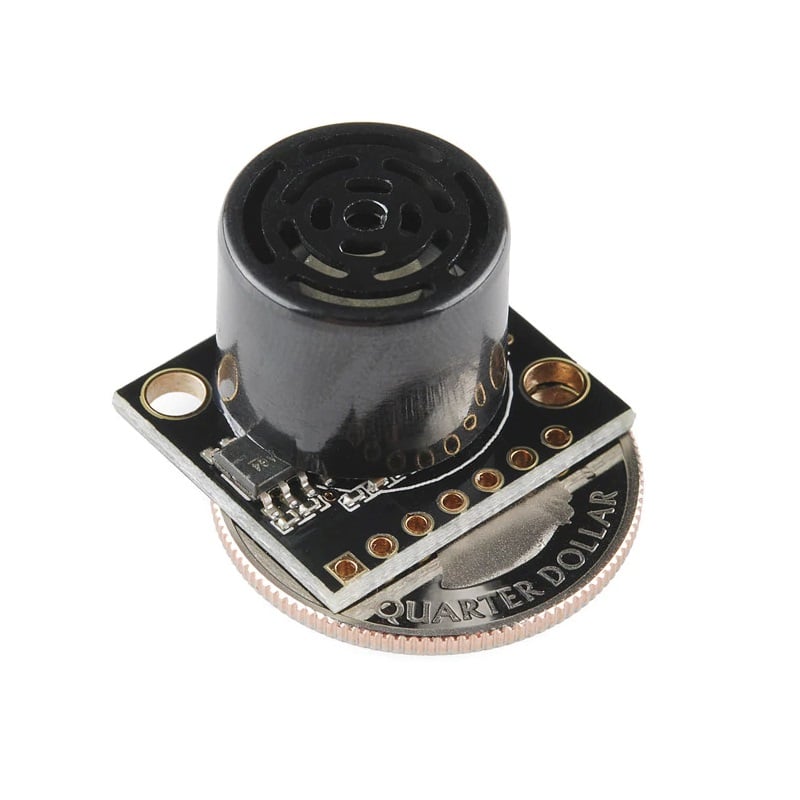

MaxBotix MB1033 HRLV-MaxSonar-EZ3 Ultrasonic Sensor

Features of the MB1033, HRLV-MaxSonar-EZ3, include millimeter resolution, a narrow beam as well as excellent side object rejection, short to long distance detection, range information from 300mm to 5000mm, a 10Hz read rate, and various output options: pulse-width, analog voltage, and a choice of either RS232 or TTL serial.

The MB1033 has slightly wider beam width than the MB1043 which makes it a good choice for applications where the MB1043 does not have enough sensitivity.

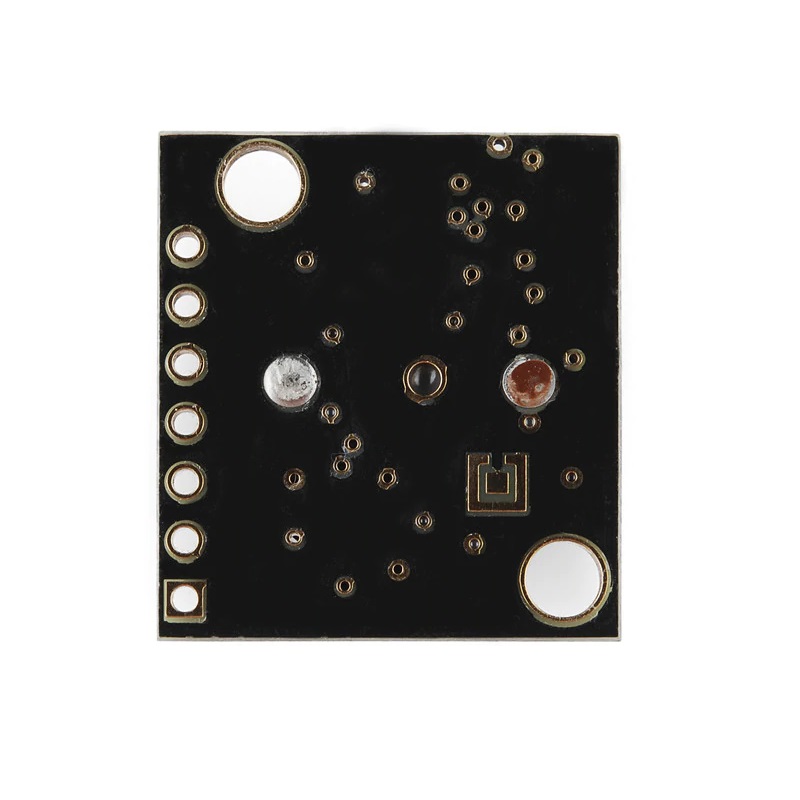

The MB1033 from the HRLV‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.

In addition, the MB1033 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Applications:

1. Proximity zone detection
2. People detection
3. Robots ranging sensor
4. Autonomous navigation Distance measuring
5. Long range object detection
6. Automated factory systems
7. This product is not recommended as a device for personal safety
8. Designed for protected indoor environments
9. Motion detectors

Features:

1. Easy to use interface with distance provided in a variety of outputs
2. Target size compensation provides greater consistency and accuracy when switching targets
3. Sensor automatically handles acoustic noise2
4. Sensor ignores other acoustic noise sources
5. Small and easy to mount
6. Internal temperature compensation
7. Calibrated sensor eliminates most sensor to sensor variations
8. Very low power range, excellent for multiple sensors or battery based systems
9. Low-cost ultrasonic rangefinder
10. Size less than 1-cubic inch with easy mounting
11. Accuracy is factory-matched providing a typical accuracy of 1% or better
12. Cost-effective solution where precision range-findings are needed
13. Sensor component allows users to lower the cost of their systems without sacrificing performance

Specifications:

1. Operates Voltage: 2.5V-5.5V
2. Current: 3.1mA
3. Resolution: 1‑mm
4. Reading rate: 10Hz
5. Measures distance to objects: 42kHz
6. RoHS compliant
7. Operational Temperature from -0C to +65C (+32F to +149F)
8. Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
9. Maximum range of 5000 mm (195 inches)
10. Virtually no sensor dead zone, large objects closer than 30 cm are typically reported as 30 cm
11. Accuracy is factory-matched providing a typical accuracy of 1% or better

Note: For more info refer Datasheet

Packages Includes:

1 x MaxBotix MB1033 HRLV-MaxSonar-EZ3 Ultrasonic Sensor
