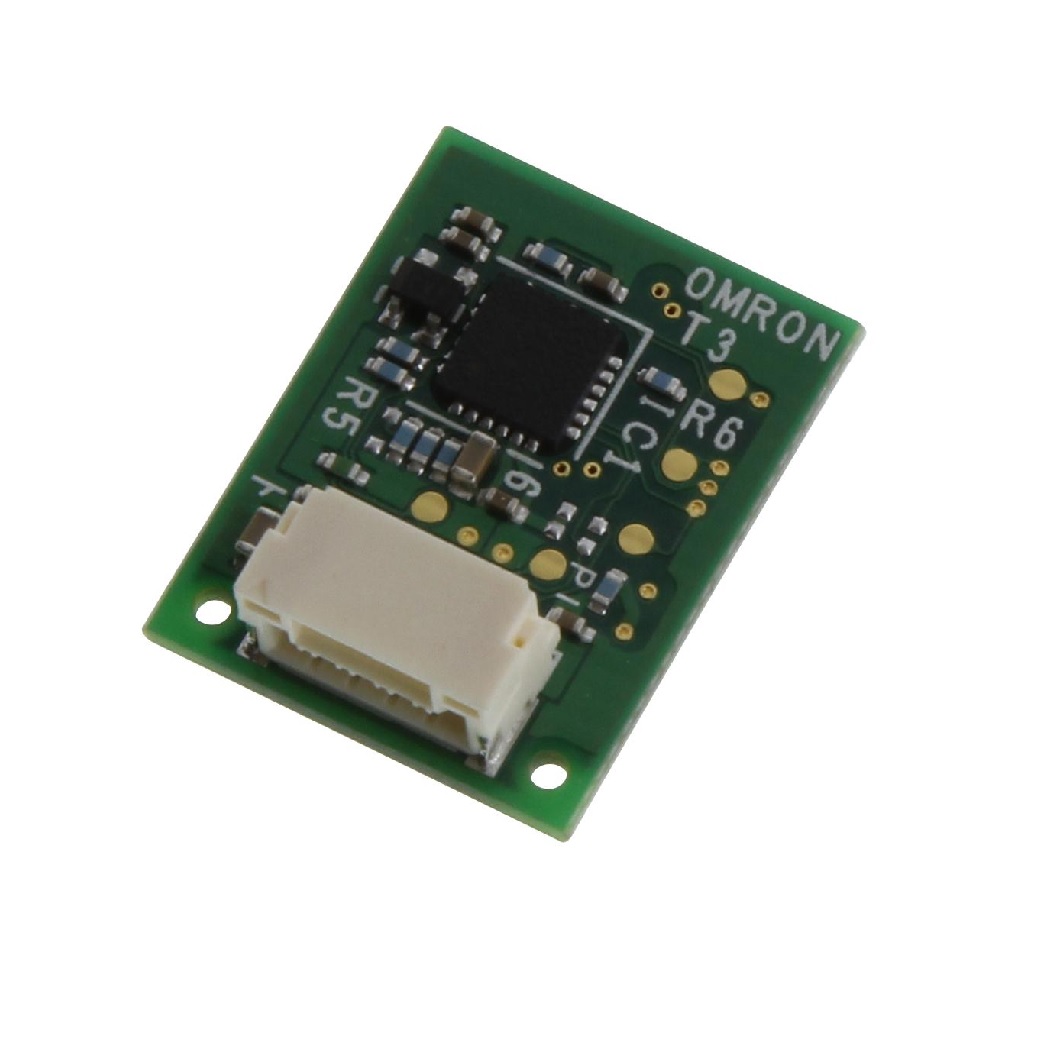

OMRON D6T-44L-06H THERMAL IR SENSOR, 5-200DEG C, I2C

A thermal IR sensor uses infrared energy as heat for detection and its sensitivity is independent of wavelengths. Therefore, it can detect objects in the near IR, mid IR, and far IR bands. The non-contact detectors do not require cooling after exposure but have slow response times and low resolution

Applications:

1. Factory Automation
2. Smart Home & Building

3. Cooking Equipment
4. FA Equipment

Specifications:

1. Model: D6T-44L-06H
2. Product: THERMAL IR SENSOR
3. Number of elements: 16 (4×4)
4. View Angle: X direction = 44.2°, Y direction = 45.7°

5. Object temperature Detection range: 06H:5～200°C

6. Reference temperature Detection rang: 5～45°C

7. Communications: I2C

Note: For more info refer to datasheet

Packages Includes:

1 x OMRON D6T-44L-06H THERMAL IR SENSOR, 5-200DEG C, I2C
