QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller
Buy QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller online, Order today
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
It's a QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller.
Specification

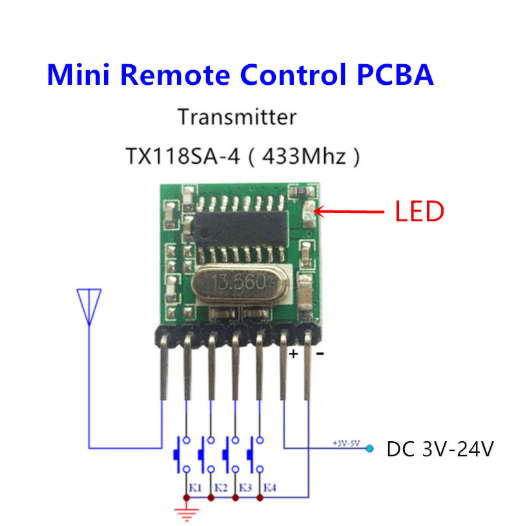

- Model: TX118SA-4
- Transmitting power: 11dbm
- Distance: 30-100m
- Emission current: 10MA
- Rate of fire: maximum 10KB / S
- Transmit deviation: +/- 7. 5KHZ / narrow-band emission
- Modulation: ASK
- Operating Voltage: DC 3V-24V
- Encoding : EV1527 1527 Learning code
- Each module has a unique ID address code.
- All modules K1-K4 four key code is the same.

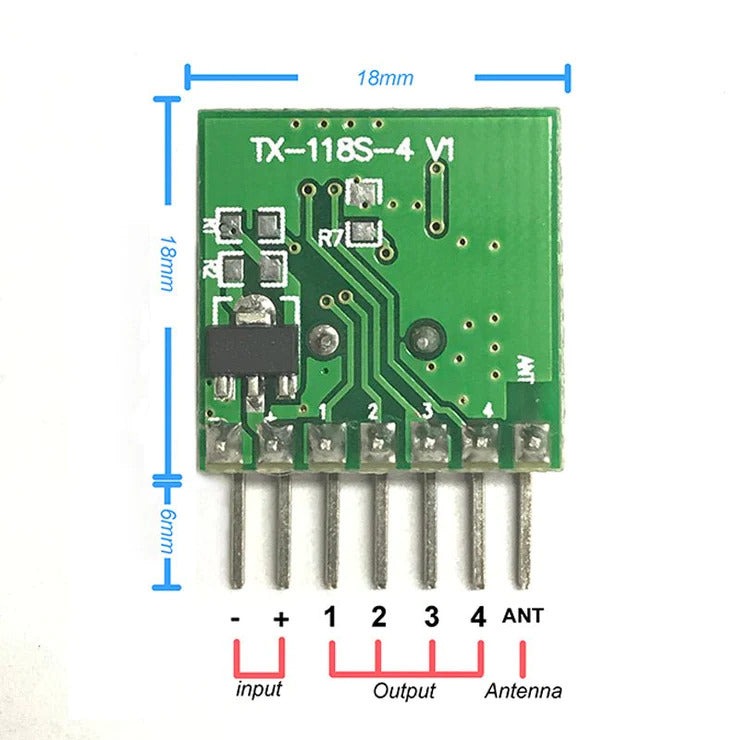

Pin Description:
- : Negative power supply
+: Positive power supply, DC 3-24V
Pin Description:
- : Negative power supply
+: Positive power supply, DC 3-24V
K1: 1 short to Negative start transmitting data, Similar the A button on the remote control.
K2: 2 short to Negative start transmitting data, Similar the B button on the remote control.
K3: 3 short to Negative start transmitting data, Similar the C button on the remote control.
K4: 4 short to Negative start transmitting data, Similar the D button on the remote control.
ANT: transmitting antenna
