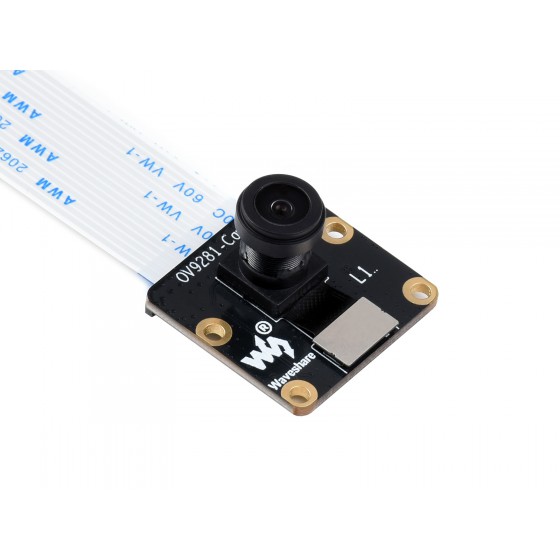

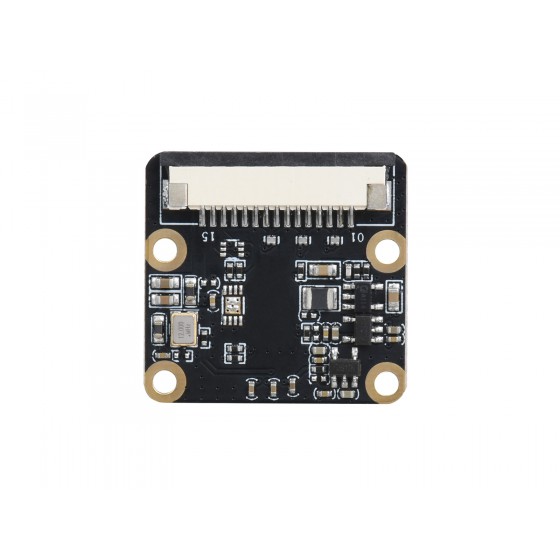

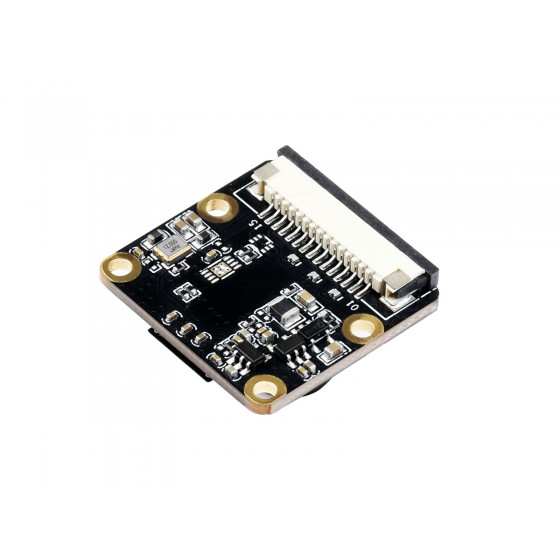

Waveshare OV9281-120 Mono Camera for Raspberry Pi, Global Shutter, 1MP

global shutter 1280×800 resolution OV9281 camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. One adapter board can connect FOUR cameras on a single Raspberry Pi board, and includes support for the High-Quality Camera

The sensor’s global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head, and eye tracking, and depth and motion detection. With this capability, device manufacturers can implement a monochrome or NIR camera device and reduce memory use by using the Y8 stream format. A monochrome camera can serve as the underlying physical camera of a logical multi-camera device to achieve better low-light noise characteristics  The Raspberry Pi Camera Module 2 replaced the original Camera Module in April 2016. The v2 Camera Module has a Sony IMX219 8-megapixel sensor (compared to the 5-megapixel OmniVision OV5647 sensor of the original camera). The Camera Module 2 can be used to take high-definition video, as well as stills photographs.

Useful link:

To use this camera, please follow this tutorial for hardware and software setup.

Applications:

1. Security
2. High dynamic range imaging
3. Unattended surveillance
4. Stereo vision
5. Machine vision
6. Automation

Features:

1. Sensor: Monochrome global shutter OV9281
2. Pixel Size: 3 μm x 3 μm
3. Active array size: 1280 x 800
4. Optical Size: 1/4 inch
5. Focusing Range: 65mm ~ infinite
6. IR Sensitive: Visible light only, build-in 650nm IR cut filter
7. Output interface: 1-lane MIPI serial output with Arducam SDK.
8. Output formats: RAW 8/10
9. Maximum image transfer rate: 1280 x 800@120 fps with the Official driver/Arducam SDK.
10. Board Size: 40mm x 40mm
11. Lens Specs: FoV – 166°(D), EFL – 0.83mm, F.NO – 2.0

Specifications:

1. Sensor: OV9281
2. CMOS size: 1/4 inch
3. Camera type: mono
4. Pixels: 1MP (1280 × 800)
5. Shutter: Global Shutter
6. Aperture: F2.5
7. Distortion: < 7.5%
8. Field of view: 120°(D)
9. Focal length: 3.15mm
10. Focusing: Fixed Focus

Packages Includes:

1 x Waveshare OV9281-120 Mono Camera for Raspberry Pi, Global Shutter, 1MP
