Description

The KEMET HHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si dust cores and are useful in various
fields, such as DC/DC converters and differential noise countermeasures.

Applications:

1. Switching power supply outlet
2. DC-DC converter
3. Phase compensation
4. Boost converter
5. Normal mode noise countermeasure

Features:

1. Fe-Si dust core material
2. Available for noise countermeasure as well as general use
3. Good balance of core loss and DC superposition characteristics
4. Wide variety of sizes and specifications
5. Operating temperature range from −40°C to +125°C

Specifications:

1. Rated Current Range:  2 – 30 A
2. Rated Inductance Range: 24 – 311 µH at 0 A ±20%
3. Inductance Measurement Condition: 100 kHz, 1 mA
4. Wire Type: 1 UEW & 1 PEW
5. Operating Temperature Range: −40°C to +125°C (include self temperature rise)

Packages Includes:

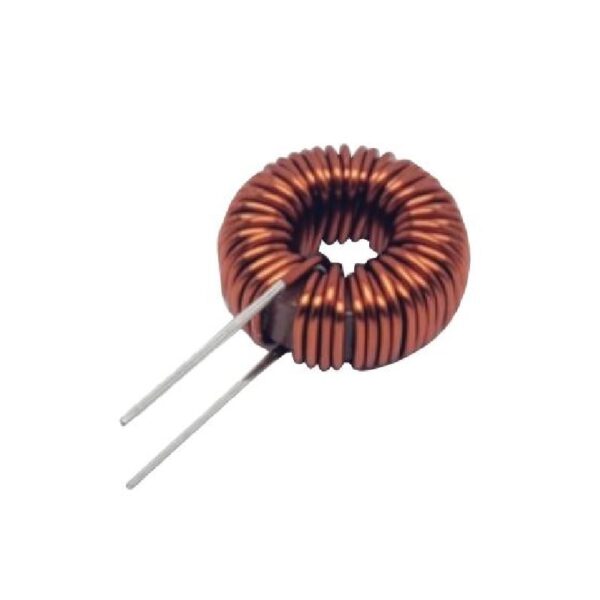

1 x High Current Toroidal Inductor
