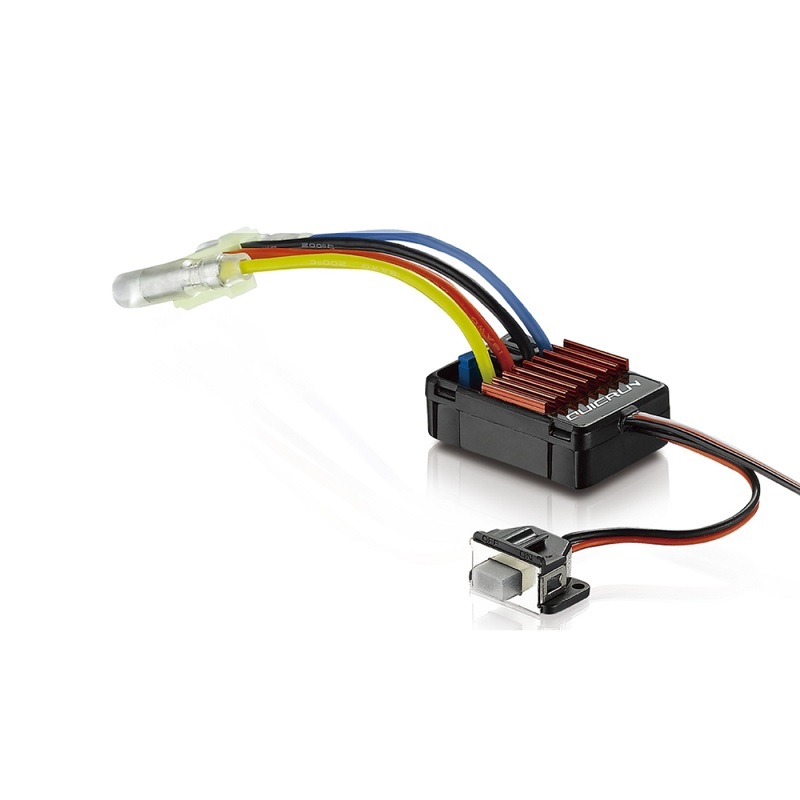

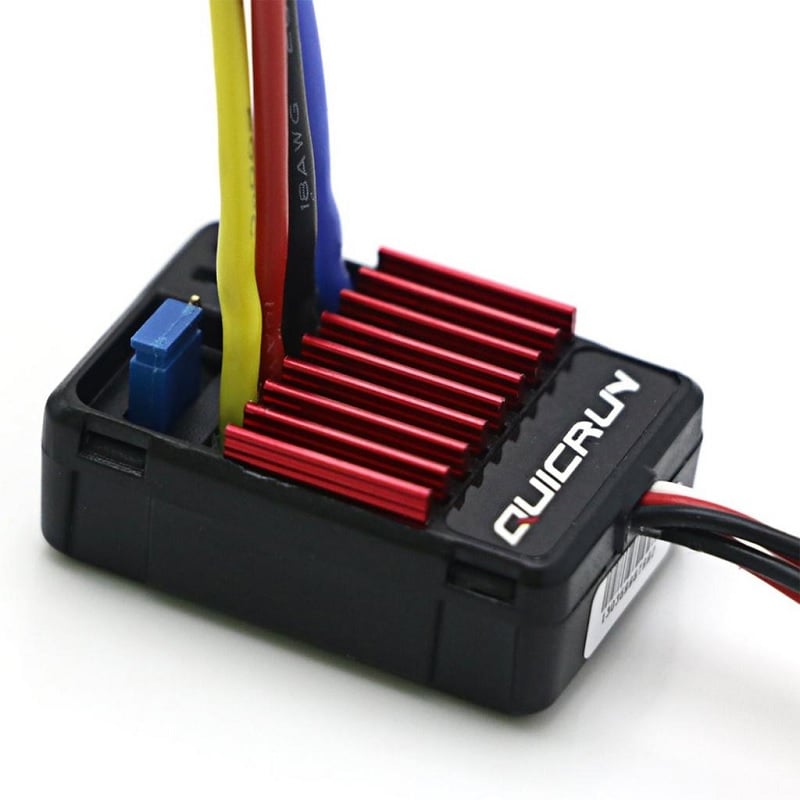

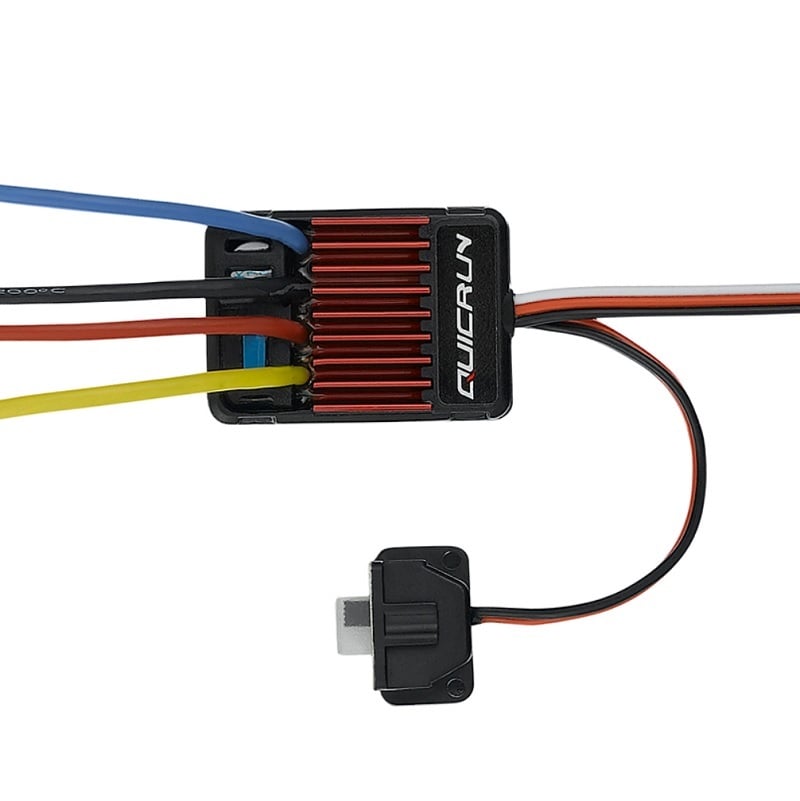

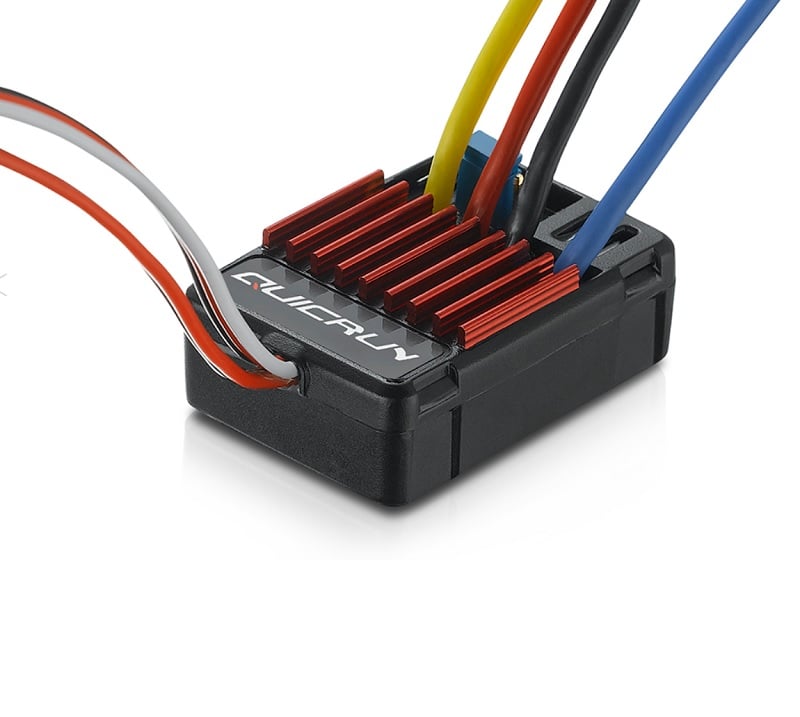

HobbyWing QuicRun 1625 25A waterproof Brushed Electronic Speed ​​Controller

SKU: 1251292
In Stock

₹1,795.00

  1. Waterproof and dustproof, suitable for races in all weather conditions.
  2. Small size with built-in capacitor module.
  3. Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
  4. Great current endurance capability.
  5. Great built-in BEC output capacity.
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

HobbyWing QuicRun 1625 25A waterproof Brushed Electronic Speed ​​Controller

Features:

  1. Waterproof and dustproof, suitable for races in all weather conditions.
  2. Small size with built-in capacitor module.
  3. Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
  4. Great current endurance capability.
  5. Great built-in BEC output capacity.
  6. Automatic throttle range calibration, easy to use.
  7. ESC parameters are easy to set withwith jumpers.
  8. Multiple protections:
  9. Over Voltage Protection
  10. Low voltage cut-off protection for battery
  11. Over-heating protection
  12. Throttle signal loss protection.
  13. Risk-Free Manufacturer’s limited warranty.



Specifications:

  1. Cont. Current /Peak Current/ Resistance: 25A/100A/0.003?
  2. Motor Type Supported: Brushed Motor
  3. Car Applicable: 1:16 &1:18 On-road/Off-road/Buggy/Monster
  4. Suitable Battery: 2-3S LiPo, 6-9 cell NiMH
  5. Brushed Motor Limit:
    1. 2S LiPo or 6 cell NiMH: 280, 370 or 380 Size Motor RPM<30000 @7.2V
    2. 3S LiPo or 9 cell NiMH: 280, 370 or 380 Size Motor RPM<20000 @7.2V
  6. BEC Output: 1A/5V (Linear Mode)
  7. PWM Frequency: 1KHz
  8. Size/ Weight: 34(L)*24(W)*14(H) / 23.5g
  9. Running Modes: Forward/Reverse/Brake

Package Includes:

1 x HobbyWing QuicRun 1625 25A waterproof Brushed Electronic Speed ​​Controller

1 x User Manual
