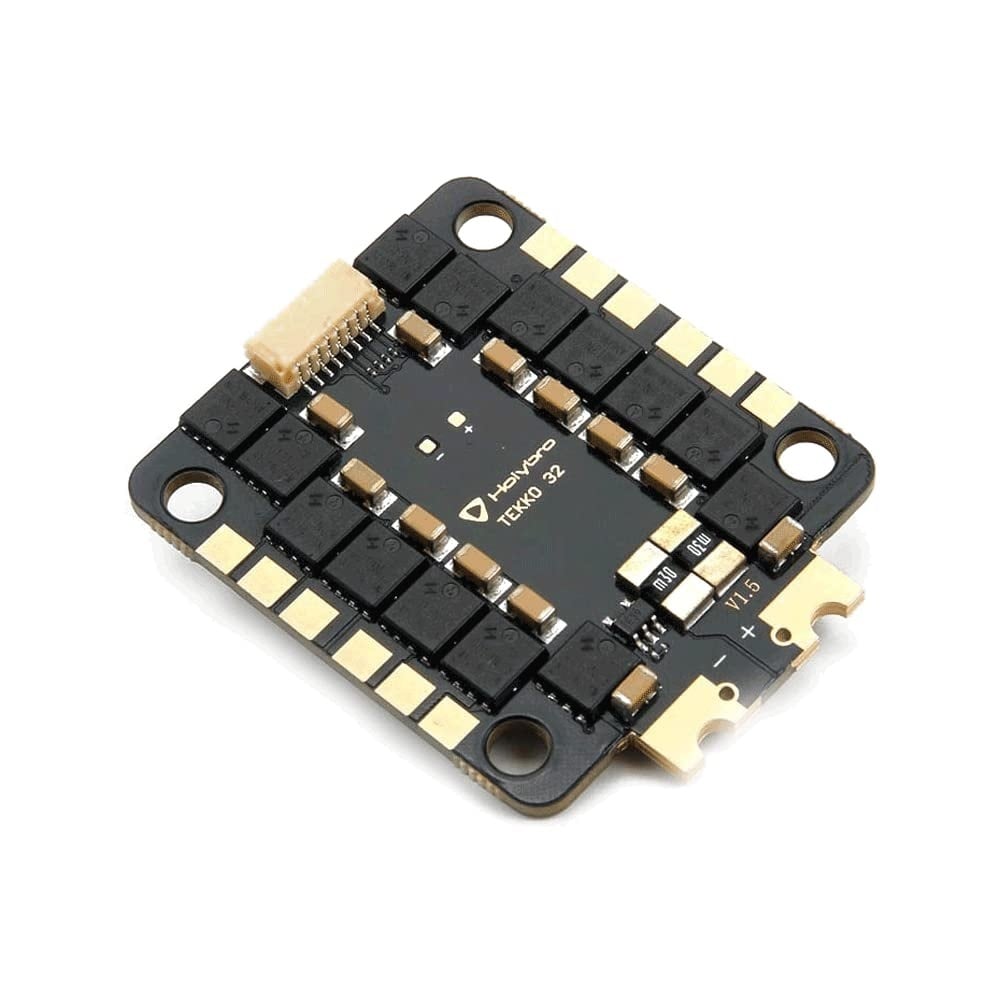

Holybro Tekko32 F4 is one of the first 4-In-1 ESC to adapt fast F4 MCU @ 150MHz for smooth control operation and quick response.

Pin Map:

F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30×30

Features:

1. New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
2. PWM Frequency:  16K to 96K
3. Separate drive & control circuit, broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Specifications:

1. Continuous Current: 50A x4
2. Burst Current: 60A x4
3. Supports 4-6S battery
4. Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
5. ESC telemetry Supported
6. Onboard analog current sensor
7. No output BEC
8. BLHeli_32 firmware
9. 1000uf 35v capacitor included (highly recommended for 6s setup)
10. Amperage meter scale ratio: 168
11. Dimensions: 45x37x6mm / Weight: 13.8g
12. Mounting holes: M4 30.5×30.5mm (M3 grommets included)

Package Includes:

1 x Holybro Tekko32 F4 50A BLHeli_32 4-In-1 ESC
4 x M3 Anti-Vibration Silicone Grommet Insert
1 x Electrolytic capacitor: 1000uF 35v
1 x 8pin to 8pin 1mm pitch 65mm cable
1 x 8pin to 8pin 1mm pitch 25mm cable

This 4-in-1 35A 2-5S BLHELI_S ESC speed controller is presented as one of the budget options for ESC 4-in-1 speed controllers of this kind.

Features:

1. Improved firmware using BLHeliS
2. Ultra Lightweight, and compact size
3. Adaptive timing, compatible with a wide range of motors and Kv
4. Synchronous rectification technology adds efficiency, damped light

Package Includes:

1 x 35A 2-5S BLHELI_S 4 in 1 ESC

T Motor AT 75A 6S is compatible with various flight-control systems and supports a signal frequency of up to 621 Hz at a. It has a special core program for multi-rotor controllers that greatly improves throttle response and specially optimized software for excellent compatibility with disc-type motors. The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable. All settings except the timing are preset, making usage simple, highly intelligent and adaptive.

Features:

1. Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
2. 3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopters.
3. Throttle range can be configured and is fully compatible with all transmitters currently available on market.
4. Smooth, linear and precise throttle response.
5. Our pocket-sized Program Card can be purchased separately for extremely easily programming the ESC at the field.
6. With a program card, you can activate the music playing function of the ESC, and totally there are 15 songs that can be selected

Package Includes:

1 x T Motor AT 75A 6S

When using a lithium battery pack of more than 3S, a switch‐mode BEC has much higher efficiency with lower heat. For a traditional linear BEC, Using a high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90%.Has a working status indicator, which lights up when the UBEC is working normally. With input reverse connection protection, overcurrent protection, output short circuit protection, overheating protection and other functions, safe and reliable.

Features:

1. It adopted the advance regulator chip with conversion efficiency exceeding 90%
2. One output have 4 options for output voltage applicable for all kinds of receivers gyros servos
3. it featured input incorrect polarity protection

Package Includes:

1 x UBEC-8A+4A

Features:

1. Gold plated PCB
2. Regenerative braking function
3. Strong anti-jamming ability and quick response.

Package Includes:

1 x Cyclone 45A BLHeil_S ESC

This T-motor 200A 14S Flame Type ESC featured efficient and reasonable dissipation, layered structure. Compatible with U12 Motors and specially designed for multi-rotors. T Flame ESC can give a continuous current of 200A, and a peak current of up to 240A (10Sec).

Features:

1. High-performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
2. The throttle range can be configured to be compatible with all transmitters currently available on market.
3. Smooth, linear, quick, and precise throttle response.
4. CNC Aluminum alloy enclosure, IP55 PCB with nanotechnology, widely used in UAV agriculture, search and rescue, etc.
5. Separate voltage regulator IC for the microprocessor to get a better anti-jamming capability.
6. Multiple protection features: Low-voltage cut-off protection / over-heat protection/throttle signal loss protection.
7. USB supported. The firmware of the ESC can be updated by the USB adapter.
8. Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.

Specifications:

1. Continuous Current (A): 200
2. Peak Current (10sec): 240
3. BEC: N0
4. LIPO: 6-14s
5. Programmable: No

Package Includes:

1 x T motor Flame 200A 14S
