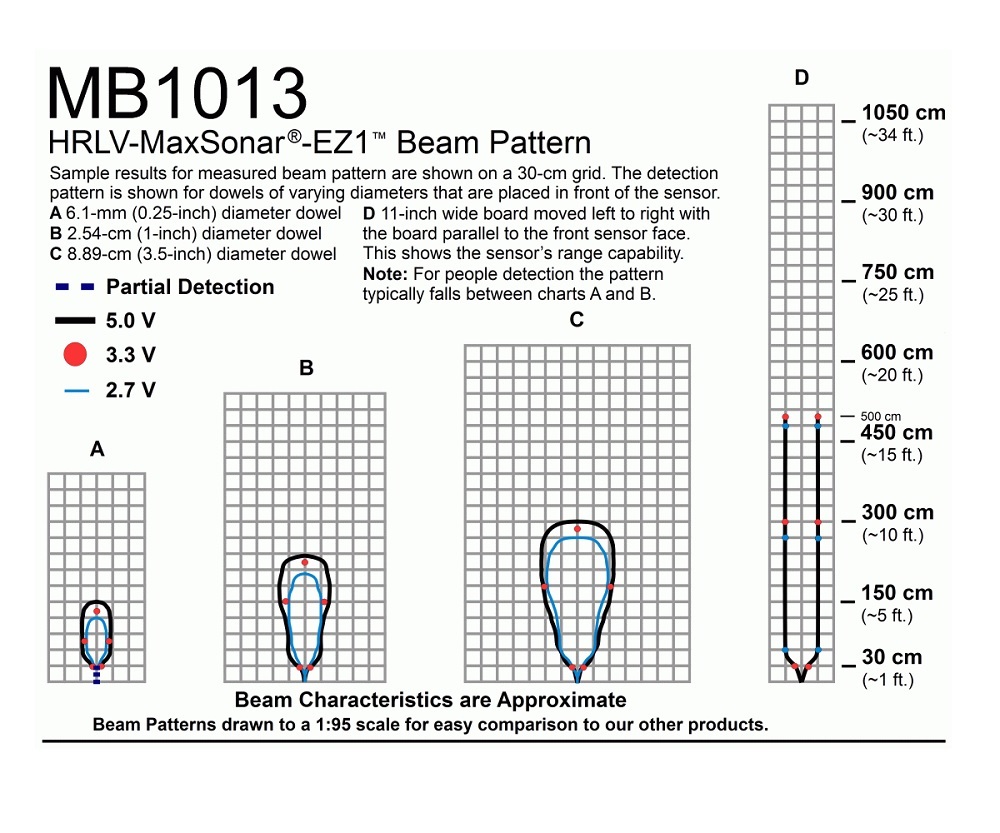

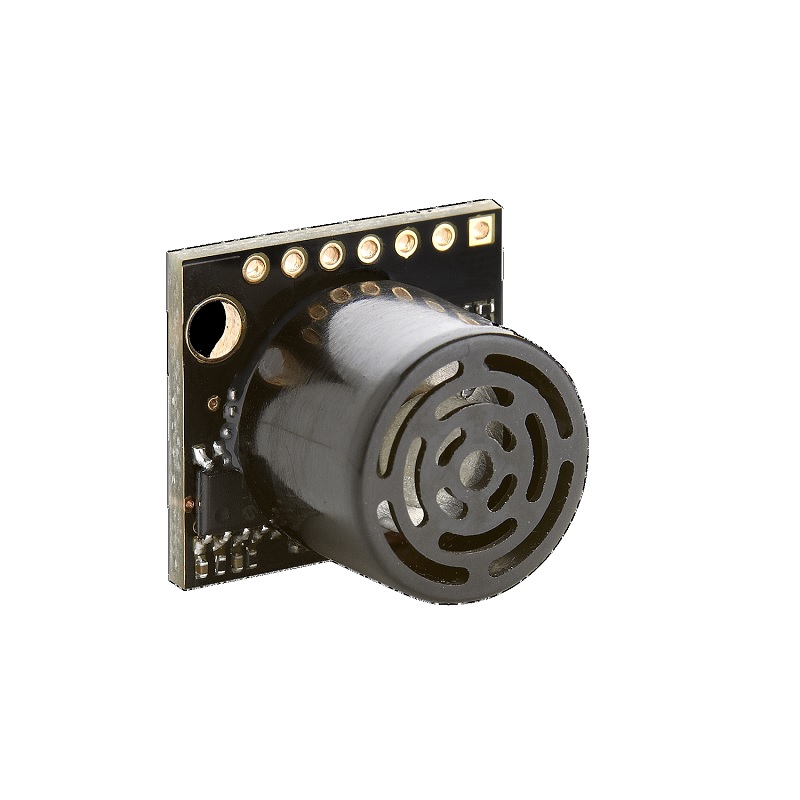

The MaxBotix MB1013 Ultrasonic Sensor is the most cost-effective solution for applications where precision range-finding, low-voltage operation, space-saving, and low-cost are needed.

This MB1013 sensor line provides high accuracy and high resolution ultrasonic proximity detection and ranging in air, in a package less than one cubic inch. This sensor line features 1mm resolution, target-size and operating-voltage compensation for improved accuracy, superior rejection of outside noise sources, internal speed-of-sound temperature compensation, and optional external speed-of-sound temperature compensation. This ultrasonic sensor detects objects from 1mm to 5meters, senses range to objects from 30cm to 5meters, with large objects closer than 30cm typically reported as 30cm. The interface output formats are pulse width, analog voltage, and serial digital in either RS232 or TTL. Factory calibration is standard.

Specifications and Features:

1. Resolution of 1‑mm
2. 10Hz reading rate
3. Internal temperature compensation
4. Cost-effective solution where precision range-findings are needed
5. Sensor component allows users to lower the cost of their systems without sacrificing performance
6. 42kHz Ultrasonic sensor measures distance to objects
7. RoHS compliant
8. Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
9. Virtually no sensor dead zone, large objects closer than 30 cm are typically reported as 30 cm
10. Accuracy is factory-matched providing a typical accuracy of 1% or better
11. Maximum range of 5000 mm (195 inches)
12. Tolerates outside noise sources
13. Operates from 2.5V-5.5V
14. Low 3.1mA average current requirement
15. Small, light weight module
16. Designed for easy integration into your project or product
17. Operational Temperature from -0C to +65C (+32F to +149F)
18. Real-time automatic calibration (voltage, humidity, ambient noise)
19. Option external temperature compensation HR‑MaxTemp
20. Firmware filtering for better noise tolerance and clutter rejection
21. Great starting point for users unsure of which sensor to use

Package Includes:

1 x MaxBotix MB1013 Ultrasonic Sensor

The 4–20HR–MaxSonar–WR sensor line is a high performance ultrasonic precision rangefinder that provides high accuracy, high resolution ultrasonic range detection in air. The 4–20HR–MaxSonar–WR sensor line is a cost–effective solution for automation/process control applications where precision range–finding, low–voltage operation, space saving, low cost and IP67 weather resistance is needed.

Applications:

1. Automated process control systems
2. Tank level measurement
3. Weather station monitoring
4. Bin level measurement

                                                             Note: For more details refer to Datasheet

Features:

1. Factory calibrated beam pattern
2. Functions well in high noise environments
3. Stable and highly reliable range readings
4. Excellent noise and clutter rejection
5. High acoustic sensitivity
6. Low current draw

Packages Includes:

1 x Maxbotix MB7469-101 4-20 HR-MaxSonar-WRM Ultrasonic Sensor

The 4–20HR–MaxSonar–WR sensor line is a high performance ultrasonic precision rangefinder that provides high accuracy, high resolution ultrasonic range detection in air. The 4–20HR–MaxSonar–WR sensor line is a cost–effective solution for automation/process control applications where precision range–finding, low–voltage operation, space saving, low cost and IP67 weather resistance is needed.

Applications:

1. Automated process control systems
2. Tank level measurement
3. Weather station monitoring
4. Bin level measurement

                                                                          Note: For more details refer to Datasheet

Features:

1. Factory calibrated beam pattern
2. Functions well in high noise environments
3. Stable and highly reliable range readings
4. Excellent noise and clutter rejection
5. High acoustic sensitivity
6. Low current draw

Packages Includes:

1 x Maxbotix MB7760-101 4-20 SC-MaxSonar-WR Ultrasonic Sensor

Features of the MB1009, ParkSonar-EZ-144, include one-inch resolution, both proximity, and range information for the nearest detectable target, and various output options: high/low logic level and RS232 serial.

The ParkSonar‑EZ line is designed to detect vehicles within a calibrated detection zone. The ParkSonar-EZ proximity sensors report when a vehicle or other detectable target enters the detection zone. The target is released after leaving the ParkSonar-EZ’s detection zone.

                     Note: For more technical details go through Datasheet in the attachment sections

Features:

1. Automatic multi-sensor operation
2. Vehicle Detection Sensor
3. The maximum reported range of 254 inches (645 cm)
4. Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
5. 42kHz Ultrasonic sensor measures distance to objects

Package Includes:

1 x Maxbotix MB1009-000 ParkSonar-EZ-144 Ultrasonic Sensor

Features of the weather-resistant MB7354, HRXL-MaxSonar-WRS5, include millimeter resolution, short to long distance detection, range information from 500mm to 5000mm for the nearest detectable target, heightened sensitivity over our standard sensors, a 6Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

The MB7354 from the HRXL-MaxSonar-WRS line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The HRXL-MaxSonar-WRS sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

The MB7354 has an internal filter that is a recent biased exponential weighted average. This filter is limited to changing a maximum of 7mm per second. The sensor accurately applies temperature compensation to every reading, using either the integrated temperature sensor or the optional external temperature sensor, HR-MaxTemp.

In addition, the MB7354 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Features:

1. Small, light weight module
2. RoHS Compliant
3. Designed for easy integration into your project or product
4. Real-time automatic calibration (voltage, humidity, and ambient noise)
5. Firmware filtering for excellent noise tolerance and clutter rejection
6. Weather resistant (IP67), optional chemical resistant F-Option
7. Easy to use
8. Plug and play device

Note: For technical information refer to datasheet in attachment section

Package Includes:

1 x Maxbotix MB7354 HRXL MaxSonar WRS5 Ultrasonic Sensor

Features of the MB1423, HRUSB-MaxSonar-EZ2, include millimeter resolution, a excellent compromise between sensitivity and side object rejection, short to long-distance detection, range information from 300mm to 5000mm, a ~4Hz read rate, and a USB serial output.This makes the MB1423 is a great choice for applications that require decreased sensitivity to side objects than the MB1413.

The MB1423 from the HRUSB‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.

In addition, the MB1423 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

                     Note: For more technical details go through Datasheet in the attachment section

Features:

1. Virtually no sensor dead zone, objects closer than 30 cm range as 30 cm
2. Small, light weight module
3. offers virtually noise free distance readings
4. Designed for easy integration into your project or product

Packages Includes:

1 x Maxbotix MB1423-000 HRUSB-MaxSonar-EZ2 Ultrasonic Sensor
