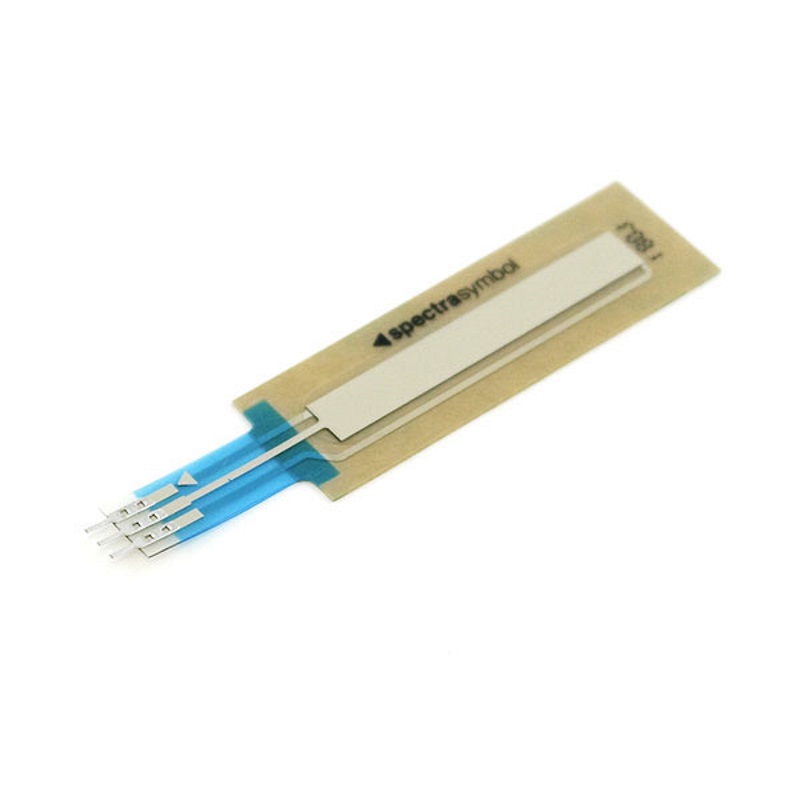

SoftPot Membrane Potentiometer – 50mm

SKU: 1073076
In Stock

899.00

  1. Resistance:10 KΩ
  2. Tolerance:±20%
  3. Rated Power:1 Watt
  4. Dimension:95x20x1 mm
  5. Weight:2 gm
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

These are very thin variable potentiometers. By pressing down on various parts of the strip, the resistance linearly changes from 100Ohms to 10,000Ohms allowing the user to very accurately calculates the relative position on the strip. Can be used as an accurate positional indicator for CNC head positioning, variable user input (volume level input for example), straight user input (multiple button areas translate to given resistance levels), and many other applications.

Unit comes with adhesive backing. The connector is 0.1″ spaced and breadboard friendly.

Note: These potentiometers work great with fingers, or a stylus.


Features:

  1. Ultraflat
  2. Excellent repeatability
  3. Customized design

Package Includes:

1 x SoftPot Membrane Potentiometer – 50mm

Additional information

Resistance (Ω)

10000

Tolerance(%)

±20

Rated Power (W)

1

Opt. Relative Humidity(RH)

95%

Operating Temperature Range (°C)

-40 to 50

Length (mm)

100

Width (mm)

60

Height (mm)

10

Weight (gm)

5
