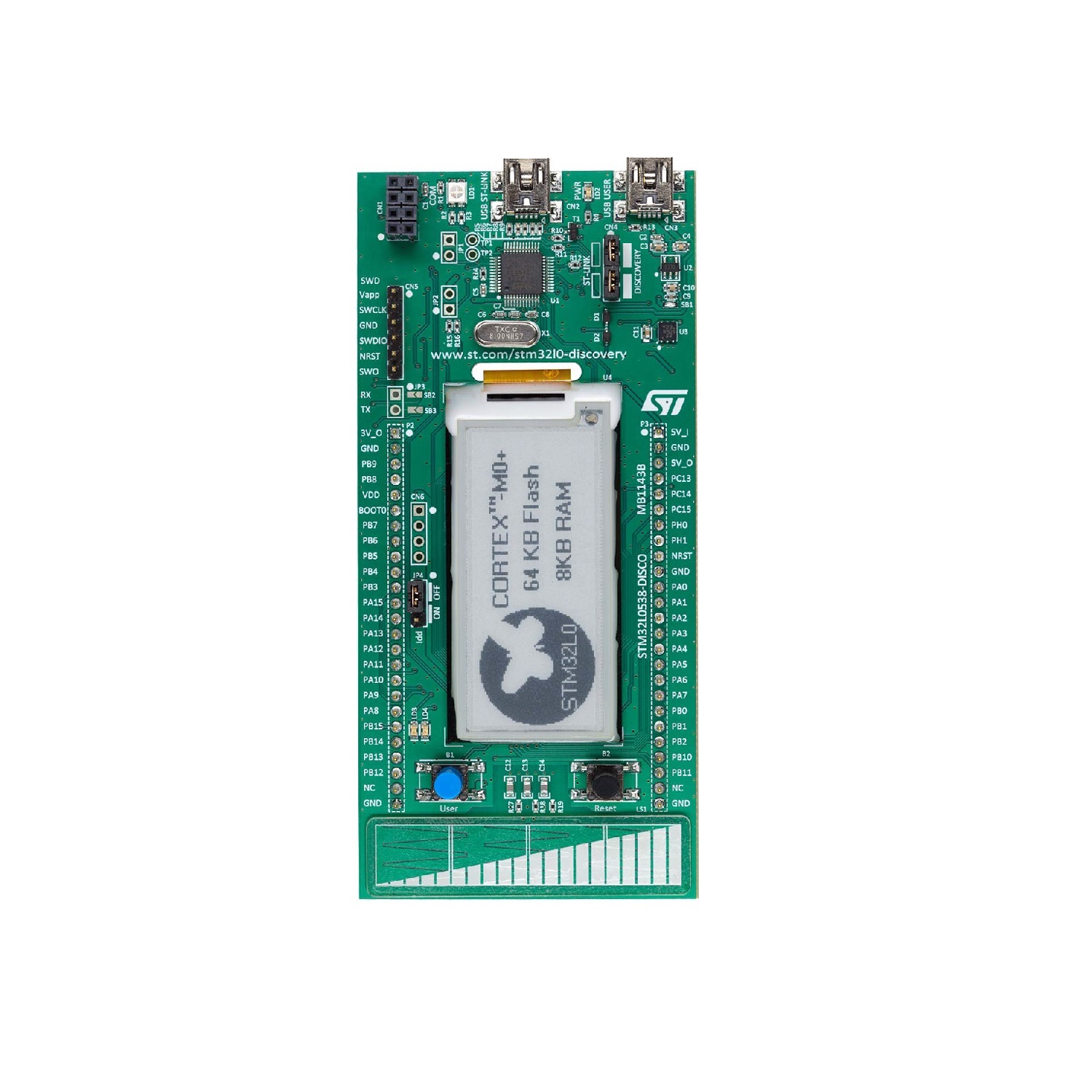

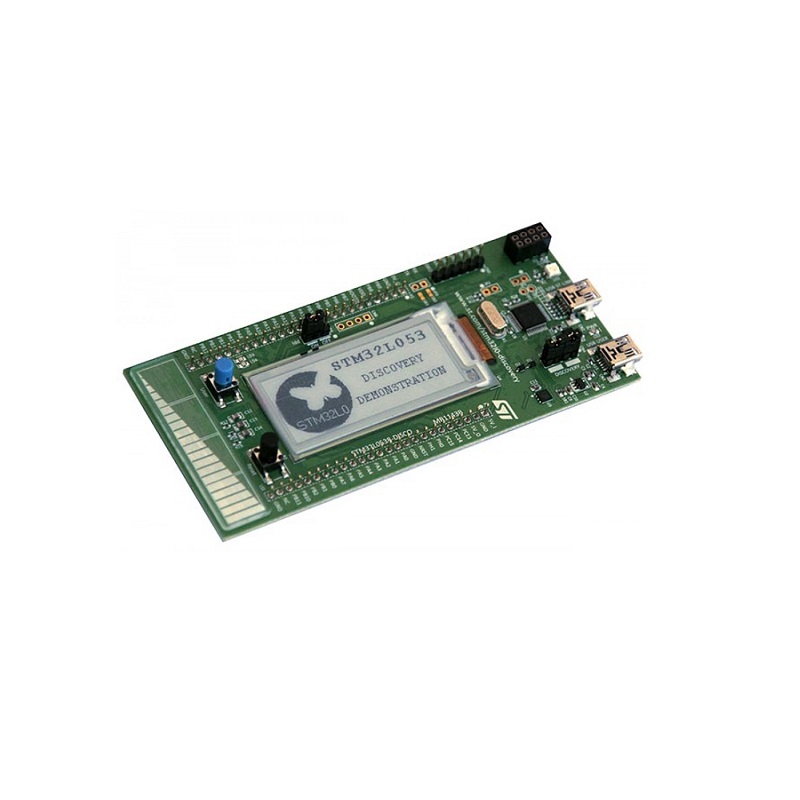

STMicroelectronics STM32L0538-DISCO Development Board, STM32L053C8T6 MCU, On-Board Debugger, Touch Sensors, Current Measurement,
₹3,049.00
- Product: STM32L0538-DISCO Development Board
- STM32L053C8T6 ARM 32bit Cortex-M0+ with MPU
- USB re-enumeration capability with three different interfaces supported on the USB
- Board power supply through USB bus or from an external 5V supply voltage
Product will restock shortly. Receive in-stock notifications for this product.
Did you like this product? Add to favorites now and follow the product.
+91-7231900002 Connect on Whatsapp
Description
The STM32L0538-DISCO is a discovery kit for STM32L0 Series MCU. The STM32L053 discovery kit is a low-cost and easy-to-use development kit to quickly evaluate and start development with an STM32L0 series microcontroller. It is based on an STM32L053C8T6 and includes an ST-LINK/V2-1 embedded debug tool interface, linear touch sensor, touch keys, IDD current measurement, 2.04″ E-paper display, NFC connector for PLUG-CR95HFB board, LED’s, pushbuttons and a USB mini-B connector.
Features:
- One linear touch sensor or four touch keys
- Extension header for LQFP48 I/Os for a quick connection to the prototyping board and easy probing
- Comprehensive free software including a variety of examples, part of STM32CubeL0 package
- Two pushbuttons, one for the user and another for reset
note: For more technical details, go through the datasheet in the attachments
Package Includes:
1 x STMicroelectronics STM32L0538-DISCO Development Board, STM32L053C8T6 MCU, On-Board Debugger, Touch Sensors, Current Measurement,
Additional information
Microcontroller Board | STM32L053C8T6 |
---|---|
Board power supply | 5 V supply voltage |
E-paper Display pixels | 172×72 pixels |
RAM | 8 KB |
Flash memory | 8 KB RAM |
