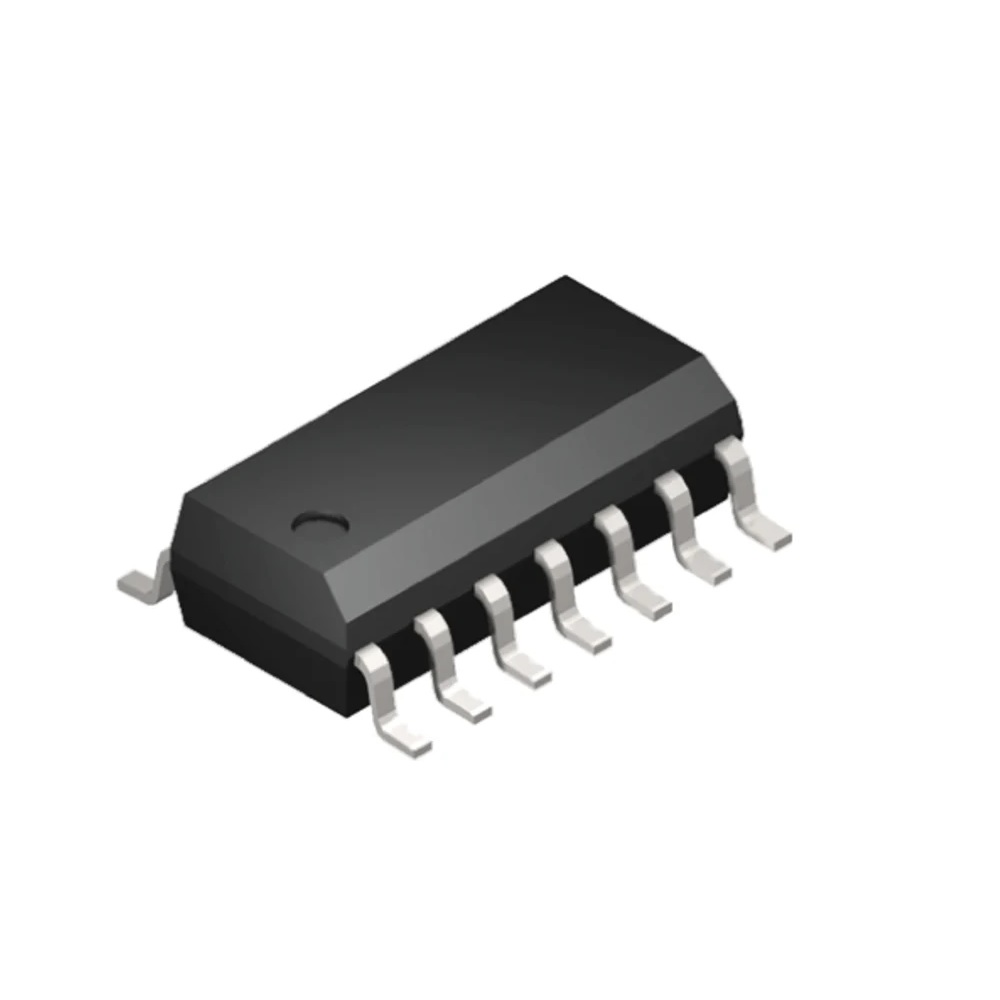

TL974IDR – Output Rail-to-Rail Very-Low-Noise Operational Amplifier 14-Pin SOIC (Texas Instruments)
₹478.00
- Rail-to-Rail Output Voltage Swing: ±2.4 V at VCC = ±2.5
- Very Low Noise Level: 4 nV/√Hz
- Ultra-Low Distortion: 0.003%
- High Dynamic Features: 12 MHz, 5 V/μs
- Operating Range: 2.7 V to 12 V
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
Did you like this product? Add to favorites now and follow the product.
+91-7231900002 Connect on Whatsapp
Description
The TL97x family of single, dual, and quad operational amplifiers operates at voltages as low as ±1.35 V and features output rail-to-rail signal swing. The TL97x boasts characteristics that make them particularly well suited for portable and battery-supplied equipment. Very low noise and low distortion characteristics make them ideal for audio preamplification.
The TL971 is housed in the space-saving 5-pin SOT-23 package, which simplifies board design because of the ability to be placed anywhere (outside dimensions are 2.8 mm × 2.9 mm).
Applications:
- Portable Equipment
- Instrumentation and Sensors
- Professional Audio Circuits
Features:
- Overload protection on the input and output
- No latch-up when the common-mode range is exceeded
- Applications: Audio, Communications & Networking, Signal Processing
Package Includes:
1 x TL974IDR – Output Rail-to-Rail Very-Low-Noise Operational Amplifier 14-Pin SOIC (Texas Instruments)
Additional information
| Input Voltage (V) | 2.7-12 |
|---|---|
| Common-mode input voltage( | 1.15 |
| Rail-to-Rail Output Voltage(V) | ±2.4 |
| Very Low Noise Level | : 4 nV/√Hz |
| Ultra-Low Distortion | 0.003% |
| Operating Temperature Range (°C) | -40 to 125 |
| Length (mm) | 15 |
| Width (mm) | 8.3 |
| Height (mm) | 2.4 |
| Weight (gm) | 3 |
