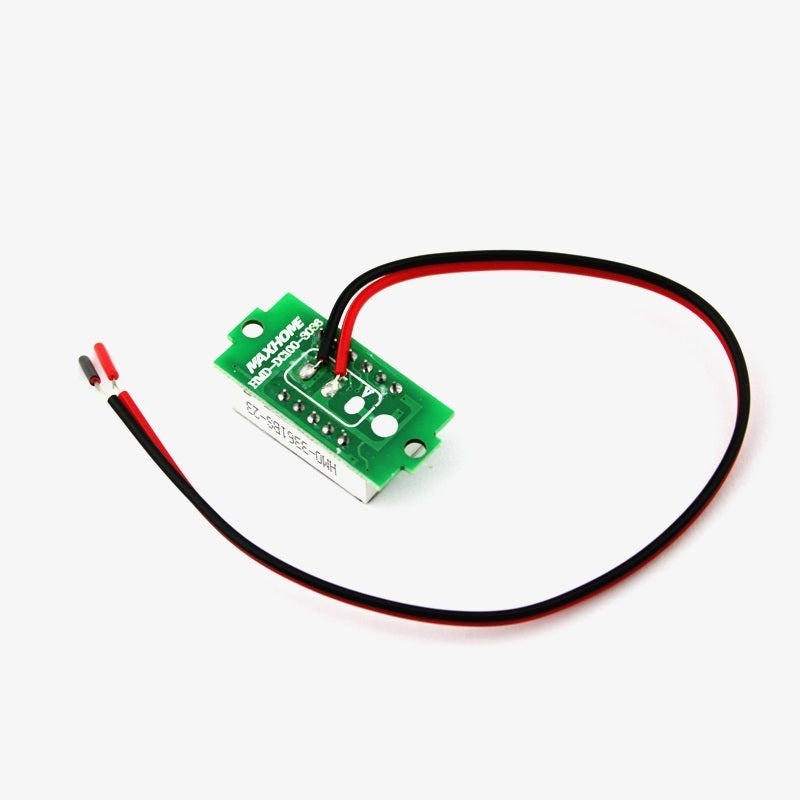

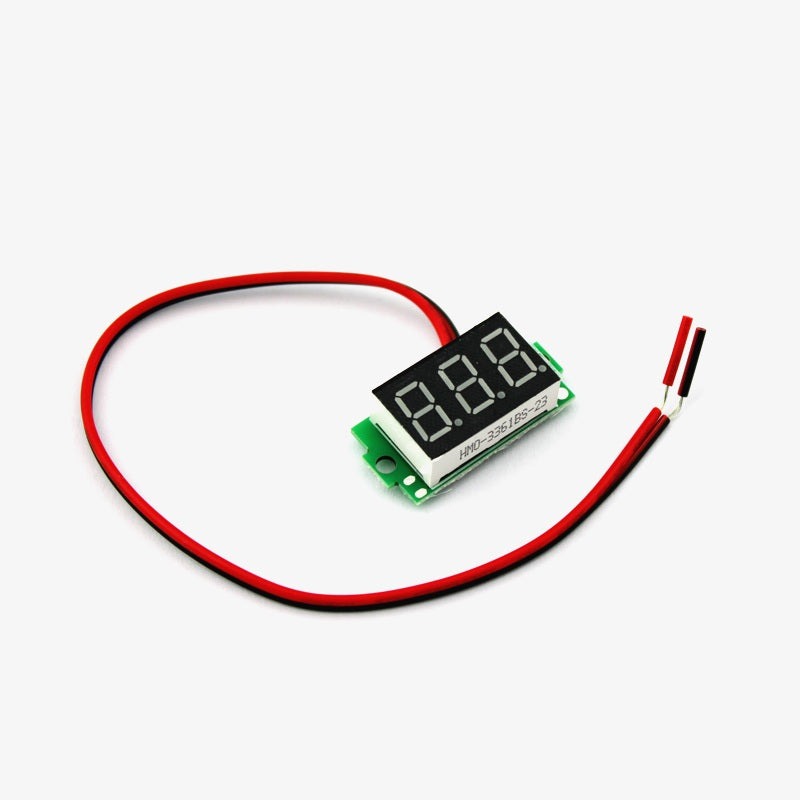

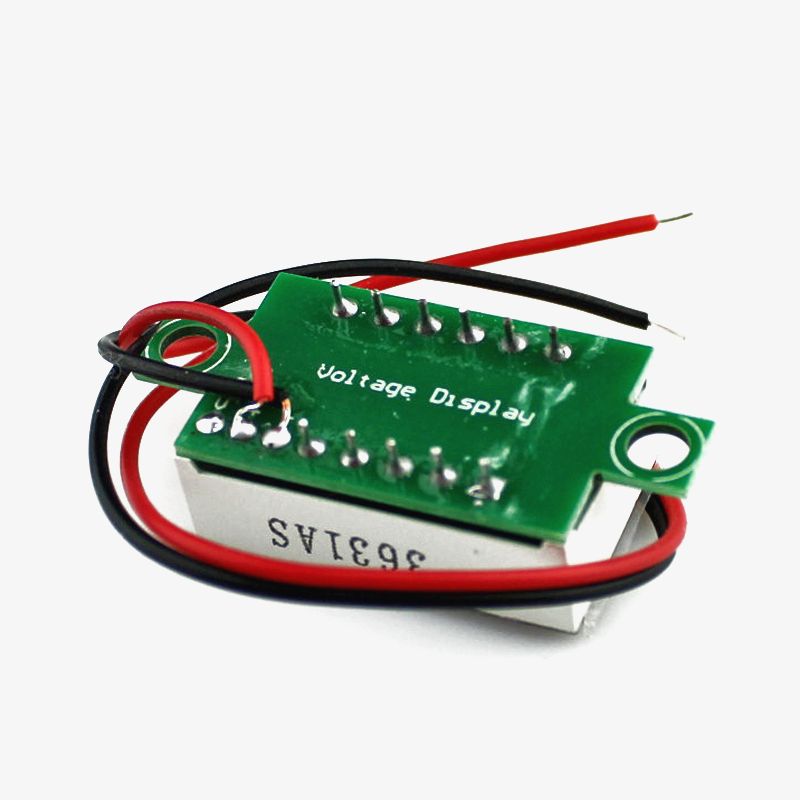

0.36 Inch DC Voltmeter (4.5V - 30V)

In many projects you just need a tiny, simple display to provide Voltage information but that becomes a very costly solution if it is done using a microcontroller and small displays. Quartz component presenting this tiny yet compact digital voltmeter that could provide in the Voltage information with a seven segment based red LED Display.

This 0.36inch display is capable of providing a 4.50V-30V voltage display while using only Two Wires. Its application is as simple as plug and play.

This Voltmeter provides best measurement accuracy by moving the decimal point position automatically.  To get the best output, please use this Voltmeter 4.50V - 30V range. It doesn't need any additional power source externally for its operations.

Pinouts:

Specifications and Features:

1. Small and lightweight Voltmeter module - 5gm only.
2. Display color: Red.
3. Best operates in the working voltage range of 4.5V to 24V
4. Accuracy : 0.1 V
5. Wire : 2
6. Potentiometer available for adjusting the displayed voltage
7. Display Turn on Voltage  (V):  3V
8. Measurable Voltage Range : 4.5V to 30V
9. Current Consumption (mA) : 10mA(min), 23mA(max).
10. Refresh Speed (ms): 200 (one time)
11. Operating Temperature (C) : -10 to 60

Dimension:

Application:

• Voltage Measurement in different applications
• Bench Power supply Voltage Notifier
• Different type of CV SMPS where Voltage display is required
• Voltmeter applications in DIY
• E Vehicle Battery Voltage display

Package Contains:

1x 0.36 Inch DC Voltmeter (0-30V) with Wire
