1 Channel IR Relay Control Module With Range Adjuster

SKU: RZ24339323 Category: Switches & Relays

₹ 287.50

Out of Stock

Buy 1 Channel IR Relay Control Module With Range Adjuster online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 281.75
11 – 30	3%	₹ 278.88
31 – 50	4%	₹ 276.00
51 – 100	5%	₹ 273.13

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Switches & Relays

Subcategory Switches (General)

SKU RZ24339323

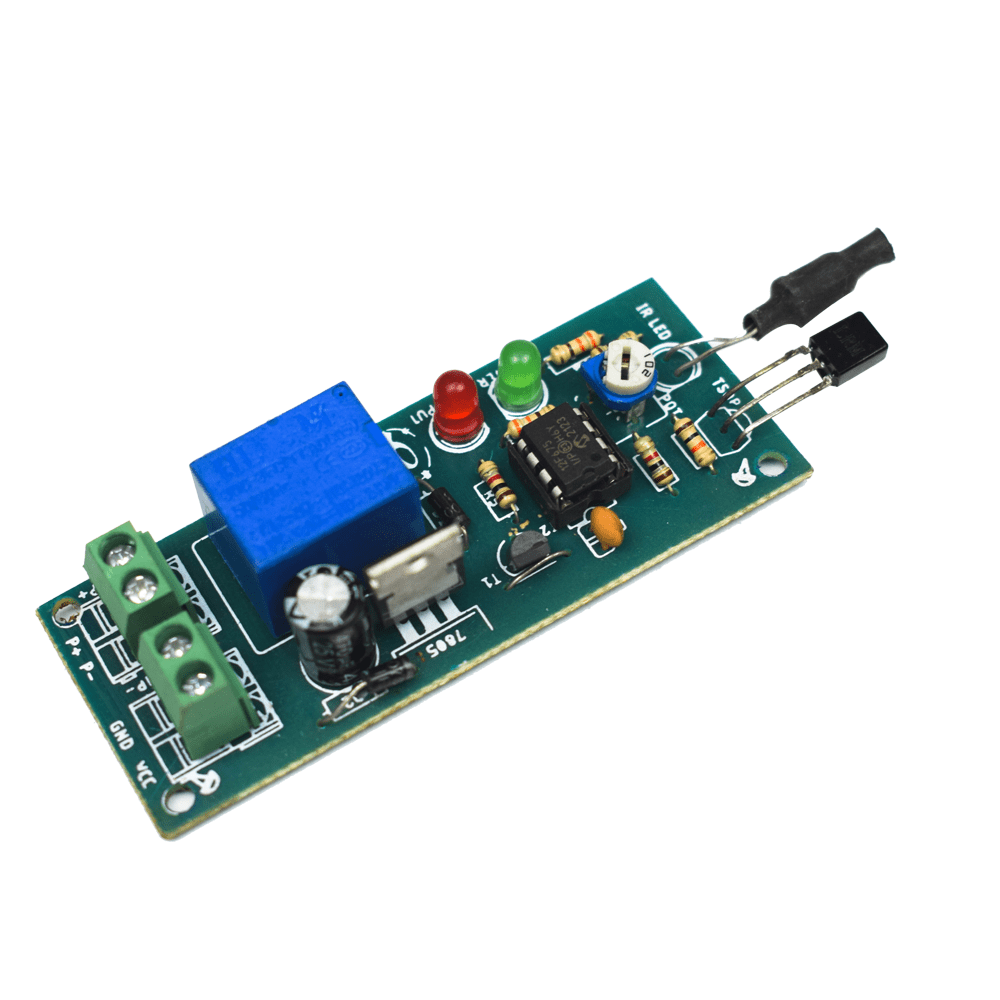

This is an IR Detector Single Channel Relay Control Module with Range Adjuster. The operating current of this module is 5V DC; hence 5V is supplied to the Vcc. GND is connected to the ground of the system. Out pin gives an active high output when any obstacle is detected. A potentiometer is also there in the module to adjust the detection distance. This is not a normal IR Sensor, but it is a fully programmed IR Sensor with a Pump set in which users can adjust the timer & ranger as per their choice; apart from this, it requires only 9/12 Volt to operate, which means it can work on rechargeable batteries.

Specifications

Product	IR Detector 1 Channel relay control module
Type	IR Relay Control Module
Operating Voltage	5V DC
Optimal Sensing Distance	2-30 cm
Current Rating	1A
No. of Channel	01
Operated IC or MCU	PIC12F675
Dimensions(LxWxH)	80 x 31 x 20 (mm)
Make	Make in India
Country of Origin	China
