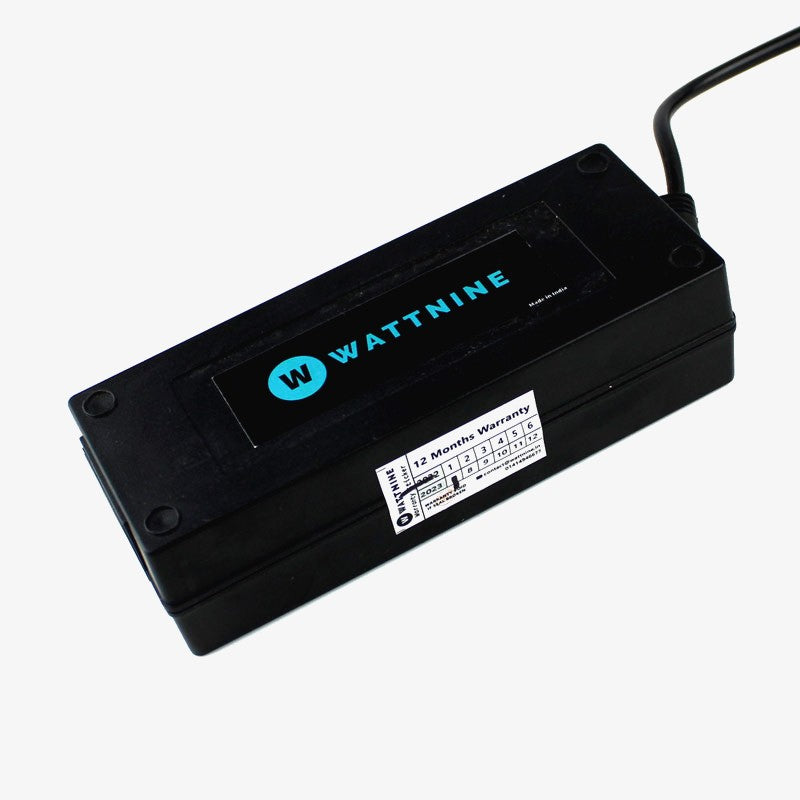

14.6V 5A Lithium Ferrous Phosphate Battery Charger for 32650/Primatics LiFePo4 cells - Table Top 75W with CC and CV

High Quality and High Performance 14.6V 5A  Li-ion Battery Pack Charger with the constant output voltage 14.6V 5A  and constant charging current 5A

Output overload Short circuit Protection : It enters auto restart mode. Auto restart alternately enables and disables the switching of the power MOSFET until the fault condition is removed thereby protecting the equipment

Application :

Lithium ion Battery Charger (SMPS)

Features :

• Green LED : Battery Fully Charged
• Red LED : Battery Charging
• Power Rating : 75 W
• Mains Input : AC single phase
• Output : 14.6V 5A
• High Reliability
• Over Current Protection
• Over Voltage Protection
• CC-CV

Specifications :

• Input rated range : 100 Vac- 270 Vac
• Input frequency : 50/63 Hz
• Input current : 2.0 A Max
• Efficiency : ≤80% Under maximum load at 230 Vac at Room ambient
• Inrush current :  45°C ≤45A Max at 230 Vac
• No load power : <300mW
• Output voltage : 14.6 V
• Output current : +/-0.3 5A
• Line regulation : <±1 %
• Load regulation : <±2 %
• Ripple & noise : <150mV at 230 Vac & Full Load
• Output over current : >5 A Max
• Hold up time : >50m Sec at 230 Vac input & Full Load
• Turn-on delay : <50m Sec
• Rise time : <30m Sec
• Fall time : <10m Sec

Package Includes :

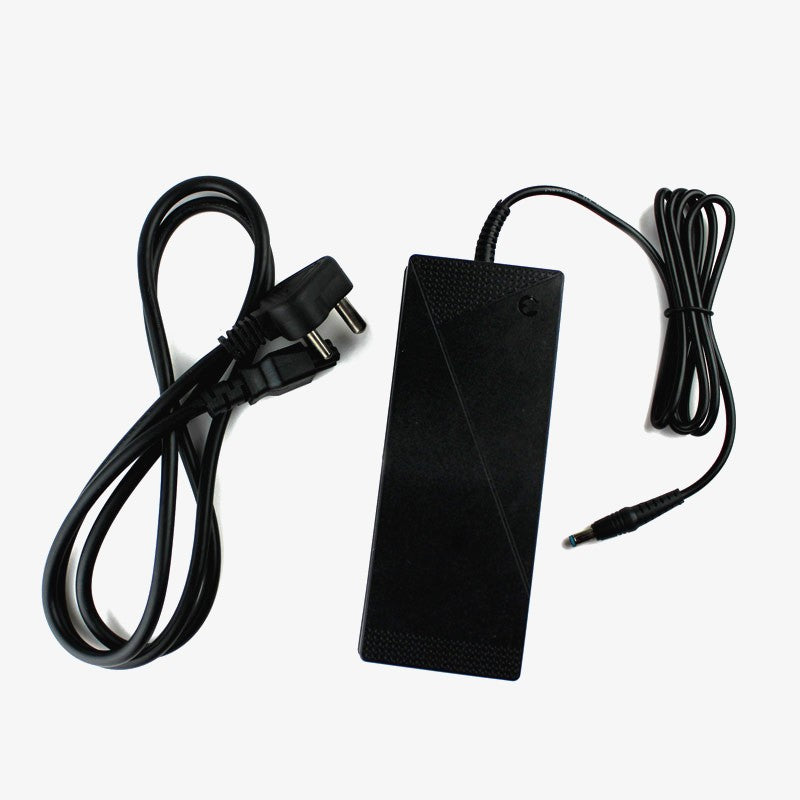

1x 14.6V 5A Table Top Smart 75W Lithium-Lion Battery charger
