180Pcs. Micro Tactile Push Button Switch Kit (10 Shaft Size)

SKU: RZ24323207 Category: Switches & Relays

₹ 442.75

Out of Stock

Buy 180Pcs. Micro Tactile Push Button Switch Kit (10 Shaft Size) online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 433.90
11 – 30	3%	₹ 429.47
31 – 50	4%	₹ 425.04
51 – 100	5%	₹ 420.61

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Switches & Relays

Subcategory Electronic Switches

SKU RZ24323207

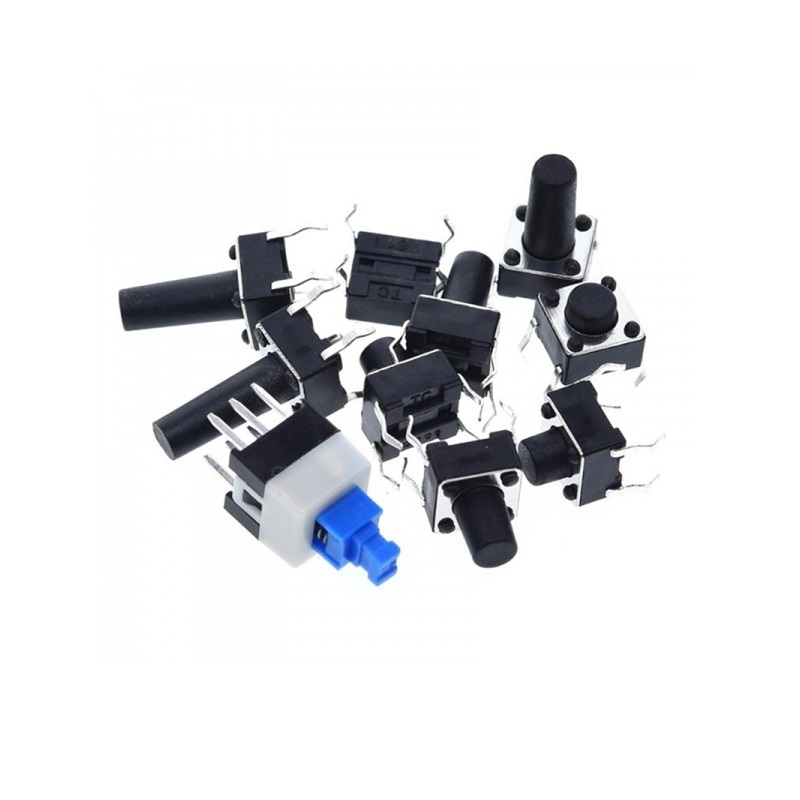

Hey, geeks there do you frequently need a different size of tactile pushbuttons/switches on your workbench then this 180Pcs. 6 x 6mm Light PushButton Switch Kit is a must product for you. Here in this kit, you will get 9 different sizes of PCB hole mountable push to ON Momentary buttons with 20×7, 15×2, and one 7x7x14 Push to ON/OFF Non-momentary 10 pcs. switches. The Kit comes with a compartmented box to store the switched systematically.

6 x 6 x ** mm Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

These tactile switches also offer reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Specifications and Features :

Through-hole design.
Shaft Shape: Round
Base Size (mm): 6mm
Middle stroke (1.05mm)
Shaft Size: 10 different Size (find the details in Package Includes section below)
High operating force (3.0N or 3.6N) suited to automotive equipment requirements
The long life of 300,000 cycles realized despite the high operating force
Used in the fields of electronic products, household appliances, and more.
High precision mechanism design offers acute operation and long service life.
Compact and lightweight, easy to carry and dismantling.
Good electrical conductivity.

Package Includes :

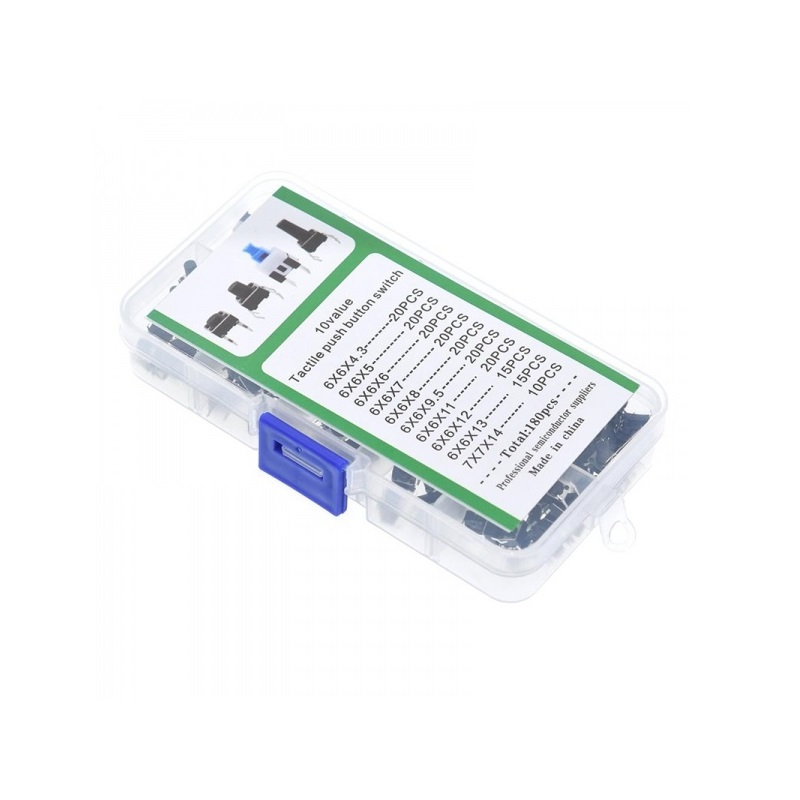

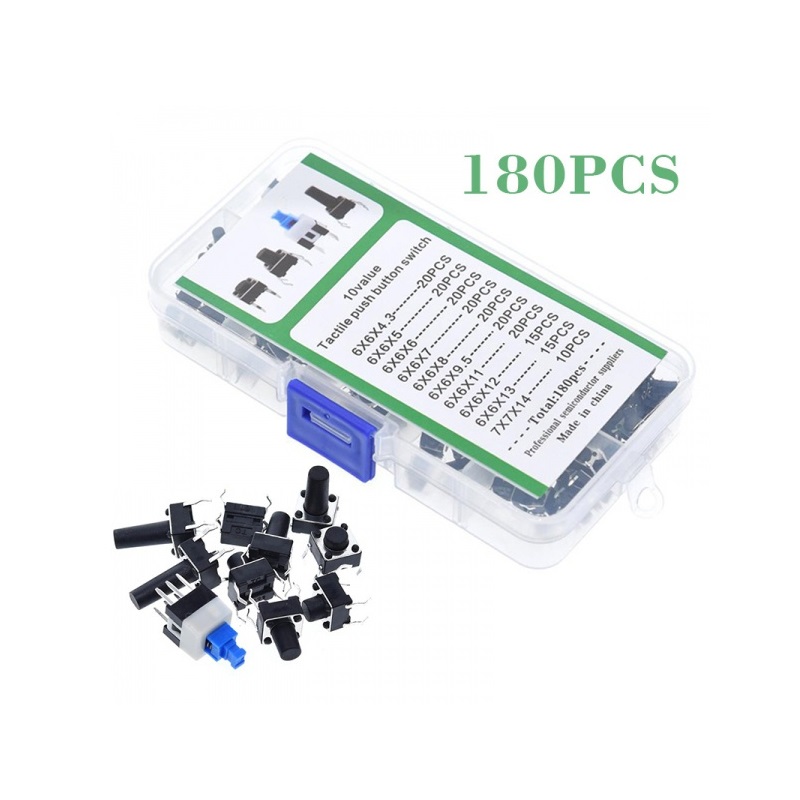

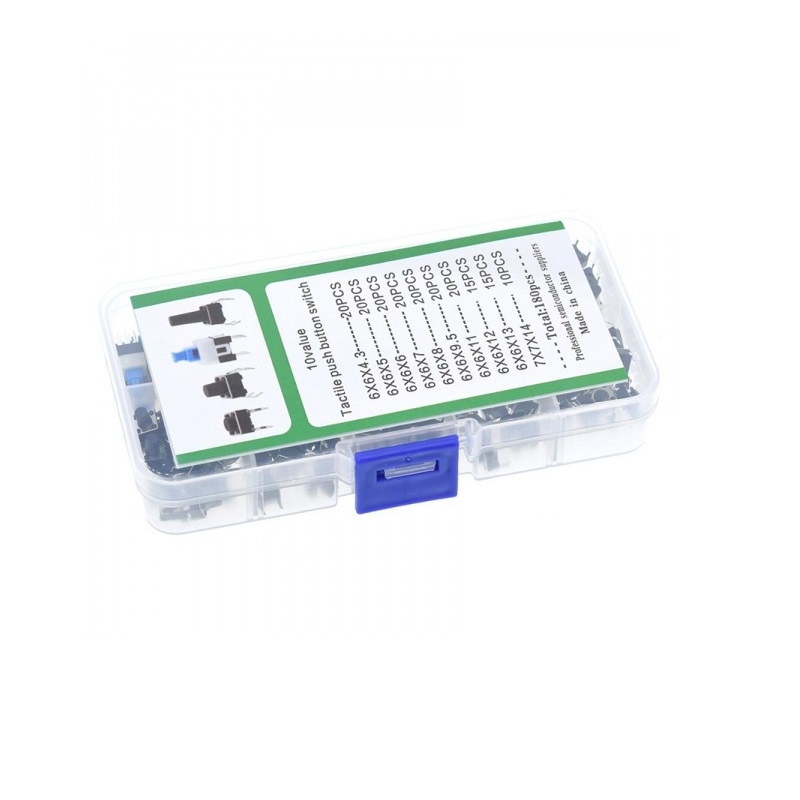

1 x 180PCS 6mm Light Push Button Switch Kit (10 Shaft size)

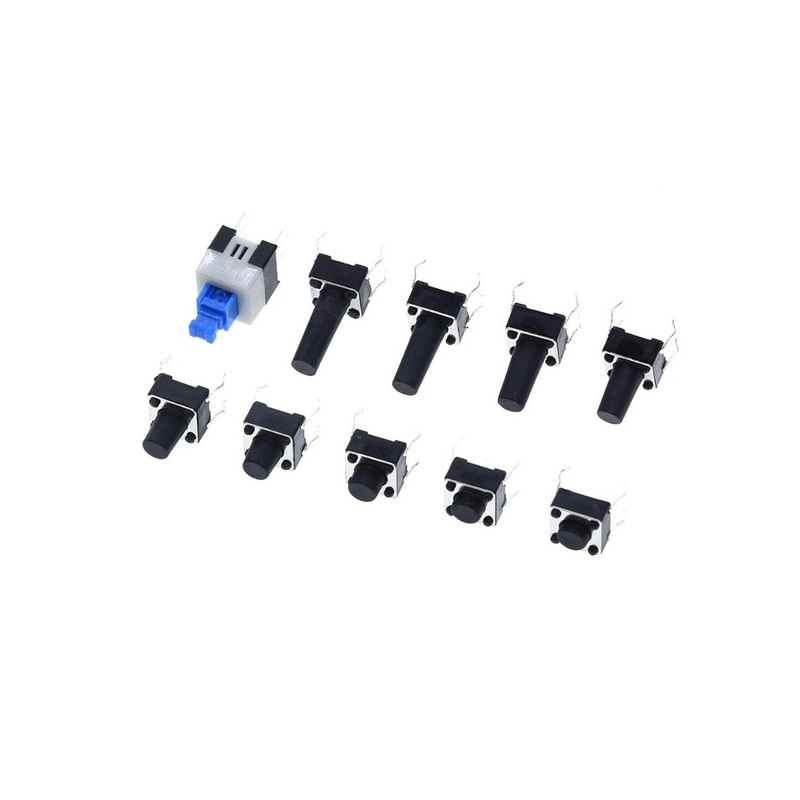

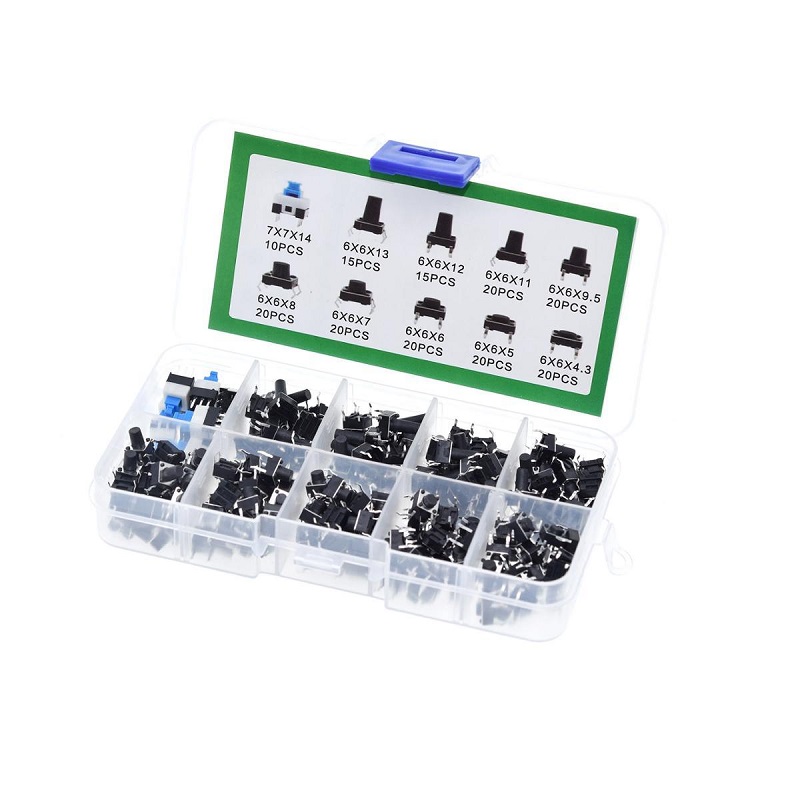

Kit Includes:

6 x 6 x 4.3 – 20Pcs
6 x 6 x 5 – 20Pcs
6 x 6 x 6 – 20Pcs
6 x 6 x 7 – 20Pcs
6 x 6 x 8 – 20Pcs
6 x 6 x 9.5 – 20Pcs
6 x 6 x 11 – 20Pcs
6 x 6 x 12 – 15Pcs
6 x 6 x 13 – 15Pcs
7 x 7 x 14 – 10Pcs
