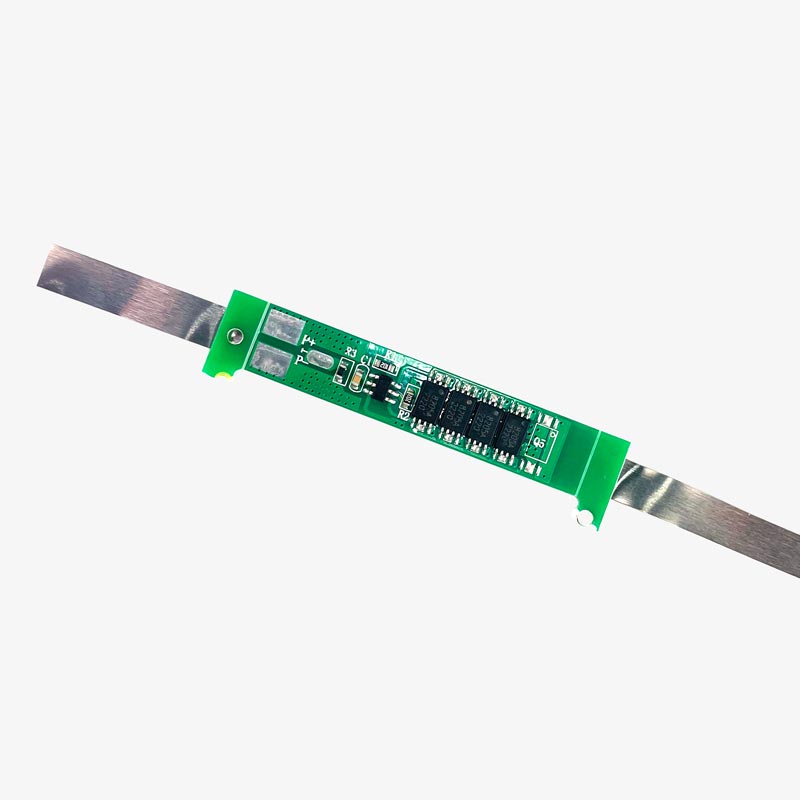

1S 6A LFP 32650 Lithium Battery Protection Board 3.2V BMS With Nickel Strip

Lithium Batteries are extremely sensitive and dangerous to use without a proper protection circuit. Here Quartz components present a BMS circuit that can be easily used and installed in an 32650 Li-ion Battery. Since this is rated for 1S battery, the operating voltage is 2.5V to 3.65V. It supports 6A of current. This is a Battery Management System circuit that monitors the charging and discharging profile of the battery. It is designed for more than 20,000 hours of operations to protect from over voltage, over current, over charge related conditions.

Features: -

1. High-accuracy when detecting voltage of the battery and the charge current.
2. Terminal of the BMS circuit uses Nickel Strip
3. Protects from Battery over voltage, over current, over charge etc.
4. Small Size board for easier fitment.

Specification: -

• Overcharge voltage: 3.65±0.05V
• Overcharge release voltage: 3.65±0.05V
• Over-discharge voltage:  2.1±0.1V
• Maximal continuous charging/discharge current:  6A – 7A

3.2V BMS 1S 6A LFP 32650 Applications:

• DIY Battery charging circuit
• Charge Controller
• Battery Protection

Package Contains

1x 3.2V BMS 1S 6A LFP 32650 Board with Nickel Strip
